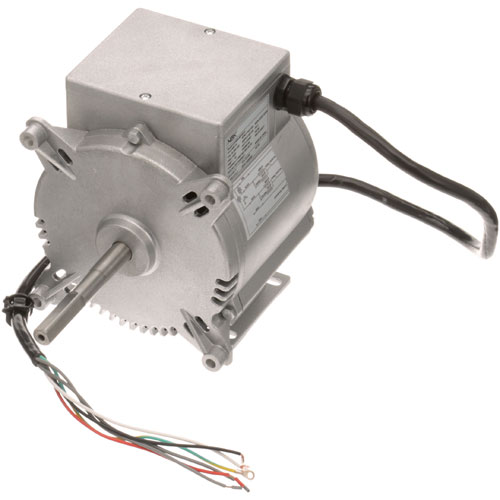

Blodgett 32244 Motor, 2-Speed, 208-240V , 1/3Hp, 1725/1140
Specifications:
- **Old Style** [ 200-230V, ][ 50/60 Hz ] [ 1/3Hp ] [1P]
- [2 Speed 1725/1140 RPM] [2.8-2.9/1.3-1.4A] [J56Z Frame]
- [ Rotation Cw (Facing Shaft Of Motor )]
- [ 5/8 X 3-1/4 Shaft ] [ 8-3/4 X 6-3/8 Mtg,Plate ]
- ////Blodgett Changed Motor Style - Different Than Original
- But Functions The Same. Includes Install Instructions////
- **New Style** [ 208-240 ] [ 60 Hz ] [ 1/2 Hp ] [ 1P ]
- [2 Speed 1710/1120 RPM] [2.7/1.8 A] [Rotation Cw (Looking
- From Back Of Motor)] [ 5/8 X 3-1/4 Shaft With Two Flats ]
- Blodgett Blower Wheel 9-3/4 Dia. # 26-1328 Or
- Blodgett Blower Wheel 10" # 26-4052
- Blodgett: Oven Ez/Efe, Fa/Gzl, Mark V, Zephaire E
Description
Dimensions:
- Weight: 4.93 lbs
- Length: 14 in
- Height: 8 in
- Width: 9 in
Air Circulation:
Drives the blower wheel to circulate heated air throughout the oven cavity. The motor's rotational output maintains continuous airflow around the cooking chamber, helping distribute heat across the cooking area. The 2-speed configuration allows the blower system to operate at different airflow levels according to the oven's control requirements.
Two-Speed Operation:
Provides two selectable motor speeds to support different airflow requirements during oven operation. The dual-speed configuration allows the blower assembly to adjust its rotational output according to the selected operating cycle.
Replacement Guidelines:
Replace the Convection Oven Blower Motor Kit if the motor fails to start, develops abnormal noise, operates inconsistently, or shows physical or electrical damage. The part number 32244, 1/3 HP rating, 2-speed configuration, and 208-240V voltage rating should be verified before replacement to ensure the correct blower motor kit is selected. Replace the motor kit if deterioration affects motor rotation, speed operation, electrical connection, airflow, or normal oven operation
Common Failure Symptoms:
- Reduced airflow inside the cooking chamber.
- Blower wheel operating slowly or intermittently.
- Unusual motor noise or vibration.
- Inconsistent air circulation.
- Motor failing to start.
- Loss of one or more operating speeds.
Equipment Compatibility:
The Blodgett 32244 Blower Motor Kit is designed for Blodgett convection ovens requiring this specific motor configuration. Verify the equipment model number, manufacturer part number, motor specifications, and electrical requirements before purchasing.
Technical Specifications:
Brand: Blodgett
Part Number: 32244
Component Name: Blower Motor Kit
Appliance Type: Convection Oven
Motor Power: 1/3HP
Speed Configuration: 2-Speed
Voltage Rating: 208-240V
Step1: Turn off and unplug the appliance to prevent electrical shock.
Step2: Remove the access panel to reach the existing motor.
Step3: Disconnect wiring from the old motor carefully.
Step4: Unscrew and remove the old motor from its mounting bracket.
Step5: Install the new motor securely and reconnect all wires.
Step6: Replace the access panel, restore power, and test motor operation.
-
What does a blower assembly include?
A blower assembly typically includes a motor, a fan or impeller,, and the housing or casing that surrounds them.
-
Why would I need to replace a blower assembly?
You might need to replace a blower assembly due to wear and tear over time, motor or component failures, decreased performance, or if it becomes inefficient or noisy beyond repair.
-
How can I contact your customer support?
To contact our customer support team Call us at 866 963-0907 or you can also mail us at contact@partsfe.com.
-
What maintenance is required for the Blodgett 32244 Motor?
Ensure the motor shaft spins freely and lubricate bearings with the recommended oil if needed. Confirm electrical connections are tight and insulation is intact. Monitor for unusual vibration or noise. Always disconnect power before servicing to prevent electrical hazards.
-
What are common issues with the Blodgett 32244 Motor?
- Motor not starting on either speed.
- Overheating during use.
- Unusual vibration noise.
- Reduced airflow from the fan attachment.
-
What is the Blodgett 32244 convection oven blower motor kit used for?
The Blodgett 32244 drives the blower assembly in a compatible convection oven, providing the mechanical movement needed for the oven's air-circulation system.
-
Why is the Blodgett 32244 supplied as a blower motor kit?
The kit designation indicates that the product is supplied as a grouped blower motor component set intended for the oven's blower system.
-
What does the 2-speed design mean on the Blodgett 32244?
The 2-speed design identifies a motor capable of operating at two distinct speeds for the convection oven's blower assembly.
-
What should buyers verify before selecting the Blodgett 32244?
Buyers should verify the convection oven model, blower configuration, and equipment parts information to ensure the kit matches the intended oven.
-
Does the Blodgett 32244 blower motor kit require regular maintenance?
Periodic inspection can help identify abnormal motor noise, inconsistent blower operation, or visible damage; any maintenance should follow the requirements for the compatible oven.
