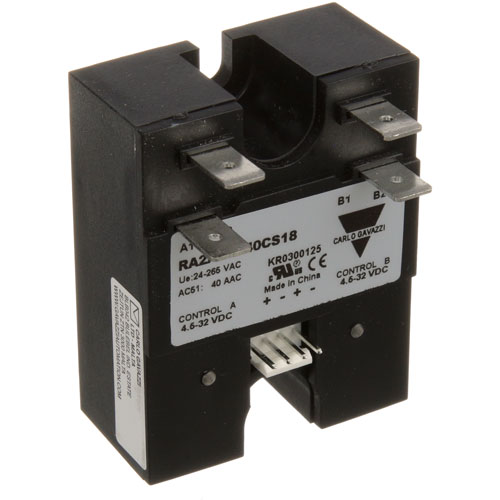

Turbochef NGC-3005 Oven Solid State Dual Voltage Relay 40A 120/240V

Electrical Switching:
Receives low-voltage control signals from the equipment control system and electronically switches power to connected electrical components. The solid-state relay controls high-current circuits without mechanical contacts, allowing connected loads to operate according to the programmed cooking sequence. Its electronic switching design supports reliable operation during repeated equipment cycles

Load Control:
Interfaces with the equipment's control circuit to coordinate when the connected electrical load receives power. The relay responds to the control signal and establishes the corresponding switching state, allowing the control system to manage the connected component according to the equipment's programmed sequence. This control function operates through the relay without requiring conventional mechanical contact movement.

Replacement Guidelines:
Replace the TurboChef NGC-3005 Solid State Dual Voltage Relay when electrical failure, physical damage, deterioration, or switching irregularities affect its intended control function. Inspect the relay and related electrical control circuits for conditions that could affect power switching or equipment operation. Replace the component when it can no longer maintain its intended function within the oven's electrical control system.

Common Failure Symptoms:

• Connected components fail to switch on or off.
• Equipment operates intermittently during normal use.
• Electrical loads remain continuously energized.
• Components do not respond to control signals.
• Inconsistent electrical switching during operating cycles.

Equipment Compatibility:
The TurboChef NGC-3005 Solid State Dual Voltage Relay is designed for compatible TurboChef commercial cooking equipment. Verify the equipment model number, manufacturer part number, voltage rating, current rating, and relay specifications before purchasing to ensure the correct application.

Technical Specifications:
Product Name: Solid State Relay
Brand: TurboChef
Part Number: NGC-3005
Current Rating: 40A
Voltage Rating: 120/240V

Step1: Disconnect the oven from power.

Step2: Open the control compartment.

Step3: Label and disconnect wiring.

Step4: Remove the old relay from the mounting plate.

Step5: Install a new relay and reconnect wiring.

Step6: Restore power and test functionality.

• What maintenance is required for the Turbochef NGC-3005 Dual Voltage Relay?

  Regularly inspect the relay for loose terminals, corrosion, or overheating marks. Clean dust using dry compressed air to prevent heat buildup. Disconnect power before servicing. Secure wiring and ensure ventilation to maintain efficient switching and prevent premature failure.

• What are the common issues with the Turbochef NGC-3005 Dual Voltage Relay?

  • Relay fails to switch properly
  • Overheating under continuous load
  • Intermittent electrical connections
  • Clicking or buzzing noises during operation.

• What is the TurboChef NGC-3005 Solid State Relay used for?

  The TurboChef NGC-3005 is a solid-state relay used to control electrical power within the equipment's control system.

• What makes the NGC-3005 a solid-state relay?

  The NGC-3005 uses solid-state switching rather than a conventional mechanical contact arrangement to control the connected electrical circuit.

• What role does a relay play in an equipment control system?

  A relay provides an electrical switching interface that allows the control system to regulate power to an associated load.

• What does the TurboChef NGC-3005 relay control within the equipment?

  The relay provides the switching interface that allows the equipment's control system to regulate electrical power supplied to an associated load.

• Why is the TurboChef NGC-3005 identified as a dual-voltage relay?

  The dual-voltage designation identifies the relay as a component designed for the specified voltage configuration used by the equipment's electrical control arrangement.
