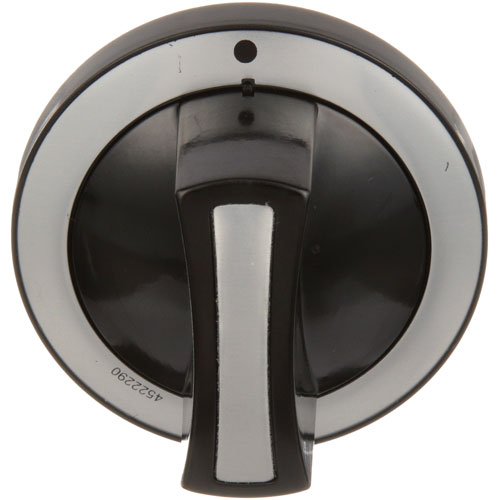

Garland 4524670 Range Open Burner Knob Kit

Control Input Transfer:
Transfers rotational movement from the operator through the knob to the connected valve stem. Turning the knob produces corresponding movement at the valve interface, allowing the burner control mechanism to respond to the selected position. Secure engagement between the knob and valve stem helps maintain consistent manual adjustment during repeated use.

Burner Setting Adjustment:
Provides the physical interface used to select different burner control positions. Rotation of the knob changes the connected valve position, allowing the operator to make manual adjustments according to the required cooking setting. Proper knob engagement helps provide controlled movement without unnecessary slipping or rotational play.

Replacement Guidelines:
Replace the Gas Range Open Burner Knob Kit if the knob is cracked, broken, worn, loose, deformed, or no longer provides proper burner control. The part number 4524670 should be verified before replacement to ensure the correct open burner knob kit is selected. Replace the knob kit if deterioration affects control positioning, secure fit, adjustment, or normal range operation.

Common Failure Symptoms:

• Knob becomes loose on the valve stem.
• Cracks, breaks, or deformation develop on the knob.
• Knob slips during manual rotation.
• Burner control position becomes difficult to select.
• Excessive rotational play affects manual adjustment.

Equipment Compatibility:
The Garland 4524670 Gas Range Open Burner Knob Kit is specified for equipment requiring this particular knob and valve interface configuration. Verify the equipment model, part number, valve stem configuration, and control arrangement before purchase.

Technical Specifications:
Brand: Garland
Part Number: 4524670
Product Name: Open Burner Knob Kit
Equipment Type: Commercial Gas Range

Step1: Turn off the gas supply and ensure all burners are completely cool before starting.

Step2: Pull the old burner knob straight off the valve stem on the front control panel.

Step3: Inspect the valve stem for debris or damage and clean if necessary.

Step4: Align the new knob from the kit with the valve stem slot.

Step5: Push the knob firmly onto the stem until fully seated.

Step6: Restore the gas supply and test the burner to confirm smooth operation.

• What maintenance is required for the Garland 4524670 Open Burner Knob Kit?

  Inspect knobs regularly for cracks, looseness, or heat damage to ensure safe operation. Clean with mild detergent to remove grease buildup that affects grip and visibility. Check alignment with the burner controls and replace worn components promptly to prevent gas-control issues.

• What are the common issues with the Garland 4524670 Open Burner Knob Kit?

  • Knobs are becoming loose or wobbly.
  • Knob becoming loose or slipping during operation.
  • Cracks or breakage from frequent use.
  • Misalignment affecting burner ignition.

• What is a gas range open burner knob kit used for?

  A gas range open burner knob kit provides the operator interface for adjusting an open burner. It is part of the burner control arrangement on the gas range.

• What does the open burner designation indicate?

  The open burner designation identifies the type of burner associated with the knob kit. This distinguishes it from control knobs intended for other heating components.

• Why is the Garland 4524670 supplied as a knob kit?

  The kit designation indicates that the product is provided as a group of knob-related components for the specified control application. It is different from a single standalone knob.

• How does a burner knob relate to the gas range control system?

  The knob serves as the physical interface between the operator and the burner's control mechanism. Adjusting the knob changes the selected burner setting through that control arrangement.

• What can indicate that an open burner knob needs attention?

  Cracking, looseness, or visible damage can indicate a change in the knob's condition. Difficulty engaging the associated control can also indicate that the knob assembly should be evaluated
