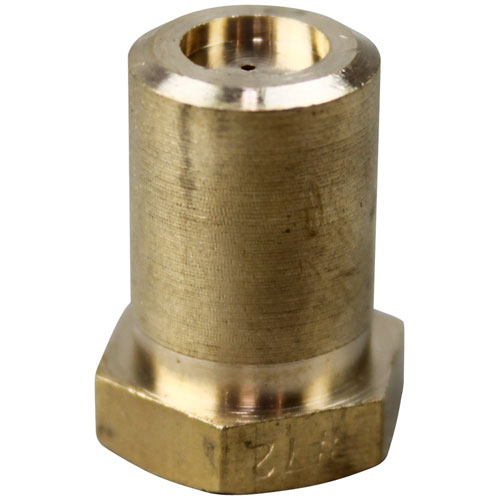

Southbend 1195500 Brass Hood Orifice #70 3/8"-27 X 1/2" High

SKU: 1195500 1-1195500 Brand:
Southbend
Availability:
In Stock
(0)
$6.02
Have a Question? +1 (866) 863-0907

Specifications:

  • Brass Hood Orifice,
  • 3/8"-27 X 1/2" High X #72, (Lp)
  • Can Be Drilled Out For Other Size.
  • Suggest #56 To #53 For Natural Gas.
  • Royal Range

Description

The Southbend 1195500 Brass Hood Orifice #70 3/8 inch-27 x 1/2 inch regulates the supply of gas to a burner by limiting the supply of fuel through a precisely sized opening prior to entering the combustion chamber and assists in setting the appropriate flame properties in that application. The gas flows through the calibrated passage of the orifice that controls the volume of delivery at a certain pressure. It fits in the gas train at the burner or hood assembly of compatible equipment where the 3/8"-27 inlet and 1/2 height specification coincide.

Dimensions:

  • Weight: 0.02 lbs
  • Length: 0.75 in
  • Height: 0.75 in
  • Width: 0.5 in

BAKERS PRIDE:

2A-R3023A R3023X

GARLAND:

1087957 GL1087957

ROYAL RANGE:

1122-72 ROY1122-72

SOUTHBEND:

1006400 1008700

Step1: Turn off gas supply and allow appliance to cool completely before starting.

Step2: Remove hood panel and locate existing orifice assembly.

Step3: Unscrew old orifice carefully using proper tools.

Step4: Install new orifice and hand-tighten.

Step5: Secure with tool and avoid overtightening to prevent damage.

Step6: Reassemble hood and restore gas supply.

Step7: Test for leaks using proper solution and check all connections before use.

  • What maintenance is required for the Southbend 1195500 Hood Orifice?

    Keep orifice clean and free of grease buildup to maintain proper gas flow. Inspect regularly for blockages and corrosion affecting flame quality. Ensure secure fit and clean surrounding burner area during service.

  • What are common issues with the Southbend 1195500 Hood Orifice?

    • Clogging from grease or food particles affecting gas flow.
    • Uneven flame or weak ignition due to partial blockage.
    • Corrosion or wear causing inconsistent burner performance.
    • Improper fit leading to gas leakage or instability.
