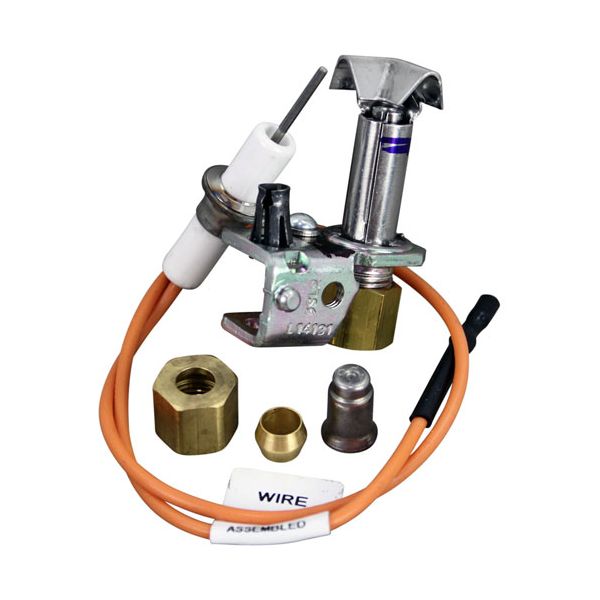

American Range A11132 Oven Natural Gas Spark Igniter Pilot Assembly

Be the first to review this product
Special Price $48.51 Regular Price $77.00
In stock
SKU
A11132
Add to Wish List
Oven Parts, Oven Pilot Lights,
Manufacturer:
The American Range A11132 Oven Natural Gas Spark Igniter Pilot Assembly is used to ignite your oven’s natural gas. It consists of a spark igniter with a 12 inches wire, round push-on end, 3/16 inches CCT nut and sleeve and orifice for natural gas with .18 inches size. The assembly is also available with LP and natural gas orifice 26-1554 & 26-1555. Designed to be used with the Spark Ignition Module SM2 44-1009, it is suitable for use in ovens in the American Range and Imperial IR convection oven line. This igniter offers improved flame initiation adding to greater cooking convenience and security.

Dimensions

  • Length: 2.5 In
  • Width: 1.5 In
  • Height: 3.5 In
  • Weight: 0.2 lbs
https://partsfe.com/media/catalog/product/a/m/american-range-a11132-oven-natural-gas-spark-igniter-pilot-assembly-45218-2.jpg

Product Notes

  • Spark Ign Oven Pilot Nat, Igniter W/12" Wire W/ Round
  • Push On End, 3/16" Cct Nut & Sleeve, Orifice Is .18" Nat
  • Includes Lp Orifice # 26-1554
  • Includes Nat Orifice # 26-1555
  • Use Spark Ignition Module "Sm2", # 44-1009
  • American Range Oven Model?
  • Dynamic Cooking Systems
  • Oven Range - Oven Section.
  • Imperial
  • Oven Series: Ir W/Convection Oven.
AMERICAN RANGE:
10413, A11104, A11132, A11301, AMR10413, AMRA11104
IMPERIAL:
1119, 1120, 1120LP, 1120NAT, IMP1119, IMP1120, IMP1120LP, IMP1120NAT
ROYAL RANGE:
Reviews
Write Your Own Review
You're reviewing:American Range A11132 Oven Natural Gas Spark Igniter Pilot Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the American A11132 Spark Igniter Pilot Assembly?

Inspect the oven spark igniter electrode regularly for carbon buildup or grease and clean it gently to ensure proper ignition. Check gas flow and pilot alignment to maintain steady flame performance. Verify wiring connections remain secure and free from heat damage. Routine inspection ensures safe and consistent oven ignition.

What are common issues with the American A11132 Spark Igniter Pilot Assembly?

  • Weak or no spark due to worn or dirty igniter electrode.
  • Gas flow restriction causing delayed or failed ignition.
  • Loose or damaged wiring leading to intermittent sparking.
  • Misaligned pilot assembly resulting in unstable flame ignition.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas and electrical supply; let oven cool completely before starting.

Step2: Remove oven access panel carefully.

Step3: Disconnect old igniter pilot assembly and note wiring position.

Step4: Install new assembly and secure mounting screws.

Step5: Reconnect wiring and gas line if applicable securely.

Step6: Refit panel, restore power and gas supply firmly.

Step7: Test ignition and check for leaks using soap solution.
