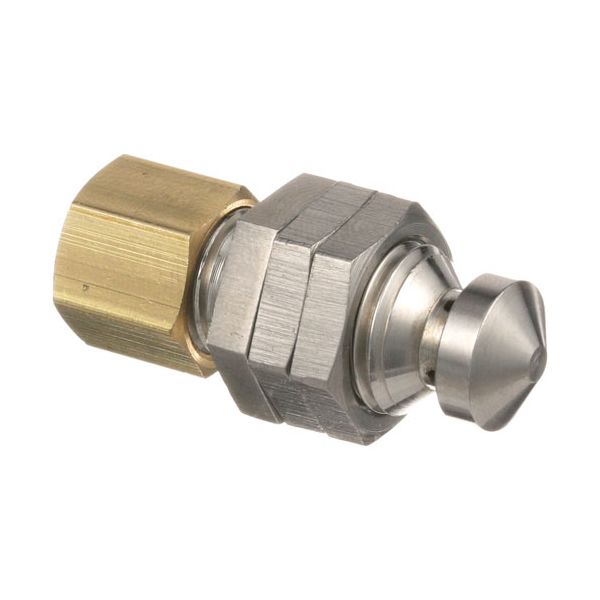

Jade Range 4611200000 Range Pilot Head Stainless Steel 1/4"
Special Price $32.77 Regular Price $42.57
In stock
SKU
4611200000
Manufacturer:
The Jade Range 4611200000 Range Pilot Head Stainless Steel 1/4" regulates pilot flame through a fixed orifice to keep ignition ready. The flame emitted is kept active in order to start burners when cooking operations are on. It is placed next to the burner assembly in the range structure. It was made with a connection and can be attached to normal pilot tubing. The stainless steel frame allows it to be compatible with the current mounting configurations. Its placement provides adequate flame positioning in relation to burner ports to provide constant ignition when using the equipment.
Dimensions
- Length: 1.5 In
- Width: 0.75 In
- Height: 1 In
- Weight: 0.1 lbs
Product Notes
- Ss Pilot Head # 51-1036, 1/4" Cct. W/ Nut & Ferrule.
- Can Use With:
- 1/4" Cct, 36" Long, Copper Clad Steel Pilot Tubing,
- Can Bend To Shape, # 26-1590
- Must Order Compression Nuts And Ferrules Seperately.
- 1/4" Cct Nut, Each, # 26-1369
- 1/4" Cct Nut, 10/Pk, # 26-3651
- 1/4" Cct Ferrule, Each, # 26-1375
- 1/4" Cct Ferrule, 20/Pk, # 26-3650
