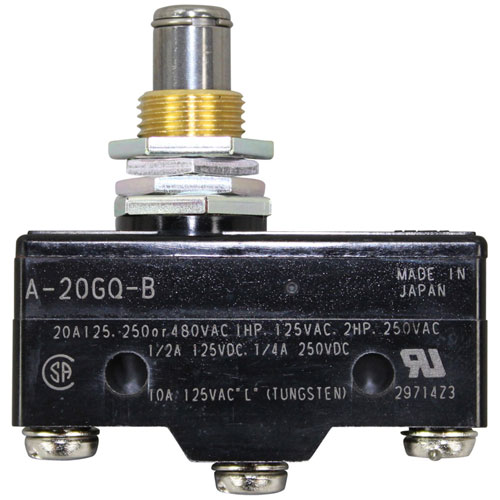

Pitco PTP5047170 Fryer SPDT Micro Push Button Switch 20 AMP 125/250/480V

SKU: PTP5047170 1-PTP5047170 Brand:
Pitco
Availability:
In Stock
(0)
$228.80 Price reduced from $371.00
Save $142.20
Have a Question? +1 (866) 863-0907

Specifications:

  • Micro Push Button Momentary On/Off Switch, Spdt
  • 20 Amp, 125/250/480 Volt, Mount Hole Ctrs 1"
  • Anets Dough Roller Mdr-4, Mdr-6C.
  • Bakers Pride Oven Series: X300, X500, X700.
  • Beverage Air
  • Duke Convection Oven E101, 59-1Ev (1/2 Size)
  • Garland Oven G286Rc, Sdg-1 Series: Bco, Eco, Ico, Mco,
  • 40-50. After S/N 39369: Te, Tg, Tte, Ttg.
  • Imperial Oven Icv, Icvd, Icvg
  • Market Forge Skillet Series: 1500/ Oven Series: 2500, 2700.
  • Steamer 3500. Series: Cte(3005,3010,3015,3550).
  • Pitco Fryer Electric Units Ending W/Suffix "C", "Cs"
  • Or "S":E7, E12, E14, E18, E24, E34.
  • Us Range Oven Sdg-(1,2). Series: Cg.
  • Vulcan G30-0

Description

Pitco PTP5047170 Fryer SPDT Micro Push Button Switch is a high quality, momentary on/off switch for heavy duty kitchen equipment. With high powered at 20 amps, and compatible with 125V, 250V and 480V this switch is versatile to be used in Fryers, Ovens and Steamers of brands like Anets, Bakers Pride, Vulcan etc. With its compact design, a 1 inch mounting hole center, it is easy to install and can be adapted to any setup. Micro push button mechanism ensures precise control, quick activation and deactivation of equipment is essential in fast paced kitchen environment.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 2 in
  • Height: 2 in
  • Width: 0.7 in

ANETS:

P9100-16

BAKERS PRIDE:

BKPM1102A M1102A

BEVERAGE AIR:

502-058 502-058A BEV502-058

DUKE:

153114 DUK153114

GARLAND:

1019600 227152 G03481-1 GL1019600

HOBART:

00-411496-000F5 411496-000F5 411496-F5

IMPERIAL:

1355 IMP1355

MARKET FORGE:

10-6859 S10-6859

MERCO:

19378SP MER19378SP

MIDDLEBY MARSHALL:

P9100-16

PITCO:

P5047170 P9100-16

TRI-STAR:

AS-340289

VULCAN HART:

00-411496-000F5 411496-000F5 411496-F5

Step1: Power off fryer and disconnect electrical supply to prevent shock.

Step2: Remove control panel access cover carefully using proper tools.

Step3: Disconnect old micro push button switch, noting wiring positions for correct reinstallation.

Step4: Install replacement switch and securely reconnect terminals as labeled.

Step5: Restore power, test fryer operation, ensure switch responds correctly before use.

Step6: Verify all panels secured and ensure no exposed wiring; if malfunction occurs, disconnect immediately.

  • What maintenance is required for the Pitco PTP5047170 Push Button Switch?

    Regularly inspect the fryer switch for smooth actuation and ensure it returns properly after being pressed. Clean surrounding areas to prevent grease or debris from affecting movement. Check electrical terminals for tightness and signs of overheating or corrosion. Replace the switch if response becomes inconsistent or actuation feels stiff.

  • What are common issues with the Pitco PTP5047170 Push Button Switch?

    • Failure to actuate or intermittent switching response.
    • Electrical arcing or contact wear leading to inaccurate operation.
    • Sticking button caused by grease or debris buildup.
    • Fryer loose wiring connections causing intermittent fryer control issues.
