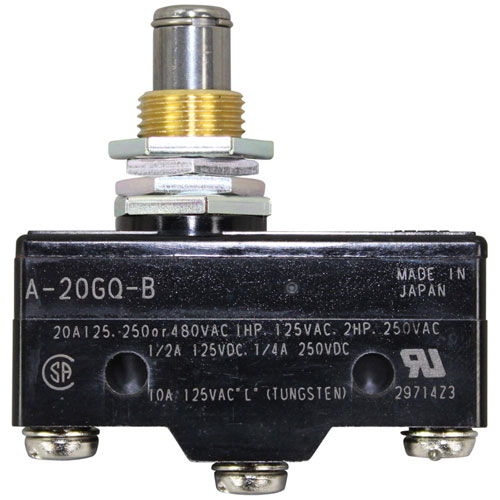

Imperial 1355 Convection Oven Plunger Style Door Microswitch

SKU: 1355 1-1355 Brand:
Imperial
Availability:
In Stock
(1)
$228.80 Price reduced from $371.00
Save $142.20
Have a Question? +1 (866) 863-0907

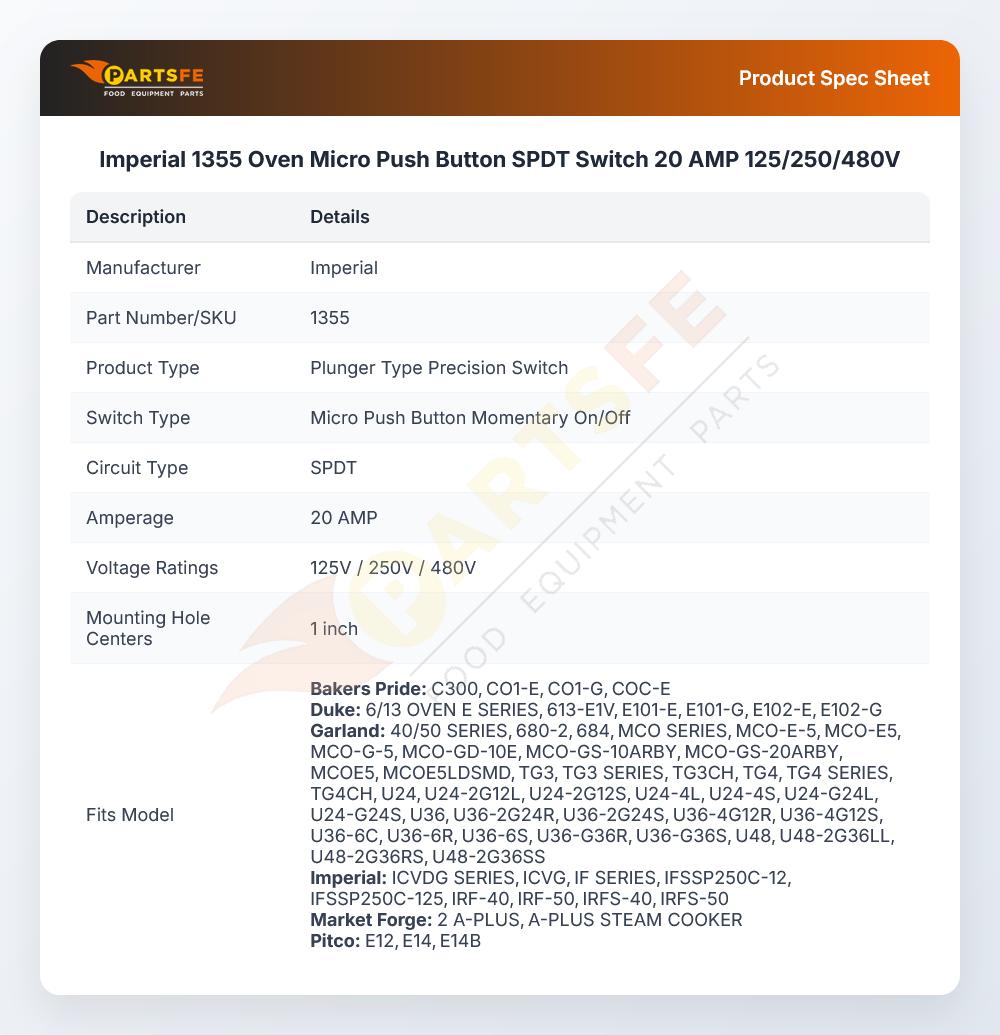

Specifications:

  • Micro Push Button Momentary On/Off Switch, Spdt
  • 20 Amp, 125/250/480 Volt, Mount Hole Ctrs 1"
  • Anets Dough Roller Mdr-4, Mdr-6C.
  • Bakers Pride Oven Series: X300, X500, X700.
  • Beverage Air
  • Duke Convection Oven E101, 59-1Ev (1/2 Size)
  • Garland Oven G286Rc, Sdg-1 Series: Bco, Eco, Ico, Mco,
  • 40-50. After S/N 39369: Te, Tg, Tte, Ttg.
  • Imperial Oven Icv, Icvd, Icvg
  • Market Forge Skillet Series: 1500/ Oven Series: 2500, 2700.
  • Steamer 3500. Series: Cte(3005,3010,3015,3550).
  • Pitco Fryer Electric Units Ending W/Suffix "C", "Cs"
  • Or "S":E7, E12, E14, E18, E24, E34.
  • Us Range Oven Sdg-(1,2). Series: Cg.
  • Vulcan G30-0

Description

The Imperial 1355 Plunger Style Door Microswitch operates by closing or breaking the electrical connection of the oven, when the door is opened or closed and makes sure that the related components work as intended. It operates by a spring-loaded plunger system which reacts to the movement of the door so the switch can control the flow of power accurately. This microswitch is normally placed close to the frame of the oven door where it can directly respond, to the movement of the door to control internal operations. It is small in size and can be installed into the existing electrical system of the appliance without any difficulty to other parts.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 2 in
  • Height: 2 in
  • Width: 0.7 in

ANETS:

P9100-16

BAKERS PRIDE:

BKPM1102A M1102A

BEVERAGE AIR:

502-058 502-058A BEV502-058

DUKE:

153114 DUK153114

GARLAND:

1019600 227152 G03481-1 GL1019600

HOBART:

00-411496-000F5 411496-000F5 411496-F5

IMPERIAL:

IMP1355

MARKET FORGE:

10-6859 S10-6859

MERCO:

19378SP MER19378SP

MIDDLEBY MARSHALL:

P9100-16

PITCO:

P5047170 P9100-16 PTP5047170

TRI-STAR:

AS-340289

VULCAN HART:

00-411496-000F5 411496-000F5 411496-F5

Step1: Ensure the oven is fully powered down before starting the replacement.

Step2: Access the microswitch by removing the door panel.

Step3: Detach the connected wires carefully.

Step4: Unscrew and remove the faulty switch.

Step5: Mount the new microswitch in place.

Step6: Reconnect wiring as originally configured.

Step7: Reassemble the panel and restore power.

  • What maintenance is required for the Imperial 1355 Door Microswitch?

    Regularly inspect the oven microswitch for dust, debris, or loose connections. Ensure the actuator moves freely and the electrical contacts are clean. Proper maintenance prevents misfires, ensures accurate operation, and reduces the risk of electrical shorts or system errors.

  • What are the common issues with the Imperial 1355 Door Microswitch?

    • Sticking or unresponsive actuator.
    • Intermittent electrical contact.
    • Corrosion on terminals.
    • Misalignment is causing false triggering.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Easy Integration
    Barrett —

    Microswitch senses door position accurately improving oven control.
