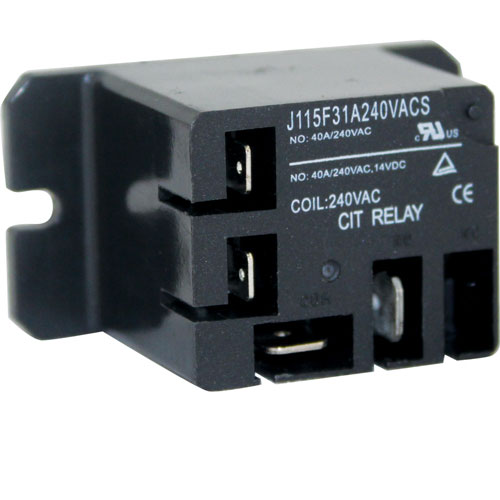

Bloomfield 2E-307334 Relay

SKU: 2E-307334 1-2E-307334 Brand:
Bloomfield
Availability:
In Stock
(0)
$19.07 Price reduced from $37.73
Save $18.66
Have a Question? +1 (866) 863-0907

Specifications:

  • Relay, 240Vac Coil, (4) Term, N/O
  • Star Wells Fryer F49

Description

The Bloomfield 2E-307334 Relay operates by closing, or opening internal electrical contacts with the application of a particular voltage with the support of an electromagnetic coil. This mechanical action enables a low-power signal to regulate a far greater current flow in the circuitry of the appliance. The component is attached to the control board, or internal chassis in food service equipment. This electromechanical switch directs the flow of power to the heating component, or motor assembly to make sure the machine goes through its operational stages, as directed by the main controller.

Dimensions:

  • Weight: 0.07 lbs
  • Length: 2 in
  • Height: 1.5 in
  • Width: 1.5 in

APW WYOTT:

1475020 2E-1475020

STAR MFG:

507334 WS-507334

Step1: Disconnect power completely and check zero voltage for safety before opening equipment.

Step2: Remove control panel to access the existing relay placed.

Step3: Label and disconnect all wire terminals from the old relay.

Step4: Remove mounting hardware and extract the faulty relay.

Step5: Install new relay, secure firmly, and reconnect wires to matching terminals.

Step6: Restore power and test switching operation under load to confirm proper operation.

  • What maintenance is required for the Bloomfield 2E-307334 Relay?

    Inspect the relay regularly for signs of overheating, pitting, or contact damaged caused by electrical load cycling. Ensure all terminal connections remain tight and free of corrosion or carbon buildup. Keep the surrounding control area clean and dry to prevent moisture-related electrical faults.

  • What are common issues with the Bloomfield 2E-307334 Relay?

    • Coil burnout leading to complete loss of operation.
    • Loose or corroded terminals disrupting electrical flow.
    • Overheating under continuous load conditions.
    • Chattering or inconsistent activation during voltage fluctuations.
