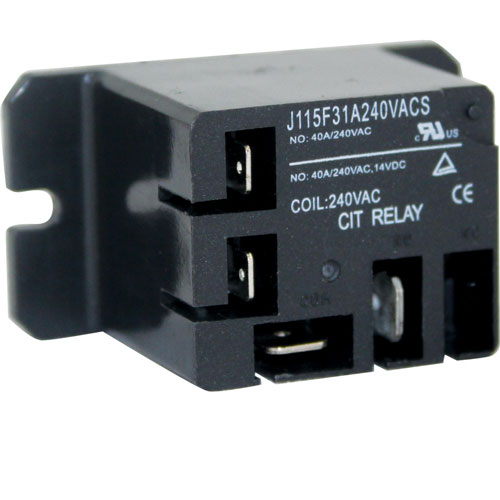

APW 1475020 Thermostat Relay

SKU: 1475020 1-1475020 Brand:
APW
Availability:
In Stock
(0)
$19.07 Price reduced from $37.73
Save $18.66
Have a Question? +1 (866) 863-0907

Specifications:

  • Relay, 240Vac Coil, (4) Term, N/O
  • Star Wells Fryer F49

Description

The APW 1475020 Thermostat Relay operates under the concept of observing the temperature changes with the support of a sensor to activate an internal switching mechanism. This part is installed in the internal control housing of commercial kitchen appliance units to stabilize the condition. The unit has standard spade terminals to connect it with wiring and a small frame that is suitable for high-heat conditions. It provides uniformity in running industrial kitchen equipment as the main logic gate to temperature-sensitive cycles.

Dimensions:

  • Weight: 0.07 lbs
  • Length: 2 in
  • Height: 1.5 in
  • Width: 1.5 in

APW WYOTT:

2E-1475020

BLOOMFIELD:

2E-307334

STAR MFG:

2E-307334 507334 WS-507334

Step1: Disconnect power supply and check zero voltage before handling electrical components.

Step2: Remove access panel to locate the existing old relay and note wiring positions.

Step3: Disconnect the four terminal connections, labeling wires for correct reinstallation.

Step4: Mount the new relay securely and reconnect terminals to matching points.

Step5: Restore power, test control circuit operation, and ensure relay connects smoothly without overheating or arcing.

  • What maintenance is required for the APW 1475020 Relay?

    Regularly inspect the relay terminals for signs of carbon buildup or corrosion to ensure stable electrical conductivity. Verify that all four terminal connections remain tight to prevent arcing and overheating during operation. Always disconnect the power source before performing inspections to ensure technician safety.

  • What are common issues with the APW 1475020 Relay?

    • Pitting or welding of internal contact points.
    • Coil failure resulting in a failure to switch.
    • Audible humming or buzzing due to mechanical vibration.
    • Intermittent electrical continuity caused by burnt terminal surfaces.
