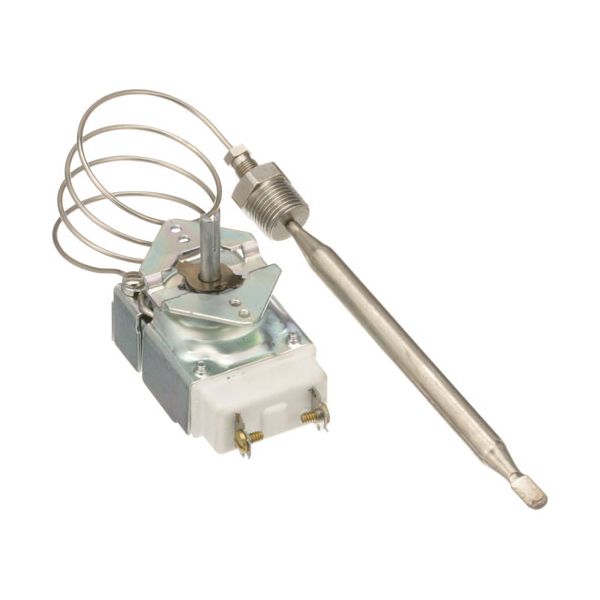

Regulates the operating temperature of compatible commercial cooking equipment by responding to temperature changes and controlling the connected heating circuit. The Adcraft RX-2-24 Thermostat is configured with a 3/8" × 6" sensing bulb and a 24-inch capillary, allowing the sensing element to be positioned at the designated temperature-monitoring location while the control mechanism remains connected to the equipment's control assembly. Its 200°F–400°F range supports applications requiring adjustable temperature control within these specified limits.
Heating Circuit Switching:
Changes the electrical state of the thermostat contacts in response to sensed temperature conditions. Depending on the selected setting and measured temperature, the contacts can interrupt or restore the heating circuit, allowing the connected heating system to cycle during normal equipment operation.
Temperature Sensing:
Uses a nickel sensing bulb to detect changes in operating temperature within the applicable cooking equipment. The sensing element responds to temperature changes and provides the corresponding temperature information to the thermostat control mechanism. This sensing response allows the thermostat to monitor operating conditions and support temperature regulation.
Replacement Guidelines:
Replacing the Thermostat is appropriate if it is damaged, malfunctioning, excessively worn, or otherwise deteriorated. Verify the ADCRAFT part number RX-2-24 and the complete equipment model number before replacement. Replace the thermostat if deterioration affects temperature regulation, temperature response, control operation, or normal equipment performance.
Common Failure Symptoms:
- Equipment operates hotter or cooler than the selected setting.
- Temperature regulation becomes inconsistent.
- Heating cycles occur at incorrect temperatures.
- Equipment has difficulty maintaining the selected temperature.
- Temperature adjustment produces unexpected results.
- Sensing bulb or capillary shows physical damage.
Equipment Compatibility:
The ADCRAFT RX-2-24 Thermostat is intended for applicable commercial fryer equipment that specifies part number RX-2-24. Verify the complete fryer model number, thermostat specifications, and manufacturer's parts documentation before purchasing to help confirm the correct application. The RX-2-24 is listed for applicable Adcraft and other compatible fryer configurations.
Technical Specifications:
Brand: Adcraft
Part Number: RX-2-24
Product Name: Thermostat
Temperature Range: 200°F–400°F
Sensing Bulb: 3/8" X 6"
Capillary Length: 24"
Model/Series: RX
