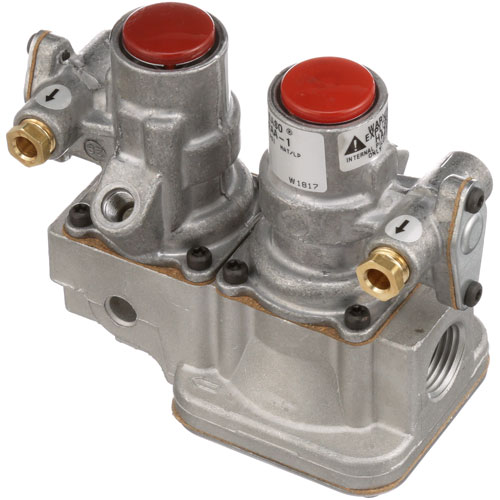

Southbend 1182567 Range Dual Baso Gas Safety Valve 1/2" FPT 4-1/4"

Pilot Safety Control:
Monitors the condition required to maintain safe burner operation through the pilot safety circuit. When the pilot flame is properly established, the safety mechanism allows the main gas passage to remain open. If the pilot condition is interrupted, the valve responds by stopping gas flow to the burner system, helping prevent continued fuel delivery without an established ignition source.

Gas Flow Interruption:
Provides an automatic gas shutoff response when the required pilot safety condition is no longer maintained. This interruption helps prevent uncontrolled fuel delivery and supports the safety sequence of the griddle's burner system.

Replacement Guidelines:
Replace the Griddle Dual BASO Safety Valve if it is damaged, cracked, corroded, leaking, or no longer provides proper gas-flow and safety control. The part number 1182567, Dual BASO configuration, and 1/2" NAT/LP connections should be verified before replacement to ensure the correct safety valve is selected. Replace the valve if deterioration affects gas flow, connection integrity, sealing, safety control, or normal griddle operation.

Common Failure Symptoms:

• Main burners fail to receive gas after pilot establishment.
• Pilot flame fails to maintain the safety valve condition.
• Gas flow stops unexpectedly.
• Valve operation becomes inconsistent.
• Gas leakage is detected around the valve or connections.
• Visible damage or deterioration of the valve assembly.

Equipment Compatibility:
The Pitco 60203001-CL Fryer Natural Gas Safety Valve 1.2" 4.0" WC 24V is an OEM component designed for Pitco commercial fryers using the corresponding natural gas safety-valve arrangement. Verify the fryer model, gas configuration, pressure requirements, and electrical control arrangement before selecting the component.

Technical Specifications:
Part Number: 60203001-CL
Brand: Pitco
Component Type: Safety Valve
Gas Type: Natural Gas
Size: 1.2"
Pressure: 4.0" WC
Voltage: 24V
Equipment Type: Commercial Fryer

Step1: Turn off gas supply before starting to prevent leaks or fire hazards.

Step2: Remove old valve carefully using a wrench, keeping connections intact.

Step3: Inspect threads and apply gas-rated thread sealant or tape.

Step4: Install new valve, tightening securely but avoid overtightening.

Step5: Reconnect gas line and check for leaks with a soap solution.

Step6: Test appliance to ensure proper operation before regular use.

• Are there any specific requirements for the installation location of a gas safety valve in a kitchen appliance?

  Installation requirements may vary by appliance type and manufacturer. Always follow the manufacturer's guidelines and consult with a professional installer for precise placement.

• Do gas safety valves require regular maintenance, and can I perform it myself?

  Gas safety valves are generally low-maintenance. Routine inspections are recommended, but any maintenance or repairs should be conducted by qualified technicians

• How can I ensure that the gas safety valve in my kitchen appliance continues to function optimally over time?

  Regular professional inspections and maintenance are essential for ensuring the ongoing performance of your gas safety valve.

• What maintenance is required for the Southbend 1182567 Safety Valve?

  Periodically inspect the valve for leaks, corrosion, or debris buildup, which can affect gas flow and safety. Clean connections gently and test operation according to the manufacturer’s instructions. Always shut off the gas supply before servicing to prevent accidents.

• What are common issues with the Southbend 1182567 Safety Valve?

  • Gas leaks from worn seals
  • Valve sticking or failing to open
  • Inconsistent gas flow
  • Corrosion affecting performance.

• What does the Southbend 1182567 safety valve do?

  It manages gas delivery to the burner system according to the pilot safety condition, allowing burner operation when the required pilot condition is established and interrupting gas flow when that condition is lost.

• How does the valve respond when the pilot flame is lost?

  The safety mechanism interrupts gas flow to the burner system, preventing continued fuel delivery when the required pilot condition is not maintained.

• What does the dual BASO configuration provide?

  It provides a dual safety-valve arrangement for applications requiring the specified pilot and burner gas-control configuration.

• What symptoms can indicate a faulty safety valve?

  Failure of the main burner to receive gas, unexpected gas-flow interruption, inconsistent valve operation, or leakage around the valve may indicate a problem.

• Why is pilot safety control important in a gas griddle?

  It helps ensure that gas is supplied to the main burner only when the required pilot safety condition is established.
