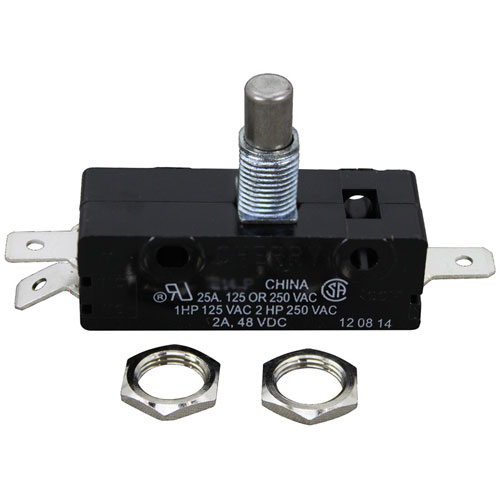

Southbend 1175300 Range Door Switch 125/250V 15 Amp

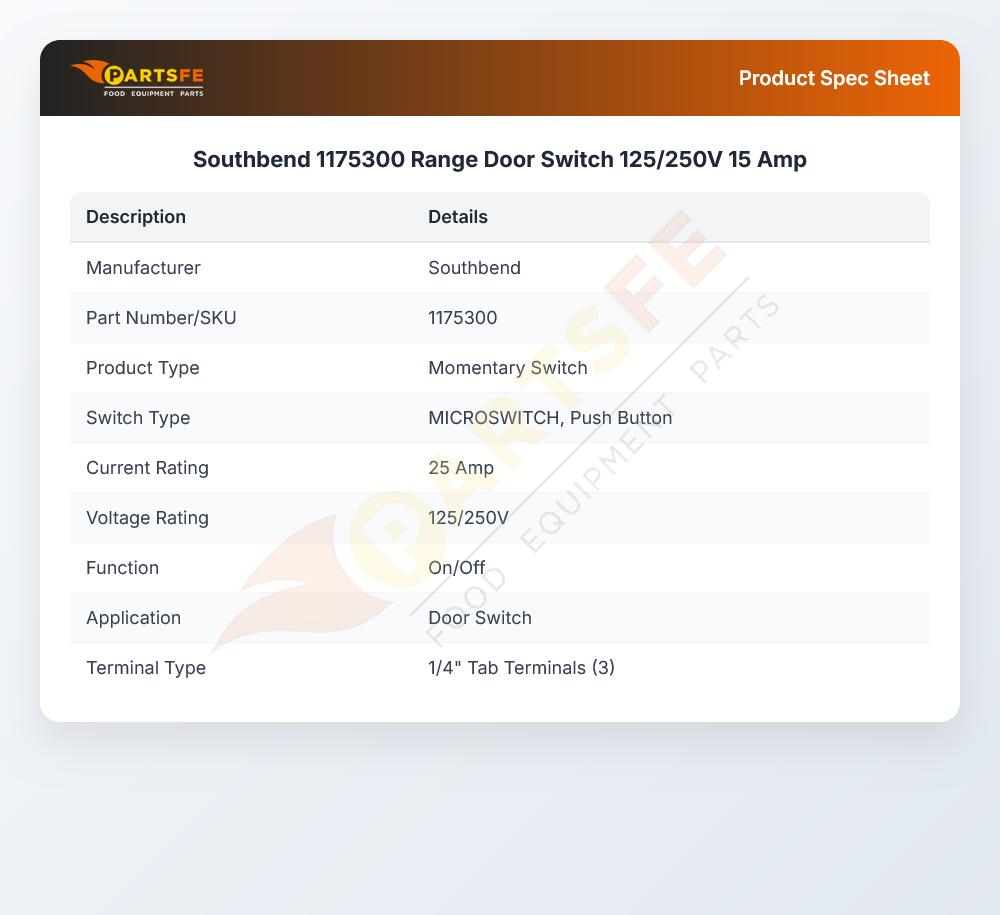

Specifications:
- Microswitch, Push Butten, 25 Amp, 125/250V
- Momentary On/Off Door Switch.
- 1/4" Tab Term (3)
- Southbend Oven Series: Eb, Es, Gb, Gs.
Description
Dimensions:
- Weight: 0.05 lbs
- Length: 2.5 in
- Height: 0.5 in
- Width: 1 in
Step1: Turn off range power at breaker and confirm supply is fully de-energized before starting.
Step2: Remove the range access panel to reach door switch assembly near hinge area.
Step3: Label and disconnect existing wires from old switch terminals safely.
Step4: Install new door switch, securing it in correct alignment with door actuator.
Step5: Reconnect wiring, reinstall panel, restore power, and test door-activated operation for safe switching performance.
-
What maintenance is required for the Southbend 1175300 Door Switch?
Inspect the range door switch regularly for grease, heat damage, or misalignment affecting actuation. Clean surrounding mounting areas to prevent debris interference. Check wiring terminals for tightness and corrosion. Routine testing ensures consistent electrical response and safe range operation.
-
What are common issues with the Southbend 1175300 Door Switch ?
- Switch not activating due to misaligned range door mechanism.
- Intermittent electrical contact from worn internal components.
- Loose or damaged wiring causing power interruption.
- Heat exposure leading to switch housing deformation or failure.
