Southbend 9-3213 Unimax Door Switch

SKU: 9-3213 1-9-3213 Brand:
Southbend
Availability:
In Stock
(0)
$30.56 Price reduced from $32.34
Save $1.78
Have a Question? +1 (866) 863-0907

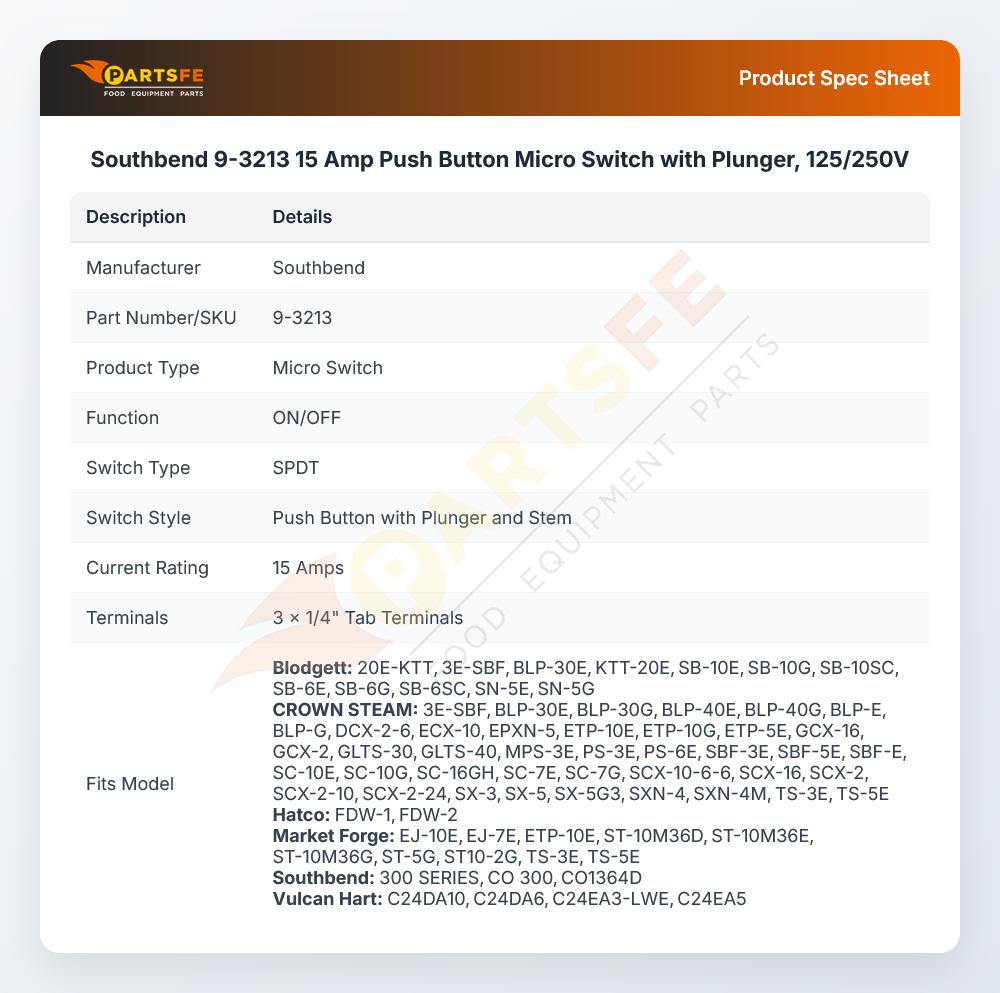

Specifications:

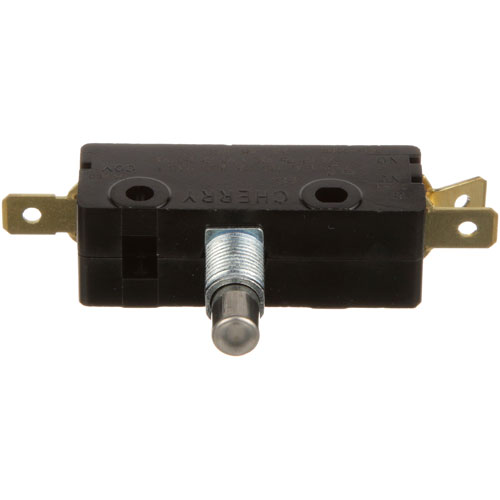

  • Push Button Micro Switch, 125/250V, 15 Amp, On/Off,
  • 3Ea 1/4" Tab Terminals
  • Plunger W/Stem
  • Does Not Come With Hex Nut # 26-3157 (3/8"-32)
  • Use Hex Nut 3/8-32Thd # 26-3157
  • Hobart
  • Cvulcan Vhx, Vhx

Description

The Southbend 9-3213 Unimax Door Switch works through a series of electrical contacts that are completed or broken depending on the physical location of the door of the appliance. When the gate is closed, it triggers the internal connection mechanism to inform the operator board that it is to start steaming cycles. This is a part that is fitted directly in the entrance frame assembly of compatible commercial heating units. This is an interlock, and this prevents the working of the high-temperature steam operation when the cabinet is open.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 2.5 in
  • Height: 1.5 in
  • Width: 0.7 in

BLODGETT:

42137

CROWN STEAM:

9208-1

HATCO:

02-19-004 02-19-004-00 02.19.004 02.19.004.00 HTR02-19-004 HTR02-19-004-00 HTR02.19.004 HTR02.19.004.00 R02-19-004 R02-19-004-00 R02.19.004 R02.19.004.00

HOBART:

00-842049 842049

MARKET FORGE:

97-6154 97-6191

SOUTHBEND:

1142000 1167337 1168300 1172768 1175300 6405 PE129 SOU1142000 SOU1167337 SOU1168300 SOU1172768 SOU1175300 SOU6405 SOUPE129

VULCAN HART:

00-842049 842049 843811 VH842049 VH843811

Step1: Turn off electrical power and confirm zero voltage for safety.

Step2: Remove access panel and note existing wiring layout.

Step3: Disconnect faulty old micro switch and note terminal positions.

Step4: Mount new switch in bracket, ensuring plunger alignment.

Step5: Reconnect wires to common, terminals as labeled.

Step6: Secure wiring, close panel, restore power, test operation to ensure proper function.

  • What maintenance is required for the Southbend 9-3213 Push Button Micro Switch with Plunger?

    Inspect the micro switch regularly for wear on the plunger and ensure smooth, responsive actuation. Keep the switch area clean and free from grease or debris buildup. Tighten electrical connections to prevent intermittent contact. Periodic testing ensures consistent performance and accurate circuit switching under load.

  • What are common issues with the Southbend 9-3213 Push Button Micro Switch with Plunger?

    • Plunger sticking or failing to return properly after actuation.
    • Intermittent electrical contact due to worn internal contacts.
    • Loose wiring terminals causing signal interruption.
    • Reduced responsiveness from contamination or mechanical wear.
