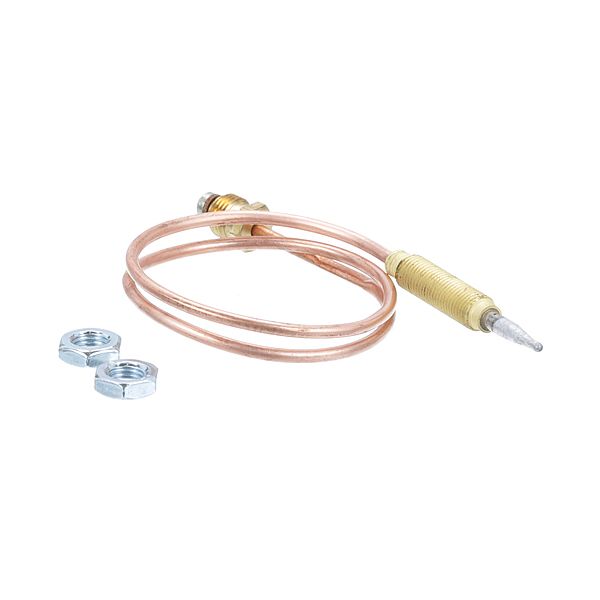

Sensing burner flame temperature within a commercial convection oven, the Imperial 36017 Convection Oven Thermocouple With Nut is an OEM temperature-sensing component used within the oven's gas safety system. The thermocouple responds to heat at its sensing end and produces an electrical signal for the connected gas-control circuit. Its 18" length and M10 connection provide the designated physical configuration for the associated oven assembly, while the included nut secures the specified connection arrangement.
Thermoelectric Signal Generation:
Generates a small electrical signal when the sensing tip is heated by the pilot flame. The signal is produced through the thermoelectric effect and is transmitted to the connected gas safety valve. A sufficient signal allows the safety valve to recognize pilot flame presence during normal operation.
Flame Detection:
Continuously responds to the presence of heat at the sensing tip. When the pilot flame remains established and properly contacts the thermocouple tip, the thermocouple can maintain the signal required by the gas safety system. If the flame is lost or the sensing tip is not heated adequately, the signal can decrease, and the safety system can respond by interrupting fuel delivery.
Replacement Guidelines:
Replace the Thermocouple if the sensing tip is damaged, the lead is bent or deteriorated, connections are loose, or temperature sensing becomes unreliable. The part number 36017, 18" length, and M10 nut configuration should be verified before replacement to ensure the correct thermocouple is selected. Replace the thermocouple if deterioration affects temperature sensing, connection integrity, signal response, or normal equipment operation.
Common Failure Symptoms:
- Temperature sensing becomes inconsistent.
- The appliance does not respond normally to the thermocouple signal.
- Heating or gas-control operation becomes intermittent.
- The thermocouple lead or connection shows visible physical damage.
- The sensing response does not correspond normally to appliance operation.
Equipment Compatibility:
The Imperial 36017 Convection Oven Thermocouple With Nut 18" M10 is an OEM component designed for Imperial commercial convection ovens using the corresponding thermocouple and gas-safety arrangement. Verify the equipment model and thermocouple configuration before selecting the component.
Technical Specifications:
Brand: Imperial
Part Number: 36017
Product Name: Thermocouple
Connection Type: M10 Nut
