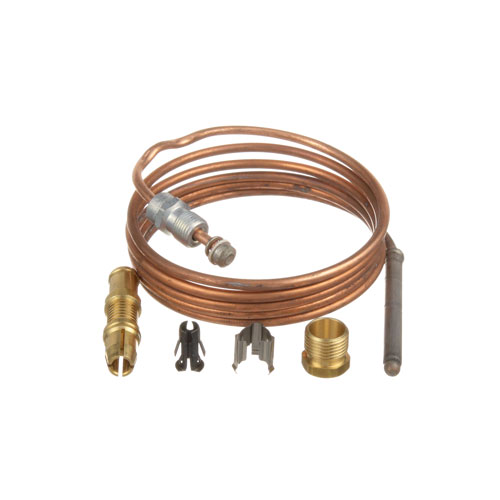

Blodgett 100653 Oven Thermocouple
Description
Dimensions:
- Weight: 0.42 lbs
Flame Temperature Sensing:
Responding to heat generated by the burner flame, the thermocouple produces a small electrical signal based on the temperature difference between its sensing junction and reference end. This signal provides the gas safety system with an indication of the flame condition during oven operation.
Gas Safety Signal:
Providing a flame-status signal to the connected gas safety control, the thermocouple supports the control of gas flow according to the detected flame condition. This interaction forms part of the oven’s safety sequence and helps the gas control respond to the presence or absence of sufficient flame heat.
Replacement Guidelines:
Replace the Blodgett 100653 Oven Thermocouple when it no longer provides the required flame-sensing signal or when physical damage affects its intended function. Select the replacement by matching the thermocouple configuration, connection arrangement, length, and applicable Blodgett oven model.
Common Failure Symptoms:
- Burner flame does not remain established as expected.
- Oven heating operation is interrupted by inconsistent flame detection.
- Thermocouple shows visible damage or deformation.
- Snap-fit connection no longer maintains its intended position.
- Flame-sensing operation becomes inconsistent.
Equipment Compatibility:
Designed for compatible Blodgett commercial gas ovens, this OEM component should be selected according to the applicable oven configuration. Verify the equipment model, thermocouple arrangement, connection type, and part number 100653 before selecting the component.

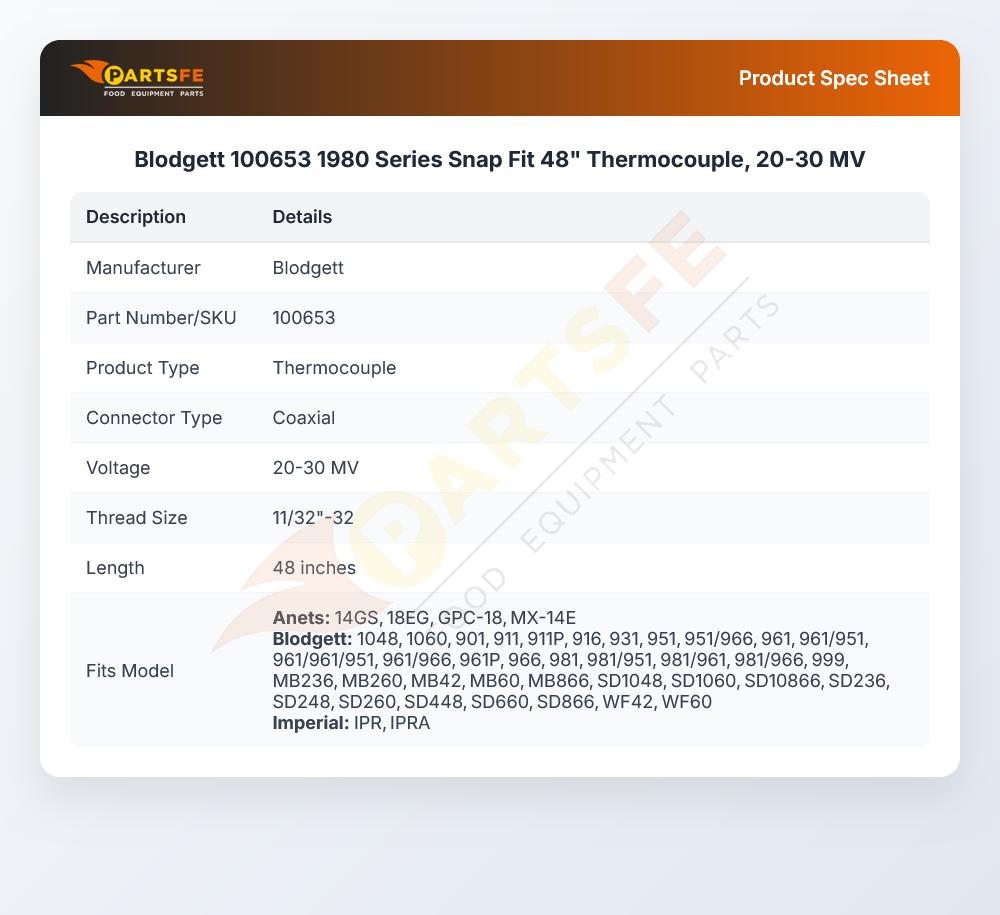

Technical Specifications:
Part Number: 100653
Brand: Blodgett
Component Name: Thermocouple
Equipment Type: Commercial Gas Oven
Length: 48"
Connection Type: Snap-Fit
Step1: Shut off gas supply to the oven.
Step2: Access the pilot assembly inside the burner compartment.
Step3: Unscrew the thermocouple connection from the gas valve.
Step4: Remove the snap-fit end from the pilot bracket.
Step5: Install the new thermocouple, secure the snap-fit tip, reconnect to the gas valve, and test pilot ignition.
-
How does the Snap-Fit Thermocouple enhance my kitchen efficiency?
The Snap-Fit design ensures quick and easy installation, reducing downtime and enhancing operational efficiency.
-
How quickly does the thermocouple respond to temperature changes?
The thermocouple features a rapid response sensor that captures temperature changes swiftly, allowing for real-time adjustments.
-
What maintenance is required for the Blodgett 100653 Thermocouple?
To keep it functioning properly, regularly check that the thermocouple is firmly connected and correctly positioned in the pilot flame. Clean off carbon or debris buildup to maintain accurate millivolt output and flame detection. Inspect for corrosion, cracks, or wear that may reduce performance. Always turn off gas and power before servicing to ensure safety.
-
What are common issues with the Blodgett 100653 Thermocouple?
- Inaccurate temperature readings.
- Open or shorted circuits.
- Signal drift due to corrosion or buildup.
- Mechanical damage from bending or vibration.
-
What type of sensing component is the Blodgett 100653?
The Blodgett 100653 is an oven thermocouple with a documented 48-inch length, identifying its temperature-sensing configuration for compatible commercial ovens.
-
How does a thermocouple respond to oven temperature?
A thermocouple responds to changes in temperature by generating an electrical signal related to the temperature at its sensing junction.
-
Why are oven thermocouples available in different lengths?
Thermocouple lengths can vary according to the physical layout of the oven and the distance between the sensing location and connected components.
-
What information does an oven thermocouple provide to the equipment?
An oven thermocouple provides temperature-related electrical information from its sensing junction for use by the associated oven control arrangement.
-
What role does the Blodgett 100653 have during oven operation?
The Blodgett 100653 provides temperature-sensing input that allows the associated oven system to monitor temperature during its operating cycle.
Customer Reviews
Write a Review
-
Stable Operation
This replacement maintains a steady signal to the gas control.
-
Temperature Readings
Accurate readings, great for baking
-
Temperature Control
Quick response to temperature changes
-
Prefect Fit
This thermocouple works great. It fits properly and provides exact temperature control. Highly reliable for regular performance.
-
Great for Baking
Ensures accurate temperature readings
