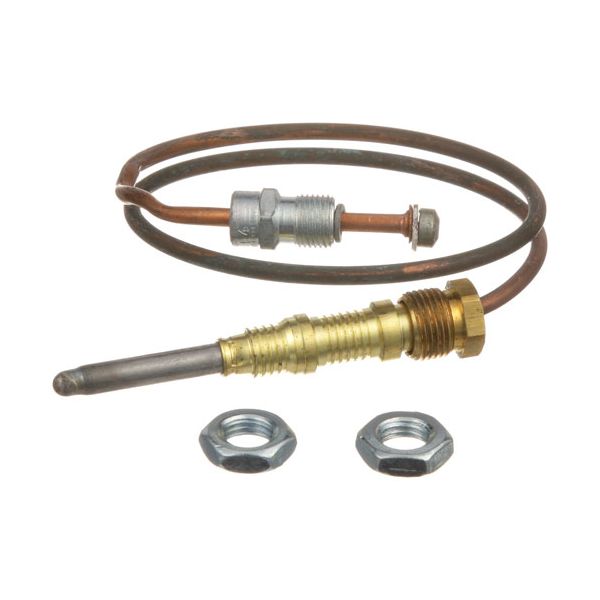

main product photo

Jade Range 4612600100 Thermocouple 18" Long.20-30 MV 1900 Series H/D

Be the first to review this product
Special Price $14.73 Regular Price $25.00
In stock
SKU
4612600100
Add to Wish List
Fryer Parts, Fryer Thermocouples,
Manufacturer:
The Jade Range 4612600100 Thermocouple 18 inch .2030 MV to 1900 Series H/D is a gas cooking appliance temperature sensing safety operator. It detects the presenc pilot flame and produces a small electrical signal sent to the gas control valve to keep it open. When the flame is put out, the signal is terminated, and the valve is closed to prevent uncontrolled flow of gas. This is mounted in the burner assembly in the compatible heavy-duty gas appliances, which works in tandem with the ignition system and the control to help in accurate lighting and safe operation in the kitchen conditions.

Dimensions

  • Length: 18 In
  • Width: 3 In
  • Height: 1 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/j/a/jade-range-4612600100-1900-series-h-d-thermocouple-18-long-20-30-mv-94656-2.jpg

Product Notes

  • 1900 Series Heavy Duty Thermocouple 18" Long. 20-30 Mv
  • Coaxial Thermocouple Threads = 11/32"-32.
  • Cecilware
  • Fryer Gf10, Gf8
  • Grill Ag(1824,1836,1848,2424,2436,2448)
  • Jade Oven Jtrh, Jsr-(24,36)
  • Southbend Model Convection Oven 400 After 4-19-02.
  • Vulcan Hart
  • Grill G-40~
  • Series: 900, 900A.
  • Range Models 24,36,48,481,148,60,160,260, Ending
  • With Suffux L, Lc, Lcc, Series: 77R, Vg.
  • Wolf Model?
More Information
Disable SaleableNo
Replaces Parts
CECILWARE:
GRINDMASTER:
Reviews
Write Your Own Review
You're reviewing:Jade Range 4612600100 Thermocouple 18" Long.20-30 MV 1900 Series H/D
Your Rating
FAQS
Customer Questions
What maintenance is required for the Jade Range 4612600100 Thermocouple?

Inspect for dirt, corrosion, or mechanical damage. Clean the tip gently and ensure secure wiring to the control system. Disconnect power and gas supply before servicing. Proper care ensures accurate flame sensing and secure operation of the appliance.

What are the common issues with the Jade Range 4612600100 Thermocouple?

  • Burners may not ignite or shut off unexpectedly.
  • Loose or corroded electrical connections.
  • Delayed or intermittent response affecting burner operation.
  • Internal wear leading to signal failure.
  • Incorrect readings triggering appliance lockouts.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off the appliance and allow it to cool.

Step2: Disconnect the old thermocouple from the burner and gas valve.

Step3: Position the new thermocouple in the same orientation as the old one.

Step4: Secure the connection at the gas valve.

Step5: Verify the tip placement within the flame.

Step6: Turn on appliance and test performanceality safely.
