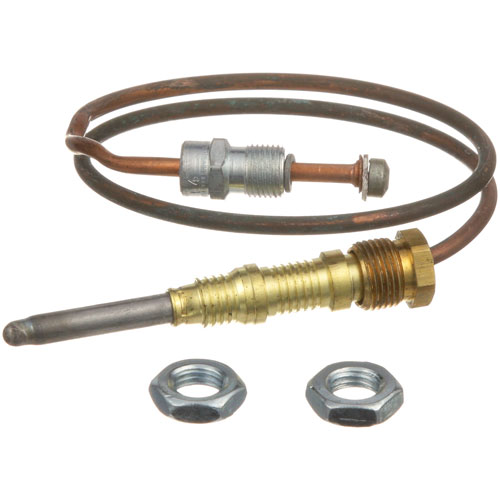

Jade Range 4612600100 Thermocouple 18" Long.20-30 MV 1900 Series H/D

SKU: 4612600100 1-4612600100 Brand:
Jade Range
Availability:
In Stock
(0)
$62.64 Price reduced from $81.35
Save $18.71
Have a Question? +1 (866) 863-0907

Specifications:

  • 1900 Series Heavy Duty Thermocouple 18" Long. 20-30 Mv
  • Coaxial Thermocouple Threads = 11/32"-32.
  • Cecilware
  • Fryer Gf10, Gf8
  • Grill Ag(1824,1836,1848,2424,2436,2448)
  • Jade Oven Jtrh, Jsr-(24,36)
  • Southbend Model Convection Oven 400 After 4-19-02.
  • Vulcan Hart
  • Grill G-40~
  • Series: 900, 900A.
  • Range Models 24,36,48,481,148,60,160,260, Ending
  • With Suffux L, Lc, Lcc, Series: 77R, Vg.
  • Wolf Model?

Description

The Jade Range 4612600100 Thermocouple 18 inch .2030 MV to 1900 Series H/D is a gas cooking appliance temperature sensing safety operator. It detects the presenc pilot flame and produces a small electrical signal sent to the gas control valve to keep it open. When the flame is put out, the signal is terminated, and the valve is closed to prevent uncontrolled flow of gas. This is mounted in the burner assembly in the compatible heavy-duty gas appliances, which works in tandem with the ignition system and the control to help in accurate lighting and safe operation in the kitchen conditions.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 18 in
  • Height: 1 in
  • Width: 3 in

CECILWARE:

F002A

GRINDMASTER:

F002A

HOBART:

00-412788-00001 00-906955-00018 00-921565 112788-1 20040 412788-00001 906955-00018 906955-18 920040 921565

JADE RANGE:

46-126 460-126-000 460-127-000 460126000 460127000 461-270-000 4612600000 4612700000

VULCAN HART:

00-412788-00001 00-906955-00018 00-921565 112788-1 20040 412788-00001 460-126-000 906955-00018 906955-18 920040 921565

Step1: Turn off the appliance and allow it to cool.

Step2: Disconnect the old thermocouple from the burner and gas valve.

Step3: Position the new thermocouple in the same orientation as the old one.

Step4: Secure the connection at the gas valve.

Step5: Verify the tip placement within the flame.

Step6: Turn on appliance and test performanceality safely.

  • What maintenance is required for the Jade Range 4612600100 Thermocouple?

    Inspect for dirt, corrosion, or mechanical damage. Clean the tip gently and ensure secure wiring to the control system. Disconnect power and gas supply before servicing. Proper care ensures accurate flame sensing and secure operation of the appliance.

  • What are the common issues with the Jade Range 4612600100 Thermocouple?

    • Burners may not ignite or shut off unexpectedly.
    • Loose or corroded electrical connections.
    • Delayed or intermittent response affecting burner operation.
    • Internal wear leading to signal failure.
    • Incorrect readings triggering appliance lockouts.
