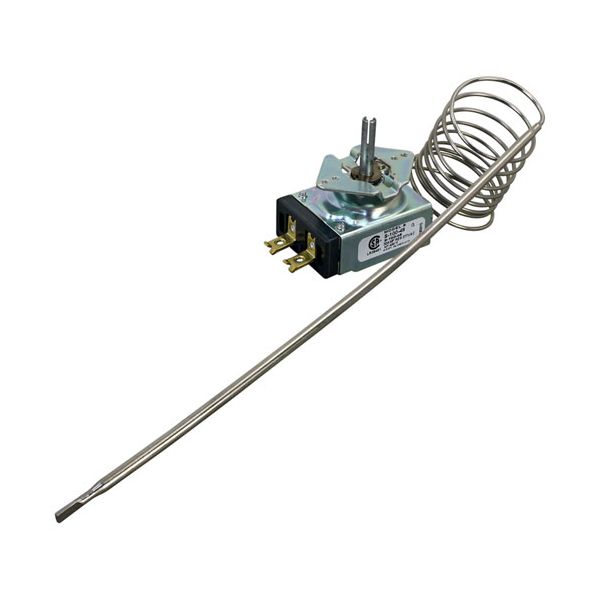

Southbend 2662A8723 S Type Thermostat W/ 3/16" X 11-1/8" Bulb, 48"CAP
Special Price $137.20 Regular Price $232.00
In stock
SKU
2662A8723
The Southbend 2662A8723 Thermostat S 3/16" X 11-5/8" 48" CAP operates by detecting the temperature changes in the equipment and adjusting the heating element as necessary to keep the temperature at the desired level. It operates using its temperature-sensing bulb and capillary tube that sends the pressure changes to the electrical contacts so that the temperature can be adjusted accurately. This thermostat is commonly placed in cooking or heating appliances and linked to the control system so that there is constant thermal regulation when it is in use.
Manufacturer:
Dimensions
- Length: 13.25 In
- Width: 2.75 In
- Height: 2.5 In
- Weight: 0.6 lbs
Product Notes
- [ Type- S ] [ Temp 150-450 ] [ Bulb 3/16" X 11-1/8"
- Nickel] [ Cap 48" ] Mount 1 [ Dial #22-1179 Off-
- 450-150 For Drawer Warmer.] [ Dial # 22-1313
- Off-10-0 For Drop-In Warmer. ]
- Toastmaster
- Oven 1503Td, 3012(E,S), 3020, 3024, 3025, 3027, 3028, 3044,
- 3054. Series: 27, Co19, Co38.
- Broiler 4224, 4236.
- Grill Models: B721B(800W), C713B(1200W) & C714B(1650W).
- Built-In: B702A, C703A & C704A.
- T-Line: 7118 & 30, 7224 & 36, 7336, 48 & 72, 7436.
- Built-In T-Line: 7024, 36, 36H, 48 & 72. Griddle (On Range
- 2662): B712(Prior To 1/77), 7224, (After 1/77),7348F.
- 450 Eg F Max Temp, 48" Cab, Bulb = 11-1/8" X 3/16"
