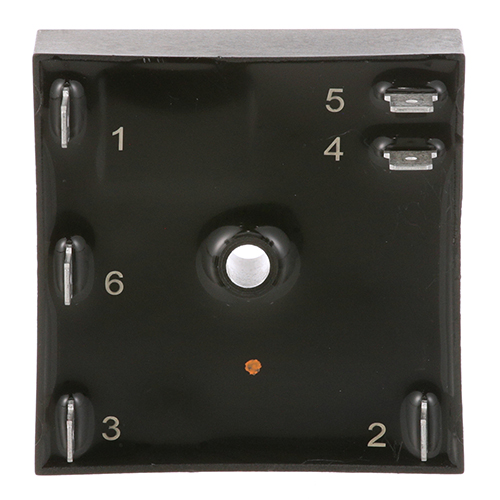

Southbend 9242-2 Time Delay Relay, 230V
Specifications:
- 230V
Description
Dimensions:
- Weight: 0.2 lbs
- Length: 3 in
- Height: 2 in
- Width: 3 in
MARKET FORGE:
Step1: Turn off power at breaker and check zero voltage.
Step2: Access control panel and locate existing relay.
Step3: Label and disconnect wiring terminals carefully.
Step4: Remove old relay and mount new relay securely on bracket.
Step5: Reconnect wires per diagram, ensuring tight connections.
Step6: Restore power and test timed delay operation.
Step7: Ensure panel is closed and observe proper cycling.
-
What maintenance is required for the Southbend 9242-2 Time Delay Relay?
Inspect wiring connections and ensure the relay operates at the correct supply. Clean dust from terminals and enclosures to prevent overheating. Periodically test timing accuracy and replace worn contacts to maintain accurate switching performance and system safety.
-
What are common issues with the Southbend 9242-2 Time Delay Relay?
- Timing drift or inaccurate delay settings.
- Relay coil burnout or failure.
- Contact welding or pitting.
- Intermittent switching or signal loss.
- Overheating under continuous load.
- Voltage sensitivity issues.
- Relay chatter or inconsistent operation.
