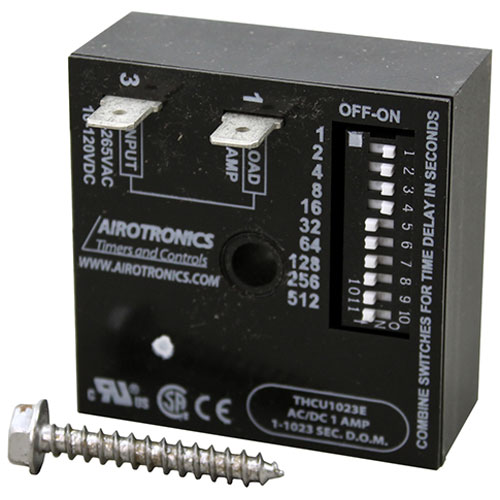

Ice-O-Matic 9101148-01 Ice machine Timer Module 1-1023 Sec

Signal Processing:
Processes timing-related electrical inputs and determines when output signals should be delivered to connected control circuits. The module uses the selected timing interval to initiate or interrupt electrical signals at specific points in the operating sequence. Consistent signal processing helps coordinate components that depend on precise timing and supports orderly transitions between controlled operations. Electrical connections, control inputs, and output circuits work together to maintain the programmed timing sequence.

Timing Adjustment:
The operating duration of a controlled function to be established within the module's specified range. The selected interval determines how long the associated electrical operation remains active or when the next timed signal is initiated. Accurate adjustment helps synchronize time-dependent components and maintain consistent operating intervals throughout the programmed sequence.

Replacement Guidelines:
Replacement of the Ice Machine Timer Module if it is damaged, unresponsive, operates inconsistently, or no longer provides reliable timing control. The part number 9101148-01 and 1-1023 SEC timing range should be verified before replacement to ensure the correct timer module is selected. Replace the timer module if deterioration affects timing accuracy, control response, electrical connection, or normal ice machine operation.

Common Failure Symptoms:

• Timed equipment functions do not occur at the expected intervals.
• Timing becomes inconsistent between operating cycles.
• A controlled stage begins or ends prematurely.
• A controlled stage remains active longer than expected.
• The timer module shows visible physical damage.

Equipment Compatibility :
Before purchasing, match Ice-O-Matic 9101148-01 with the ice machine's documented timer-module requirements. Confirm the 1–1023 second timing range and part number correspond to the required control configuration.

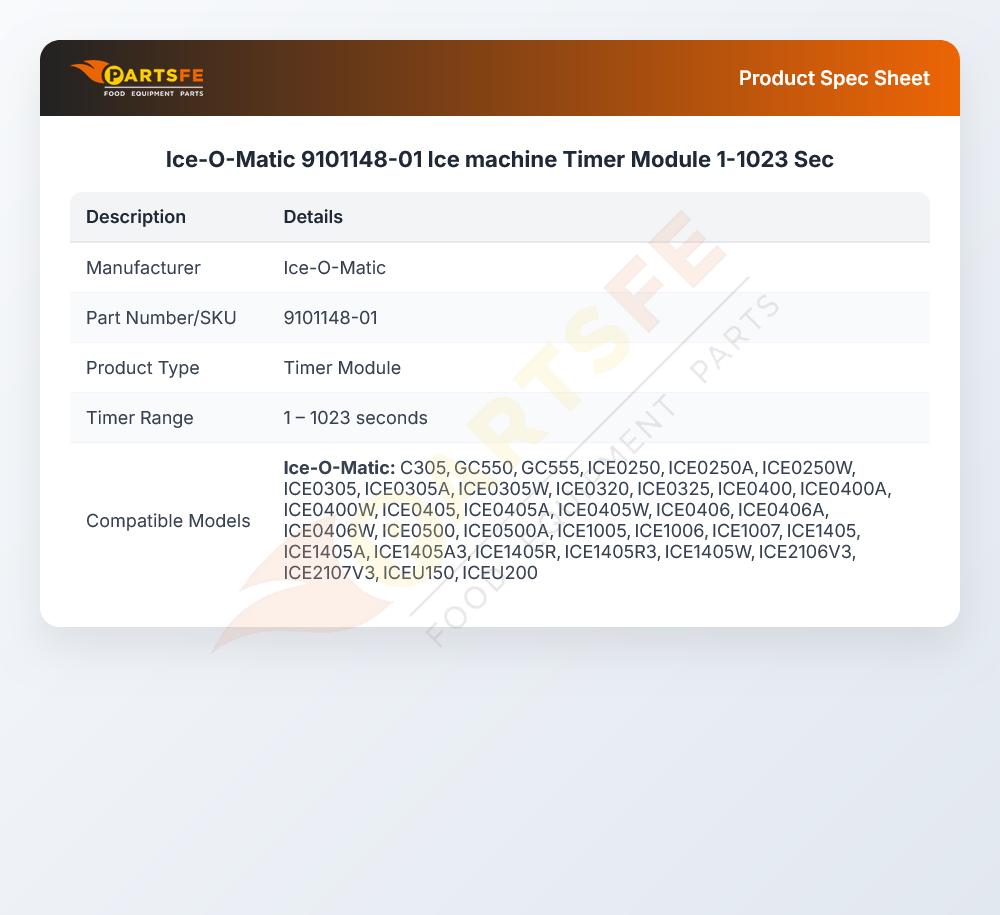

Technical Specifications:
Brand: Ice-O-Matic
Part Number: 9101148-01
Component Name: Timer Module
Timing Range: 1–1023 SEC
Appliance Type: Commercial Ice Machine

Step1: Power off and unplug the ice machine before starting.

Step2: Remove the access panel to locate the existing timer module.

Step3: Carefully disconnect all wires from the old module, noting their positions.

Step4: Mount the new module securely in place.

Step5: Reconnect all wires correctly, ensuring firm connections.

Step6: Replace the access panel and plug in the machine.

Step7: Test the ice machine to verify proper timing operation.

• What maintenance is required for the Ice-O-Matic 9101148-01 Timer Module?

  Inspect wiring connections and terminals regularly to ensure they are secure and free from corrosion. Keep the control box clean and dry to prevent electrical damage. During routine ice machine servicing, verify proper cycle timing. Always disconnect power before handling electrical components. The module controls timing cycles in ICE series cubers, so stable connections are essential for accurate operation.

• What are common issues with the Ice-O-Matic 9101148-01 Timer Module?

  • Timer failing to start or stop ice cycles
  • Inconsistent timing intervals
  • Electrical connection faults
  • Module not responding to control inputs.

• What is the function of the Ice-O-Matic 9101148-01 Timer Module?

  It controls the timing of selected electrical functions during different stages of the ice-making cycle.

• How can a faulty timer affect machine operation?

  Incorrect timing can cause delays, interruptions, or improper sequencing of time-controlled functions.

• When should the Ice-O-Matic 9101148-01 Timer Module be replaced?

  The timer module should be replaced when it fails to operate correctly, becomes damaged, or no longer provides the expected timing control within the ice machine.

• Can the timer module coordinate multiple stages of an ice-making cycle?

  Yes. It can provide timed signals to connected circuits that operate at different stages of the programmed cycle.

• What are common indications of timer module failure?

  Incorrect timing intervals, delayed functions, inconsistent cycle progression, and interruptions in timed operations may indicate a timer-related issue.
