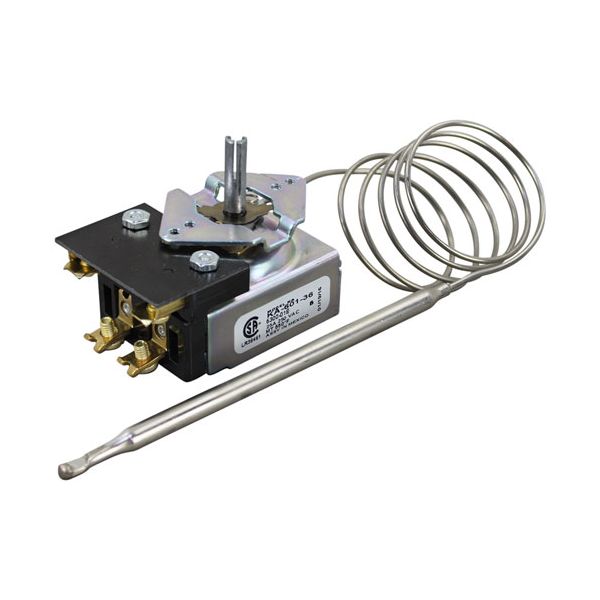

Regulates the heating cycle in compatible commercial toaster equipment by responding to temperature changes detected through its capillary sensing assembly. The APW 56527 Hot Food Well Thermostat KA controls the heating circuit according to the selected temperature setting, helping manage heat output during normal toaster operation. Its 4-terminal configuration, 100°F–550°F temperature range, and 36" capillary provide the specified control characteristics for applications requiring this thermostat configuration.
Electrical Switching:
Controls the toaster's heating circuit through temperature-responsive electrical contacts. As the sensed temperature approaches the selected setting, the thermostat changes its contact state to control power supplied to the heating elements. This repeated switching action allows the thermostat to regulate heat input throughout normal toaster operation and helps prevent continuous heating or insufficient heat.
Temperature Control Range:
Provides an adjustable temperature control range of 100°F–550°F for applications requiring different operating temperatures. The selected setting establishes the temperature point at which the thermostat responds to changing heat conditions. Within this range, the thermostat repeatedly regulates the heating circuit as the sensed temperature rises and falls, supporting controlled and consistent toaster operation across different cooking requirements.
Replacement Guidelines:
Replace the Toaster Thermostat if it is damaged, worn, unresponsive, or no longer provides accurate temperature control. The part number 56527, 4 Terminal configuration, 100°F–550°F temperature range, and 36" capillary should be verified before replacement to ensure the correct thermostat is selected. Replace the thermostat if deterioration affects temperature sensing, control response, temperature regulation, or normal toaster operation.
Common Failure Symptoms:
- Inconsistent heating performance.
- Overheating during operation.
- Failure to reach the selected temperature.
- Heating elements remaining continuously energized.
- Frequent temperature fluctuations.
- Damaged or kinked sensing capillary.
Equipment Compatibility:
The APW 56527 Toaster Thermostat is intended for equipment that specifies part number. Verify part number 56527 against the existing thermostat and confirm the applicable toaster or warmer model using the equipment parts diagram, owner's manual, or manufacturer's documentation
Technical Specifications:
Manufacturer: APW
Part Number: 56527
Product Name: Hot Food Well Thermostat
Temperature Range: 100°F–550°F
Capillary Length: 36"
Appliance Type: Commercial Toaster
Configuration: KA
