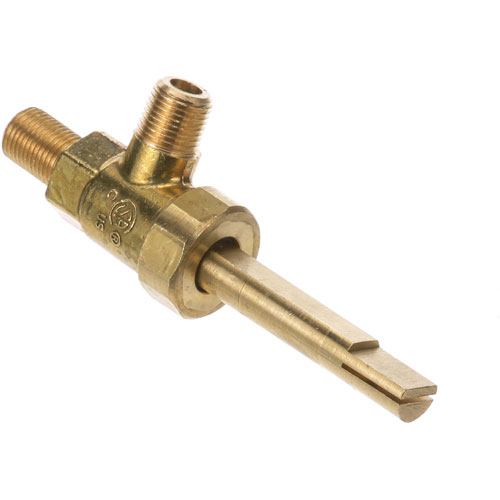

Southbend 1178202 Range Top Burner Valve 1/8" MPT X 3/8-27
Description
Dimensions:
- Weight: 0.03 lbs
Gas Flow Control:
Adjusts the internal gas-flow passage in response to the selected control position, regulating the amount of gas delivered to the connected burner. As the control setting changes, the valve modulates gas flow to support different burner heat levels. Consistent valve movement helps provide predictable gas delivery and allows the burner to respond appropriately to operator adjustments.
Burner Operation:
Provides dedicated gas-flow control for an individual burner circuit, allowing its heat level to be adjusted independently from other burners on the range. This allows multiple burners to operate at different settings simultaneously, supporting cooking tasks that require varying heat levels.
Replacement Guidelines:
Replace the Range Valve if it is damaged, cracked, deformed, corroded, leaking, or no longer provides proper gas-flow control. The part number 1178202 and connection configuration 1/8" MPT x 3/8-27" should be verified before replacement to ensure the correct range valve is selected. Replace the valve if deterioration affects gas flow, connection integrity, sealing, or normal range operation.
Common Failure Symptoms:
- Burner heat does not respond consistently to control adjustments.
- Gas flow is not regulated as intended.
- Valve control becomes difficult to operate.
- Valve body shows visible damage.
- Threaded connections show signs of wear or damage.
Equipment Compatibility:
Intended for commercial ranges requiring manufacturer part number 1178202 with the specified connection configuration. Verify the equipment model and required part number before ordering to help ensure the correct valve is selected.

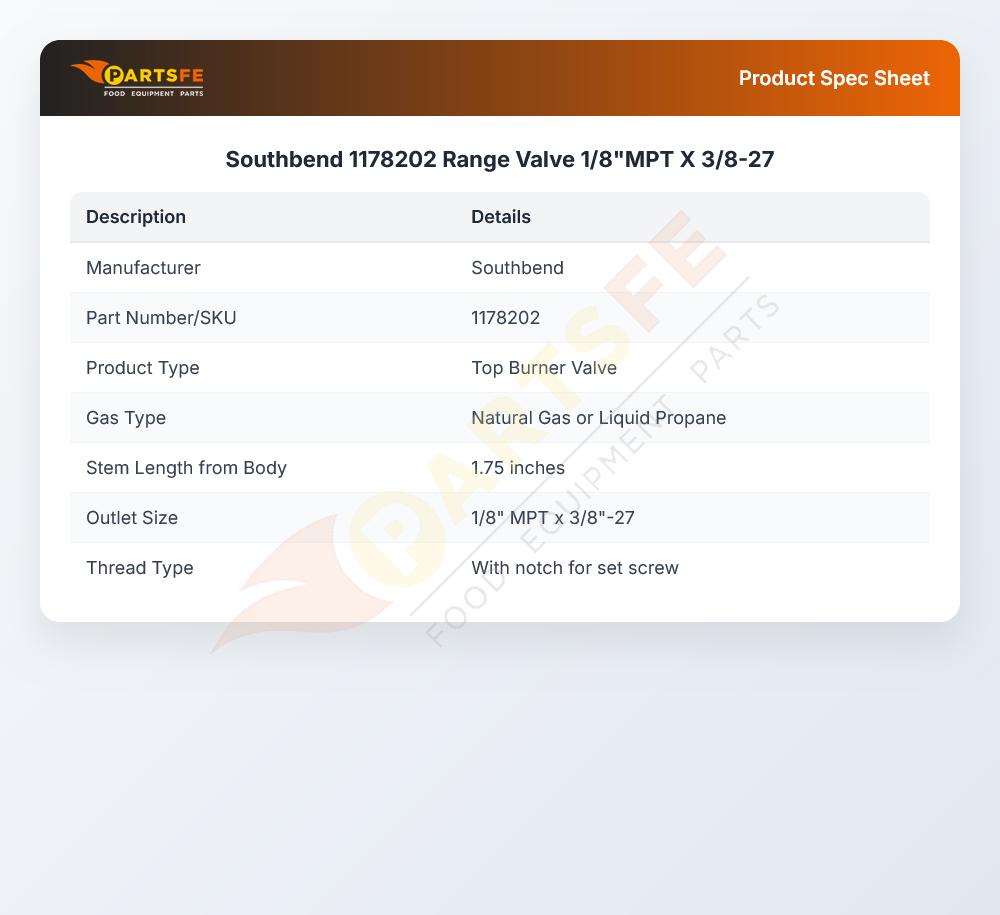

Technical Specifications:
Brand: Southbend
Part Number: 1178202
Component Name: Top Burner Valve
Gas Inlet: 1/8" MPT
Gas Outlet: 3/8"-27
Valve Operation: Off/On
Equipment Type: Commercial Range
SOUTHBEND:
STAR MFG:
STERO:
STA1178202 STA2J-1178202 STA2J1178202
Step 2: Wait for the broiler to reach room temperature before proceeding with the installation.
Step 3: Identify the current broiler valve and detach the gas lines along with any electrical connections.
Step 4: Take out the old Southbend 1178202 valve from the broiler unit.
Step 5: Place the new infrared broiler valve in the correct position and firmly reconnect the gas lines and electrical wiring.
Step 6: Turn the gas supply and power back on, then check the broiler to ensure it ignites correctly and maintains consistent heat output.
-
What does the Hi-Off designation mean on the Southbend 1178202 Burner Valve?
The Hi-Off designation identifies the valve's control positions, allowing the range top burner to operate at its high setting or remain off.
-
How does the Southbend 1178202 connect to the burner gas circuit?
The Southbend 1178202 provides the controlled connection between the gas supply path and the range top burner.
-
What do the MPT and 3/8-27 connection designations indicate on this burner valve?
The MPT and 3/8-27 designations identify the threaded connection interfaces used by the Southbend 1178202 within the burner gas circuit.
-
Why does the Southbend 1178202 support NG/LP applications?
The NG/LP designation indicates that the valve is associated with range configurations designed for natural gas or LP gas service.
-
Which range component uses the Southbend 1178202 Burner Valve?
The Southbend 1178202 is used with a range top burner assembly, where the valve provides the gas-control interface for burner operation.
