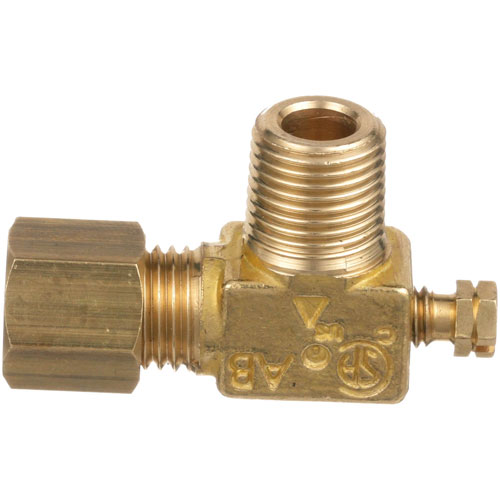

Vulcan Hart VH404193-2 Pilot Valve Adjustable W/1/8 MPT X 3/16 CC 90 DEG

SKU: VH404193-2 1-VH404193-2 Brand:
Vulcan Hart
Availability:
Out of Stock
(1)
$11.72
Have a Question? +1 (866) 863-0907

Specifications:

  • Pilot Adjustment Valve
  • [ 1/8" Mpt X 3/16" Cct ] Angle - 90 Deg, Adjustable
  • Csa Approved In Canada And U.S.
  • Royal Range

Description

The Vulcan Hart VH404193-2 Pilot Valve Adjustable 1/8 inch MPT 3/16 inch CC 90 degree regulates the flow of gas to a pilot burner by turning its adjustable mechanism that opens or closes the internal passage to adjust the desired gas flow rate. The gas inlet is the 1/8-inch male pipe thread inlet and the outlet is the 3/16-inch compression fitting at 90 degrees to the pilot assembly. It is fitted in the gas supply line of compatible cooking equipment where a right-angle connection and adjustable pilot gas control are required.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 1.5 in
  • Height: 0.38 in
  • Width: 0.75 in

AMERICAN RANGE:

10418 A29300 AMRA29300

APW WYOTT:

2065643

ATOSA:

301030001

BAKERS PRIDE:

2065643 311027

COMSTOCK CASTLE:

25024

DYNAMIC COOKING SYSTEMS:

13029-1 DCS13029-1

GARLAND:

227015 G03674-2

HOBART:

00-404193-00002 00-719193 104193-2 15086 19193 404193-00002 404193-2 715086 719193

IMPERIAL:

1604 1609 IMP1609

MAGIKITCH'N:

23A 2802-0031400 280200314 MK23A MK2802-0031400 MK280200314 MKRP0129 RP0129

MONTAGUE:

#35 01055-3 1055-3 35 B-33A B33A CR-4 CR4 G-12A G12A MON01055-3 MON1055-3

RANDELL:

DRB-12A GT-10A RB-12A RDCM-04A RDGM-14A RDHP-16 RDHP-E-C-16 RDLR-08 RDLR-8 RDOR-09 SSPR-11A TB-12A TB-3-12A TB3-12A

RANKIN DELUX:

DRB-12A GT-10A RANRB12A RB-12A RB12A RDCM-04A RDGM-14A RDHP-16 RDHP-E-C-16 RDLR-08 RDLR-8 RDOR-09 SSPR-11A TB-12A TB-3-12A TB3-12A

ROYAL RANGE:

0531-AP7-1 1625 531AP7-1 ROY0531-AP7-1 ROY531AP7-1

SOUTHBEND:

1165512

TRI-STAR:

311027 AS-311027 TRS311027

VULCAN HART:

00-404193-00002 00-719193 104193-2 15086 19193 404193-00002 404193-2 719193 VH104193-2

Step1: Turn off gas supply and ensure appliance is completely cool.

Step2: Shut down and relieve any remaining gas pressure safely.

Step3: Remove old pilot adjustment valve from the gas line carefully.

Step4: Clean all threaded fittings and inspect for damage or wear.

Step5: Apply gas-rated thread sealant to inlet and outlet connections.

Step6: Install new pilot adjustable valve in correct flow direction and tighten securely.

Step7: Restore gas, check for leaks with soap solution, and adjust pilot flame.

  • What maintenance is required for the Vulcan Hart VH404193-2 Pilot Valve?

    Keep the valve clean and free from grease or carbon buildup that can block gas flow. Inspect the pilot orifice for clogging and ensure all connections are secure. Regular testing assists in maintaining accurate ignition performance.

  • What are common issues with the Vulcan Hart VH404193-2 Pilot Valve?

    • Pilot flame failure or weak ignition.
    • Clogged orifice restricting gas flow.
    • Gas leakage around valve seals.
    • Intermittent pilot operation.
    • Difficulty maintaining steady flame.
