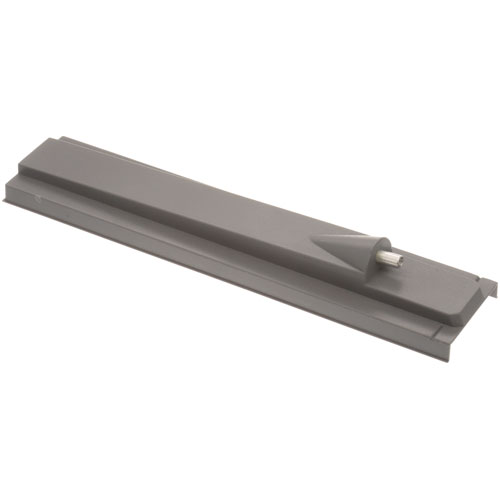

Delfield 000-BNH-0030 Evaporator Coil Drip Pan

SKU: 000-BNH-0030 1-000-BNH-0030 Brand:
Delfield
Availability:
In Stock
(0)
$104.78 Price reduced from $222.00
Save $117.22
Have a Question? +1 (866) 863-0907

Specifications:

  • Evaporator Drip Pan
  • Blue Plastic, 20" L X 4-5/8" W X 3" Deep
  • Delfield 18648-Buc, 18648-Ptb, 18648Ptb, 18660-Buc,
  • 18660-Ptb, 18672-Buc, 18672-Ptb, 18691-Buc, 18691-Ptb,
  • 18699-Buc, 18699-Ptb, 18699Buc, 18699Ptb, 18Sc39R, 402, 403,
  • 406, 407, 6000Xl, 724, Ctb8146-Nb, Ctb8160-Nb, Ctb8175-Nb,
  • D4427N, F15Mc48D, F15Mc48N, F15Mc72D, F15Mc72N, F15Mr48D,
  • F15Mr48N, F15Mr72D, F15Mr72N, F15Pc48D, F15Pc48N, F15Pc72D,
  • F15Pc72N, F15Pr48D, F15Pr48N, F15Pr72D, F15Pr72N, F15Sc48D,
  • F15Sc48N, F15Sc72D, F15Sc72N, F15Sr48D, F15Sr48N, F15Sr72D,
  • F15Sr72N, F18Dc52, F18Dc60, F18Dc68, F18Dc72, F18Dc82,
  • F18Dc91, F18Dc99, F18Dr44, F18Dr52, F18Dr60, F18Dr70,
  • F18Dr79, F18Dr87, F18Fc62, F18Fc70, F18Fc78, F18Fc88,
  • F18Fr35, F18Fr50, F18Fr58, F18Fr66, F18Fr76, F18Mc39A,
  • F18Mc39D, F18Mc52A, F18Mc52D, F18Mc52E, F18Mc60A, F18Mc60D,

Description

The Delfield 000-BNH-0030 Evaporator Coil Drip Pan works by trapping the moisture that condenses and runs off the cooling tubes in cooling process. This element directs the built-up liquid to a drainage system to prevent stagnation of water in the cabinet or on the floor. The part is placed at the bottom of the evaporator assembly and is a key interface point between radiator hardware and the external plumbing. The unit is built using corrosion-resistant materials, and it is fitted to match some commercial food service models to ensure the proper airflow.

Dimensions:

  • Weight: 0.6 lbs
  • Length: 20.5 in
  • Height: 2.75 in
  • Width: 4.5 in

DELFIELD:

000-BNH-003-S 000-BNH-0030-S 000BNH0030 039-231-0000 075-231-0033 39-231-0000 BNH0030 BNH0030S DEL000-BNH-0030 DEL000-BNH-0030-S DEL39-231-0000 DELBNH0030 DELBNH0030S

Step1: Disconnect power and allow unit to cool to avoid burns or electrical hazard.

Step2: Remove existing drip pan and clean mounting area thoroughly.

Step3: Align the Evaporator Drip Pan with brackets under evaporator coil.

Step4: Secure pan using existing fasteners or clips, ensuring level positioning for proper drainage.

Step5: Restore power and verify condensate flows into pan without leaks.

Step6: Inspect installation and ensure drip pan is firmly seated and stable before regular operation.

  • What maintenance is required for the Delfield 000-BNH-0030 Drip Pan?

    For optimal operation, regularly remove debris and buildup from the drip pan and ensure proper drainage flow. Inspect for corrosion or cracks and clean with mild detergent. Keeping it clear prevents overflow and supports efficient condensate handling.

  • What are common issues with the Delfield 000-BNH-0030 Drip Pan?

    • Cracks or punctures causing water leaks.
    • Overflow due to blocked drain passages.
    • Warping leading to improper fit beneath the evaporator coil.
    • Excessive condensation accumulation causing water spillage.
    • Debris buildup restricting drainage and promoting ice formation.
