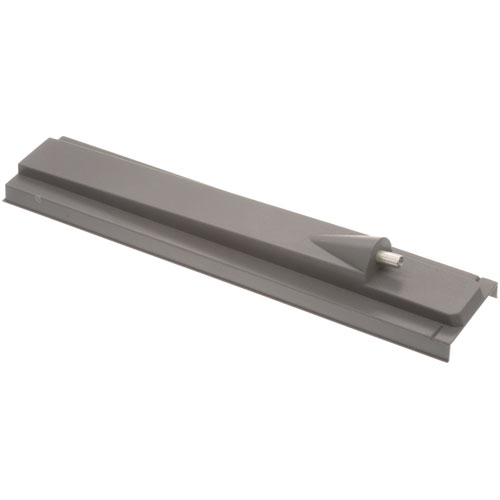

Delfield 000-BNH-0030-S Refrigerator Evaporator Drip Pan Assembly 20" L X 4-5/8" W X 3" Deep

SKU: 000-BNH-0030-S 1-000-BNH-0030-S Brand:
Delfield
Availability:
In Stock
(0)
$104.78 Price reduced from $222.00
Save $117.22
Have a Question? +1 (866) 863-0907

Specifications:

  • Evaporator Drip Pan
  • Blue Plastic, 20" L X 4-5/8" W X 3" Deep
  • Delfield 18648-Buc, 18648-Ptb, 18648Ptb, 18660-Buc,
  • 18660-Ptb, 18672-Buc, 18672-Ptb, 18691-Buc, 18691-Ptb,
  • 18699-Buc, 18699-Ptb, 18699Buc, 18699Ptb, 18Sc39R, 402, 403,
  • 406, 407, 6000Xl, 724, Ctb8146-Nb, Ctb8160-Nb, Ctb8175-Nb,
  • D4427N, F15Mc48D, F15Mc48N, F15Mc72D, F15Mc72N, F15Mr48D,
  • F15Mr48N, F15Mr72D, F15Mr72N, F15Pc48D, F15Pc48N, F15Pc72D,
  • F15Pc72N, F15Pr48D, F15Pr48N, F15Pr72D, F15Pr72N, F15Sc48D,
  • F15Sc48N, F15Sc72D, F15Sc72N, F15Sr48D, F15Sr48N, F15Sr72D,
  • F15Sr72N, F18Dc52, F18Dc60, F18Dc68, F18Dc72, F18Dc82,
  • F18Dc91, F18Dc99, F18Dr44, F18Dr52, F18Dr60, F18Dr70,
  • F18Dr79, F18Dr87, F18Fc62, F18Fc70, F18Fc78, F18Fc88,
  • F18Fr35, F18Fr50, F18Fr58, F18Fr66, F18Fr76, F18Mc39A,
  • F18Mc39D, F18Mc52A, F18Mc52D, F18Mc52E, F18Mc60A, F18Mc60D,

Description

The Delfield 000-BNH-0030-S Refrigerator Evaporator Drip Pan Assembly 20" L X 4-5/8" W X 3" is to collect the condensation that runs off the heating coils during the cooling cycle. When the unit is in chill mode, the water is directed into this basin to ensure that the liquid does not settle on the floor of the cabinet or on delicate parts of the internal parts. This set will be directly below the vaporizer coil housing in the cooling compartment to provide a drainage route. It provides a storage space for wastewater until it is directed to the external evaporation drain line.

Dimensions:

  • Weight: 0.6 lbs
  • Length: 20.5 in
  • Height: 2.75 in
  • Width: 4.5 in

DELFIELD:

000-BNH-003-S 000-BNH-0030 000BNH0030 039-231-0000 075-231-0033 39-231-0000 BNH0030 BNH0030S DEL000-BNH-0030 DEL000-BNH-0030-S DEL39-231-0000 DELBNH0030 DELBNH0030S

Step1: Unplug the unit before starting installation.

Step2: Locate the evaporator section inside the cabinet.

Step3: Remove the old drip pan carefully.

Step4: Clean the area to prevent buildup.

Step5: Slide the new pan into the designated position.

Step6: Reconnect power and check for proper drainage operation.

  • What maintenance is required for the Delfield 000-BNH-0030-S Evaporator Drip Pan?

    Regularly clean the drip pan to remove water, slime, and debris buildup. Inspect for cracks, corrosion, or blockages that may affect drainage. Ensure proper positioning to catch condensate effectively. Routine maintenance helps prevent overflow, odors, and sanitation issues.

  • What are common issues with the Delfield 000-BNH-0030-S Evaporator Drip Pan?

    • Clogging from debris or sludge buildup.
    • Cracks or corrosion leading to leaks.
    • Overflow due to improper drainage.
    • Unpleasant odors from stagnant water accumulation.
