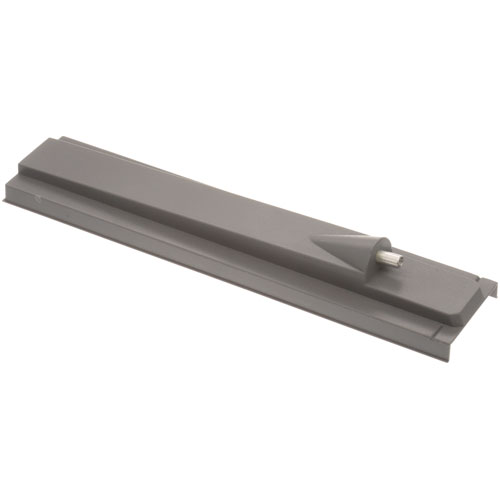

Delfield 075-231-0033 Evaporator Drip Pan Assembly 20" L X 4-5/8" W X 3" Deep

SKU: 075-231-0033 1-075-231-0033 Brand:
Delfield
Availability:
In Stock
(0)
$104.78 Price reduced from $222.00
Save $117.22
Have a Question? +1 (866) 863-0907

Specifications:

  • Evaporator Drip Pan
  • Blue Plastic, 20" L X 4-5/8" W X 3" Deep
  • Delfield 18648-Buc, 18648-Ptb, 18648Ptb, 18660-Buc,
  • 18660-Ptb, 18672-Buc, 18672-Ptb, 18691-Buc, 18691-Ptb,
  • 18699-Buc, 18699-Ptb, 18699Buc, 18699Ptb, 18Sc39R, 402, 403,
  • 406, 407, 6000Xl, 724, Ctb8146-Nb, Ctb8160-Nb, Ctb8175-Nb,
  • D4427N, F15Mc48D, F15Mc48N, F15Mc72D, F15Mc72N, F15Mr48D,
  • F15Mr48N, F15Mr72D, F15Mr72N, F15Pc48D, F15Pc48N, F15Pc72D,
  • F15Pc72N, F15Pr48D, F15Pr48N, F15Pr72D, F15Pr72N, F15Sc48D,
  • F15Sc48N, F15Sc72D, F15Sc72N, F15Sr48D, F15Sr48N, F15Sr72D,
  • F15Sr72N, F18Dc52, F18Dc60, F18Dc68, F18Dc72, F18Dc82,
  • F18Dc91, F18Dc99, F18Dr44, F18Dr52, F18Dr60, F18Dr70,
  • F18Dr79, F18Dr87, F18Fc62, F18Fc70, F18Fc78, F18Fc88,
  • F18Fr35, F18Fr50, F18Fr58, F18Fr66, F18Fr76, F18Mc39A,
  • F18Mc39D, F18Mc52A, F18Mc52D, F18Mc52E, F18Mc60A, F18Mc60D,

Description

The Delfield 075-231-0033 Evaporator Drip Pan Assembly 20" L X 4-5/8" W X 3" Deep works by trapping liquid runoff, which is produced during the cooling process. This part directs the moisture to a central basin so that it does not pool or leak internally in the cabinet. It is placed directly under the heating wires to collect any condensation that comes by gravity before the liquid can tamper with other mechanical components. The unit is 20" L x 4-5/8" W x 3" deep, which is a fit in certain commercial cooling footprints.

Dimensions:

  • Weight: 0.6 lbs
  • Length: 20.5 in
  • Height: 2.75 in
  • Width: 4.5 in

DELFIELD:

000-BNH-003-S 000-BNH-0030 000-BNH-0030-S 000BNH0030 039-231-0000 39-231-0000 BNH0030 BNH0030S DEL000-BNH-0030 DEL000-BNH-0030-S DEL39-231-0000 DELBNH0030 DELBNH0030S

Step1: Disconnect power to unit for safety.

Step2: Remove existing drip pan and clean area.

Step3: Position new pan under evaporator coil.

Step4: Secure using mounting brackets or fasteners.

Step5: Ensure proper drain alignment and slope.

Step6: Restore power and check for leaks or overflow.

Step7: Wear gloves and ensure power is off before installation.

  • What maintenance is required for the Delfield 075-231-0033 Drip Pan?

    Evaporator drip pans need regular cleaning to remove debris and prevent drainage blockages. Inspect for corrosion or cracks and ensure proper alignment under the evaporator coil. Clear standing water to prevent overflow and maintain efficient condensate flow.

  • What are common issues with the Delfield 075-231-0033 Drip Pan?

    • Clogged drainage causing water pooling or overflow.
    • Corrosion or rust on metal surface over time.
    • Misalignment leading to improper condensate collection.
    • Cracks or warping affecting drainage efficiency.
    • Blockage buildup from debris restricting flow.
