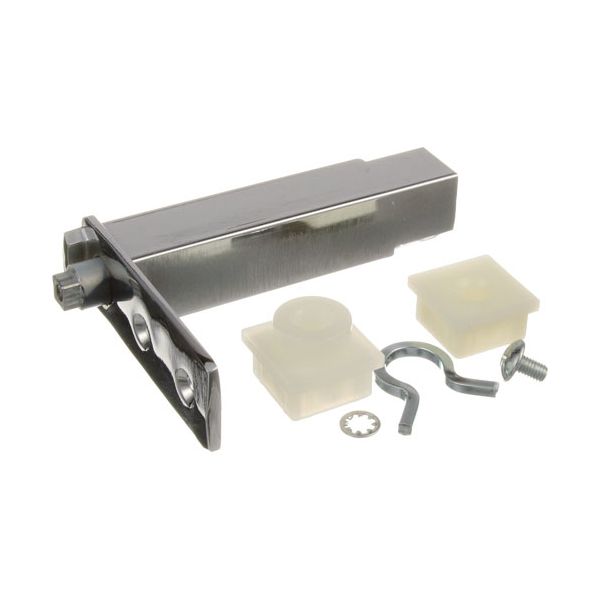

Beverage Air 00C34-030D-01 Reach-In Refrigerator Cartridge Hinge Kit

Rating:
5 5 9
9  Reviews Add Your Review
Special Price $13.70 Regular Price $51.89
In stock
SKU
00C34-030D-01
Add to Wish List
Electrical & Hardware, Hinge Parts,
Manufacturer:
The Beverage Air 00C34-030D-01 Reach-In Refrigerator Cartridge Hinge K‍it is used as a replacement part that is designed to support the movement by securing the pivot mechanism within a housing. It works by directing the rotational motion through the integrated product allowing controlled movement as it opens and closes along the mounted axis. It is positioned at the interface between the appliance door and cab‌inet fr‍am‌e in units f‌or proper alignment of the assembly. It integrates with existing cooling door hardware during maintenance or replacement procedures involving the assembly.

Dimensions

  • Length: 4.5 In
  • Width: 3.125 In
  • Height: 4.5 In
  • Weight: 0.52 lbs
https://partsfe.com/media/catalog/product/b/e/beverage-air-00c34-030d-01-power-cartridge-concealed-hinge-68126-2.jpg

Product Notes

  • Power Cartridge, Top 3" Od W/ 1" Ctrs Mount Holes
  • Body 3-13/16" Long
  • Used Wih Left Or Right Mounting Brackets
  • Series Chg R56, Standard Kiel 2856,
  • Beverage Air Cfg24, Cfg36, Cfg48, Cfg74, Crg24, Crg36,
  • Crg48, Crg74, Kf12, Kf24, Kf36, Kf48, Kf74, Kr12, Kr24,
  • Kr36, Kr48, Kr74, Ucr27
  • Norlake Refrigerator Nr(211,482,763), Lr(152,192)
  • Freezer Nf(211,482,763), Zf081Sms-22 (Dq Topping Freezer)
  • T-23-2, Tssu 36-12Mb, Tssu 48-18Mb, Tssu Series, Tssu-48,
  • Tssu-48-8-47, Tuc-48, Tuc-60, Tuc27F, Twt-48, Twt-60, Twtf
  • Traulsen Cu27, Cu48, Cu60, G12000, G12001, Tu048Qc

This hinge assembly is a cartridge-type hinge designed for use on commercial refrigeration doors, providing smooth and controlled door movement while maintaining a stable pivot point between the door and cabinet frame. A 3" outside diameter top section, 1" center mounting hole spacing, and 3-13/16" body length help ensure proper alignment and seating within compatible hinge brackets for consistent operation in heavy-use environments. This hinge kit is commonly used in reach-in coolers, freezers, prep tables, and undercounter refrigeration equipment to support proper door alignment and sealing during frequent opening and closing cycles. A worn or loose hinge can cause doors to sag or close improperly, resulting in cooling loss and additional strain on the refrigeration system. Replacing the hinge assembly can help restore smooth door movement, maintain proper sealing, and support stable cabinet conditions during daily operation.

Equipment Compatibility:
This Beverage Air cartridge hinge kit is commonly used in commercial reach-in refrigerators and freezers, undercounter units, and foodservice prep tables. This Cartridge Hinge Kit 00C34-030D-01 is designed for use on commercial equipment from leading manufacturers such as Beverage Air, Hoshizaki, Traulsen, Master-Bilt, Silver King, Victory, Nor-Lake, and more, where smooth door operation and proper sealing alignment are essential for reliable performance.

Brand Compatibility:
This hinge kit is compatible with several part numbers used in Beverage Air, Hobart, Hoshizaki, Traulsen, Master-Bilt, Silver King, Nor-Lake, and other commercial refrigeration equipment lines. Complete cross-reference details are provided separately for compatibility verification.

Product Specifications:
Manufacturer: Beverage Air
SKU: 00C34-030D-01
Product Type: Cartridge Hinge Kit
Top Diameter: 3" OD
Mount Hole Spacing: 1" Centers
Body Length: 3-13/16"
Bracket Compatibility: Left or Right
Application: Commercial Refrigeration Door Hinge Assembly
Type: Single-Acting Cylinder, Double-Acting Cylinder, or Spring-Loaded Cylinder

Key Features:

  • Cartridge-style design supports smooth and stable door movement in commercial refrigeration equipment
  • Precision-fit mounting dimensions help maintain proper door alignment during operation
  • Compatible with left- or right-side bracket installations for flexible equipment fitment
  • Helps reduce door sagging and alignment issues caused by worn hinge assemblies
  • Supports proper door sealing to help maintain stable cabinet temperatures
Replaces Parts
BEVERAGE AIR:
00C34-030D-01, 00C34030D01, 401-216A-01, 401-454A-01, BEV401-216A-01, BEV401-454A-01
CHG:
A1808, CHGR56-1010, GR56-1010, R56-1010
HOSHIZAKI:
3A6258-01, HOS3A6258-01
KAIRAK:
KROWNE:
NORLAKE:
SILVER KING:
43425, 99467, SVK99467
STANDARD KEIL:
STAR MFG:
TRAULSEN:
VICTORY:
