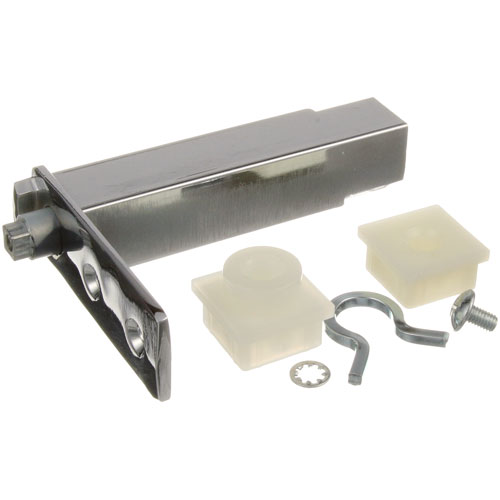

Nor-Lake 015124 Door Hinge Cartridge Assembly

SKU: 015124 1-015124 Brand:
Nor-Lake
Availability:
In Stock
(0)
$14.02 Price reduced from $53.09
Save $39.07
Have a Question? +1 (866) 863-0907

Specifications:

  • Power Cartridge, Top 3" Od W/ 1" Ctrs Mount Holes
  • Body 3-13/16" Long
  • Used Wih Left Or Right Mounting Brackets
  • Series Chg R56, Standard Kiel 2856,
  • Beverage Air Cfg24, Cfg36, Cfg48, Cfg74, Crg24, Crg36,
  • Crg48, Crg74, Kf12, Kf24, Kf36, Kf48, Kf74, Kr12, Kr24,
  • Kr36, Kr48, Kr74, Ucr27
  • Norlake Refrigerator Nr(211,482,763), Lr(152,192)
  • Freezer Nf(211,482,763), Zf081Sms-22 (Dq Topping Freezer)
  • T-23-2, Tssu 36-12Mb, Tssu 48-18Mb, Tssu Series, Tssu-48,
  • Tssu-48-8-47, Tuc-48, Tuc-60, Tuc27F, Twt-48, Twt-60, Twtf
  • Traulsen Cu27, Cu48, Cu60, G12000, G12001, Tu048Qc

Description

The Nor-Lake 015124 Door Hinge Cartridge Assembly is used to control the movement of the doors by an internal cartridge that regulates the pivot and movement of the door on opening and closing. The hidden mechanism involves the use of built-in parts to move the door along a predetermined axis and the tension of springs. This hinge is fixed in the door frame either at the top or bottom of the cabinet opening and is not visible when the door is closed. It is designed to fit the compatible equipment doors so that the door is aligned with the cabinet structure.

Dimensions:

  • Weight: 0.52 lbs
  • Length: 4.5 in
  • Height: 4.5 in
  • Width: 3.13 in

BEVERAGE AIR:

00C34-030D-01 00C34030D01 401-216A-01 401-454A-01 BEV401-216A-01 BEV401-454A-01

CHG:

A1808 CHGR56-1010 GR56-1010 R56-1010

HOBART:

00-430797 430797

HOSHIZAKI:

3A6258-01 HOS3A6258-01

KAIRAK:

282543

KROWNE:

BC-591

MASTERBILT:

35-01866 MBN015124 N015124

RANDELL:

HD HNG0101 HDHNG0101

SILVER KING:

43425 99467 SVK99467

STANDARD KEIL:

2856-1010-1000

STAR MFG:

SP700-1

STERO:

2HAH0700-001

TRAULSEN:

282543 TR282543

VICTORY:

50866401

VULCAN HART:

00-430797 430797 431047-1 436012-1 VH00-430797 VH430797 VH431047-1 VH436012-1

Step1: Disconnect power to the refrigeration unit before starting installation.

Step2: Open the door and support it securely to prevent shifting.

Step3: Remove the damaged hinge cartridge assembly using the appropriate screwdriver or wrench.

Step4: Align the new Nor-Lake 015124 hinge cartridge assembly with the mounting holes.

Step5: Tighten all hardware securely without over-tightening.

Step6: Test the door for smooth opening and proper alignment before restoring power.

  • What maintenance is required for the Nor-Lake 015124 Door Hinge Cartridge Assembly?

    Regularly inspect the hinge cartridge assembly for loose mounting hardware, wear, or alignment issues. Keep the hinge area clean and free from debris to ensure smooth door movement. Disconnect power and support the door properly before performing maintenance or adjustments.

  • What are common issues with the Nor-Lake 015124 Door Hinge Cartridge Assembly?

    • Door misalignment causing improper sealing.
    • Excessive resistance or stiffness during door movement.
    • Worn hinge components producing noise or sagging.
    • Loose hardware leading to unstable door operation.
