Beverage Air 00C34030D01 Concealed Hinge

SKU: 00C34030D01 1-00C34030D01 Brand: Availability:
In Stock
(0)

$14.02 Price reduced from $53.09
Save $39.07


Have a Question? +1 (866) 863-0907

Specifications:

  • Power Cartridge, Top 3" Od W/ 1" Ctrs Mount Holes
  • Body 3-13/16" Long
  • Used Wih Left Or Right Mounting Brackets
  • Series Chg R56, Standard Kiel 2856,
  • Beverage Air Cfg24, Cfg36, Cfg48, Cfg74, Crg24, Crg36,
  • Crg48, Crg74, Kf12, Kf24, Kf36, Kf48, Kf74, Kr12, Kr24,
  • Kr36, Kr48, Kr74, Ucr27
  • Norlake Refrigerator Nr(211,482,763), Lr(152,192)
  • Freezer Nf(211,482,763), Zf081Sms-22 (Dq Topping Freezer)
  • T-23-2, Tssu 36-12Mb, Tssu 48-18Mb, Tssu Series, Tssu-48,
  • Tssu-48-8-47, Tuc-48, Tuc-60, Tuc27F, Twt-48, Twt-60, Twtf
  • Traulsen Cu27, Cu48, Cu60, G12000, G12001, Tu048Qc

Description

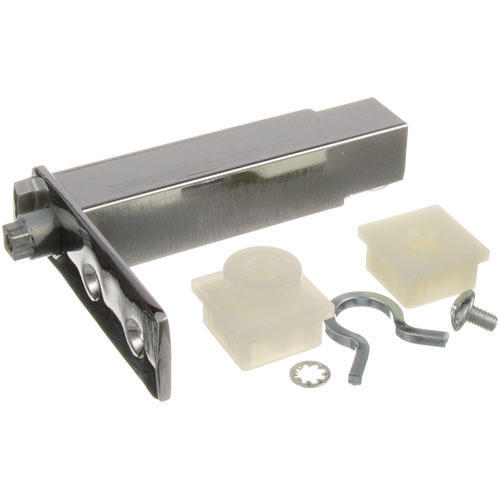

The Beverage Air 00C34030D01 Concealed Hinge controls the movement of the door by employing an internal spring and cam system to control the opening and closing motion. The hidden cartridge directs the door through a fixed pivot as it manages tension when used repeatedly. This hinge is fitted in the door frame and is not visible at the top or bottom of the cabinet opening. It is designed to be a self-contained assembly, which is compatible with other doors and frames to aid in alignment.

Dimensions:

  • Weight: 0.52 lbs
  • Length: 4.5 in
  • Height: 4.5 in
  • Width: 3.13 in
