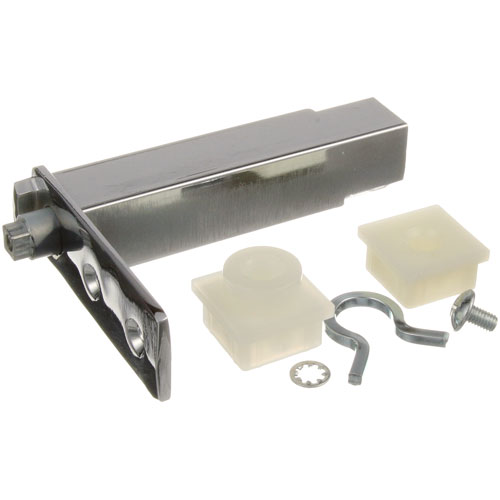

Beverage Air 00C34-030D-01 Reach-In Refrigerator Cartridge Hinge Kit

This hinge assembly is a cartridge-type hinge designed for use on commercial refrigeration doors, providing smooth and controlled door movement while maintaining a stable pivot point between the door and cabinet frame. A 3" outside diameter top section, 1" center mounting hole spacing, and 3-13/16" body length help ensure proper alignment and seating within compatible hinge brackets for consistent operation in heavy-use environments. This hinge kit is commonly used in reach-in coolers, freezers, prep tables, and undercounter refrigeration equipment to support proper door alignment and sealing during frequent opening and closing cycles. A worn or loose hinge can cause doors to sag or close improperly, resulting in cooling loss and additional strain on the refrigeration system. Replacing the hinge assembly can help restore smooth door movement, maintain proper sealing, and support stable cabinet conditions during daily operation.

Equipment Compatibility:
This Beverage Air cartridge hinge kit is commonly used in commercial reach-in refrigerators and freezers, undercounter units, and foodservice prep tables. This Cartridge Hinge Kit 00C34-030D-01 is designed for use on commercial equipment from leading manufacturers such as Beverage Air, Hoshizaki, Traulsen, Master-Bilt, Silver King, Victory, Nor-Lake, and more, where smooth door operation and proper sealing alignment are essential for reliable performance.

Brand Compatibility:
This hinge kit is compatible with several part numbers used in Beverage Air, Hobart, Hoshizaki, Traulsen, Master-Bilt, Silver King, Nor-Lake, and other commercial refrigeration equipment lines. Complete cross-reference details are provided separately for compatibility verification.

Product Specifications:
Manufacturer: Beverage Air
SKU: 00C34-030D-01
Product Type: Cartridge Hinge Kit
Top Diameter: 3" OD
Mount Hole Spacing: 1" Centers
Body Length: 3-13/16"
Bracket Compatibility: Left or Right
Application: Commercial Refrigeration Door Hinge Assembly
Type: Single-Acting Cylinder, Double-Acting Cylinder, or Spring-Loaded Cylinder

Key Features:

• Cartridge-style design supports smooth and stable door movement in commercial refrigeration equipment
• Precision-fit mounting dimensions help maintain proper door alignment during operation
• Compatible with left- or right-side bracket installations for flexible equipment fitment
• Helps reduce door sagging and alignment issues caused by worn hinge assemblies
• Supports proper door sealing to help maintain stable cabinet temperatures

Step1: Disconnect power from the appliance before beginning.

Step2: Remove the old hinge by unscrewing it and carefully detaching the power cartridge.

Step3: Position the new hinge in place, aligning mounting holes precisely.

Step4: Secure the hinge with the screws provided, ensuring it is tight but not over-torqued.

Step5: Reconnect the power cartridge according to the wiring instructions.

Step6: Restore power and test door movement to confirm smooth operation.
