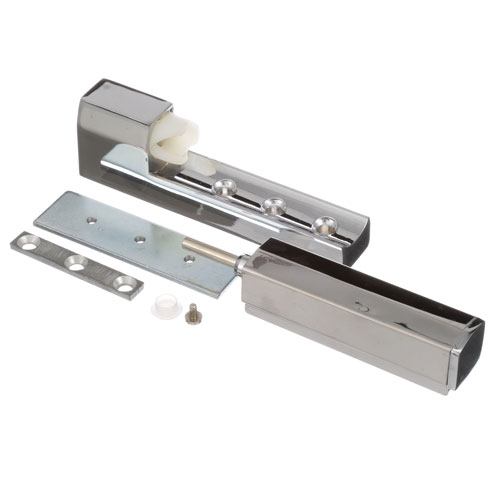

Hobart 01-3PB045 Door Hinge Assembly

SKU: 01-3PB045 1-01-3PB045 Brand:
Hobart
Availability:
In Stock
(1)
$103.66 Price reduced from $195.22
Save $91.56
Have a Question? +1 (866) 863-0907

Description

The Hobart 01-3PB045 Door Hinge assembly enables a door or panel to swing easily by attaching it to the frame and directing the rotational movement. It works with pins and mounting points, that allow regulated swinging movement during opening and closing. This hinge is mounted at the door edge of the equipment, usually the one on which the door is attached to the main body. The parts are compatible with the door and cabinet to facilitate the right movement. Its positioning makes the door return to the closed position and remain in the same position with the frame when used normally.

Dimensions:

  • Weight: 1.08 lbs
  • Length: 6 in
  • Height: 1.5 in
  • Width: 2 in

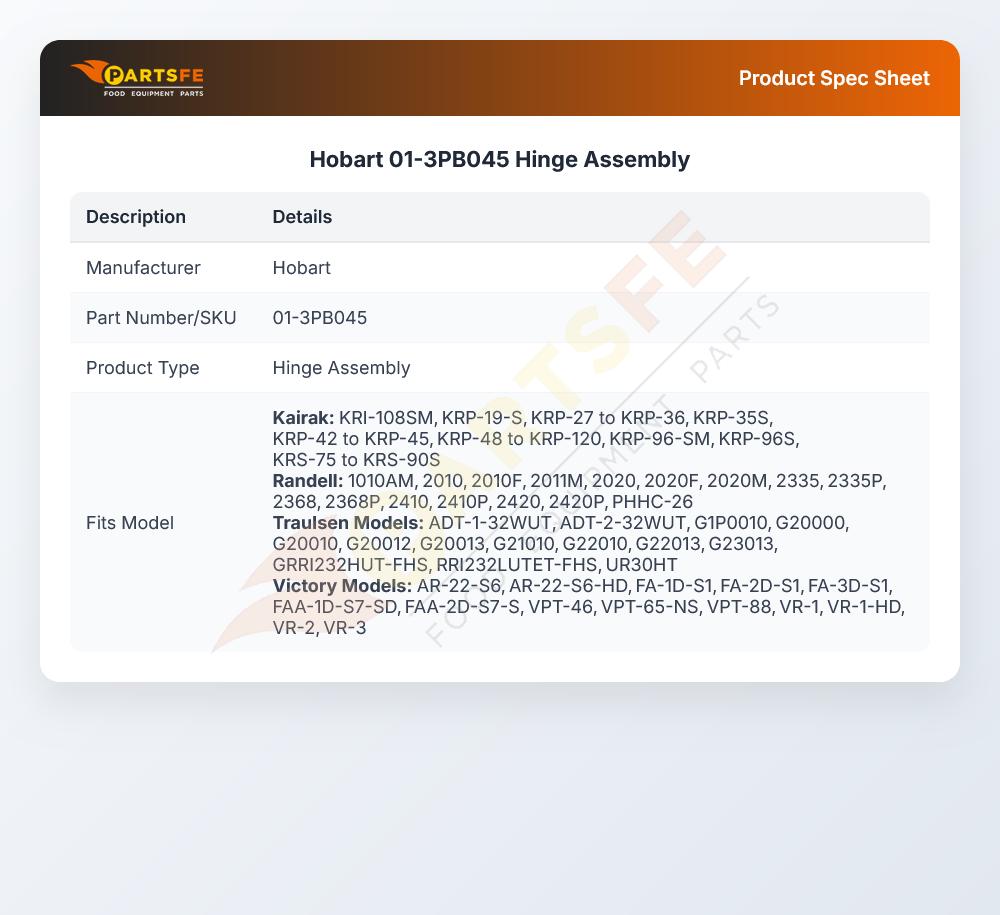

CHG:

CHGR50-2850 R50-2850

FOGEL:

HA349 HA349A

FRANKLIN CHEF:

611505

HOBART:

HOB01-3PB045

KAIRAK:

28583 3801310 SER-28583-00 SK-HINGE

RANDELL:

HD HIN0001 HD HIN400 HDHIN0001 HDHIN400 RDHD HIN0001 RDHD HIN400 RDHDHIN0001 RDHDHIN400

STANDARD KEIL:

2850-1013-1110

STAR MFG:

SP880-1 SP880-3

STERO:

2HAL0880-003 2HAL0880-01

TRAULSEN:

28583 SER-28583-00 TRSER-28583-00

VICTORY:

10685101 50520101 VT10685101 VT50520101

Step1: Disconnect power and ensure equipment is stable before starting.

Step2: Remove old hinge assembly using proper wrench, and remove any cover panels.

Step3: Align new hinge assembly with mounting points on door frame.

Step4: Secure with original or compatible fasteners, tighten evenly to avoid misalignment.

Step5: Check alignment and smooth movement of the door hinge operation.

Step6: Restore power and test door for proper function.

  • What maintenance is required for the Hobart 01-3PB045 Hinge Assembly?

    Regularly clean and lubricate the hinge assembly to prevent friction and corrosion. Inspect and tighten mounting hardware to ensure proper alignment and smooth door movement. This reduces wear and ensures secure operation during equipment use.

  • What are common issues with the Hobart 01-3PB045 Hinge Assembly?

    • Door misalignment causing improper closure.
    • Stiff hinge movement or binding operation.
    • Worn hinge pins leading to instability.
    • Loose screws or mounting hardware failure.
    • Corrosion causes reduced movement efficiency.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Smooth Movement
    Bronsonn —

    Smooth movement, solid hinge design
