Fogel HA349A Hinge Assembly

SKU: HA349A 1-HA349A Brand:
Fogel
Availability:
In Stock
(1)
$103.66 Price reduced from $195.22
Save $91.56
Have a Question? +1 (866) 863-0907

Description

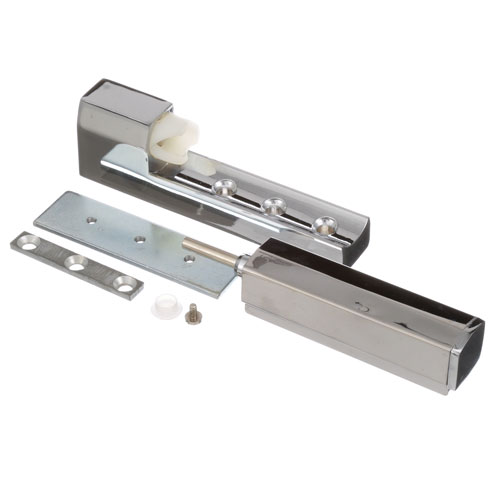

The Fogel HA349A Hinge Assembly operates on a cam-lift mechanism whereby a rising helical ramp is used to raise the door a little during the rotation of the door. This mechanical design involves the use of gravity to draw the door back down the ramp so that it acts as a self-closing mechanism to keep the door tightly sealed when the door is released. The component is attached to the door edge and the cabinet frame and, in particular, needs an offset to match the unit face.

Dimensions:

  • Weight: 1.08 lbs
  • Length: 6 in
  • Height: 1.5 in
  • Width: 2 in

BAKERS AID:

01-3PB045

CHG:

CHGR50-2850 R50-2850

FOGEL:

HA349

FRANKLIN CHEF:

611505

HOBART:

01-3PB045 HOB01-3PB045

KAIRAK:

28583 3801310 SER-28583-00 SK-HINGE

RANDELL:

HD HIN0001 HD HIN400 HDHIN0001 HDHIN400 RDHD HIN0001 RDHD HIN400 RDHDHIN0001 RDHDHIN400

STANDARD KEIL:

2850-1013-1110

STAR MFG:

SP880-1 SP880-3

STERO:

2HAL0880-003 2HAL0880-01

TRAULSEN:

28583 SER-28583-00 TRSER-28583-00

VICTORY:

10685101 50520101 VT10685101 VT50520101

Step1: Open the door or panel to access the old hinge.

Step2: Unscrew and remove the old hinge carefully.

Step3: Inspect the mounting area for damage or wear.

Step4: Position the new hinge assembly in the same orientation.

Step5: Secure screws tightly without overtightening.

Step6: Check the door alignment and make minor adjustments if necessary.

Step7: Test the door movement to ensure smooth operation.

  • What maintenance is required for the Fogel HA349A Hinge Assembly?

    Lubricate moving parts regularly with light oil to prevent squeaking. Inspect for loose screws or misalignment and tighten as needed. Proper maintenance ensures smooth operation and prevents structural pressure on attached panels.

  • What are the common issues with the Fogel HA349A Hinge Assembly?

    • Squeaking or stiffness during movement.
    • Loose or stripped screws.
    • Misalignment is causing the door or panel to bind.
    • Wear or bending of hinge components.
