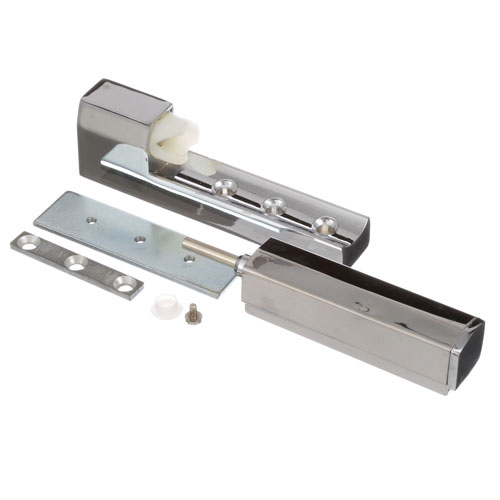

Victory VT10685101 Hinge Assembly

SKU: VT10685101 1-VT10685101 Brand:
Victory
Availability:
In Stock
(0)
$103.66 Price reduced from $195.22
Save $91.56
Have a Question? +1 (866) 863-0907

Description

The Victory VT10685101 Hinge Assembly is used to attach a door to a cabinet frame so that it can pivot at specified points and support the weight of a door. The motion is regulated by brackets and a central hinge mechanism so that the door does not swing without being even. It is mounted on the side of refrigeration or storage unit doors, where it is installed so as to fit well with the cabinet and operate easily. The assembly allows the door to be held firmly, and the opening and closing action remains constant with time.

Dimensions:

  • Weight: 1.08 lbs
  • Length: 6 in
  • Height: 1.5 in
  • Width: 2 in

BAKERS AID:

01-3PB045

CHG:

CHGR50-2850 R50-2850

FOGEL:

HA349 HA349A

FRANKLIN CHEF:

611505

HOBART:

01-3PB045 HOB01-3PB045

KAIRAK:

28583 3801310 SER-28583-00 SK-HINGE

RANDELL:

HD HIN0001 HD HIN400 HDHIN0001 HDHIN400 RDHD HIN0001 RDHD HIN400 RDHDHIN0001 RDHDHIN400

STANDARD KEIL:

2850-1013-1110

STAR MFG:

SP880-1 SP880-3

STERO:

2HAL0880-003 2HAL0880-01

TRAULSEN:

28583 SER-28583-00 TRSER-28583-00

VICTORY:

10685101 50520101 VT50520101

Step1: Open the door and support it securely.

Step2: Remove screws holding the old hinge and take it off.

Step3: Align the new hinge assembly and attach it with screws.

Step4: Check door alignment and adjust if needed.

Step5: Open and close the door to ensure smooth movement.

  • What maintenance is required for the Victory VT10685101 Hinge Assembly?

    Lubricate hinge pivot points and inspect screws for tightness. Check alignment and movement to ensure efficient door operation and prevent uneven damage or binding.

  • What are common issues with the Victory VT10685101 Hinge Assembly?

    • Door sagging or misalignment.
    • Noisy or stiff movement.
    • Loose screws reducing stability.
    • Metal wear or deformation.
    • Hinge binding during repeated use.
