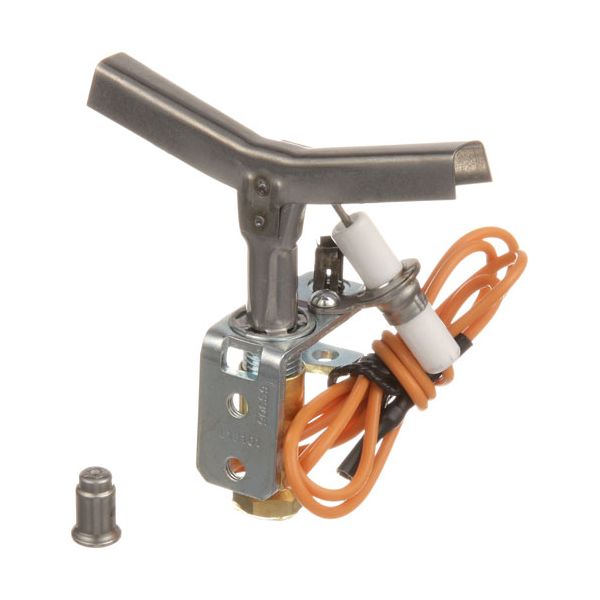

main product photo

Imperial 1098 1/4" Tube Pilot Assembly W/ Spark Plug End & No Orifice

Be the first to review this product
Special Price $57.62 Regular Price $117.59
In stock
SKU
1098
Add to Wish List
Griddle & Grill Parts, Pilot Assembly, Shop by manufacturers
Manufacturer:
The Imperial 1098 tube pilot assembly with spark plug end and no orifice works well for NAT/LP pilot setups in commercial ovens. This assembly has a 3" top hood, uses 1/4" tubes, and creates 3 different flame shapes to help you light and control your fire exactly. The assembly includes a 30" wire for the electrode and has two types of orifices .016" for LP and .026" for NAT that can be used interchangeably. It works with many oven models to keep areas safe and efficient by giving steady flame output.

Dimensions

  • Length: 7 In
  • Width: 4 In
  • Height: 1 In
  • Weight: 0.18 lbs
https://partsfe.com/media/catalog/product/i/m/imperial-1098-1-4-tube-pilot-assembly-w-spark-plug-end-no-orifice-86810-2.jpg

Product Notes

  • Nat/Lp Pilot, Factory # 6S306, 3" Top Hood, Tube Size 1/4",
  • Flame Pattern 3 Way, W/Electrode 30" Wire, 1/4" Cct Long
  • Nut, Used W/ T-Couple Only, 30" Orange Wire
  • With 1/8" Flat Push-On.
  • Includes Lp Orifice, .016", # 26-1556
  • Includes Nat Orifice, .026", # 26-1557
  • Henny Penny Oea-(341, 342), Ofe-(321, 322, 323, 341, 342),
  • Ofg-(321, 322, 323, 341, 342)
  • Imperial Oven Series: Icv, Icvd.
  • Tri-Star
HENNY PENNY:
IMPERIAL:
MARKET FORGE:
TRI-STAR:
Reviews
Write Your Own Review
You're reviewing:Imperial 1098 1/4" Tube Pilot Assembly W/ Spark Plug End & No Orifice
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Imperial 1098 Pilot Assembly?

Check for bends, cracks, or buildup in the tube. Ensure the spark plug connection is clean and securely attached. Test ignition regularly to maintain accurate and efficient flame operation.

What are the common issues with the Imperial 1098 Pilot Assembly?

  • Difficulty generating spark consistently.
  • Tube obstruction reduces gas flow.
  • Loose spark plug connections.
  • Cracks or warping of the pilot tube.
  • Flame instability is causing inefficient ignition.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off the gas supply and power to the appliance before installation.

Step2: Remove the old pilot assembly carefully, noting orientation and connections.

Step3: Insert the new pilot assembly, ensuring the spark plug end is correctly positioned.

Step4: Secure all fittings and connections without over-tightening.

Step5: Restore gas supply and power, then ignite the pilot to confirm proper operation.

Step6: Verify that the pilot flame is stable and consistent for secure operation.
