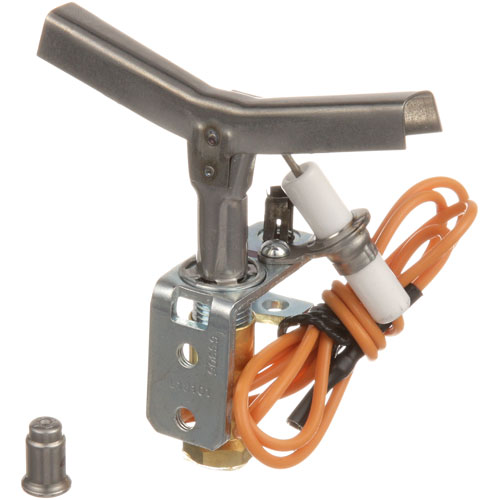

Market Forge 93-0009 Pilot Assembly W/ Spark Plug 1/4" Tube

SKU: 93-0009 1-93-0009 Brand:
Market Forge
Availability:
In Stock
(0)
$59.07 Price reduced from $117.59
Save $58.52
Have a Question? +1 (866) 863-0907

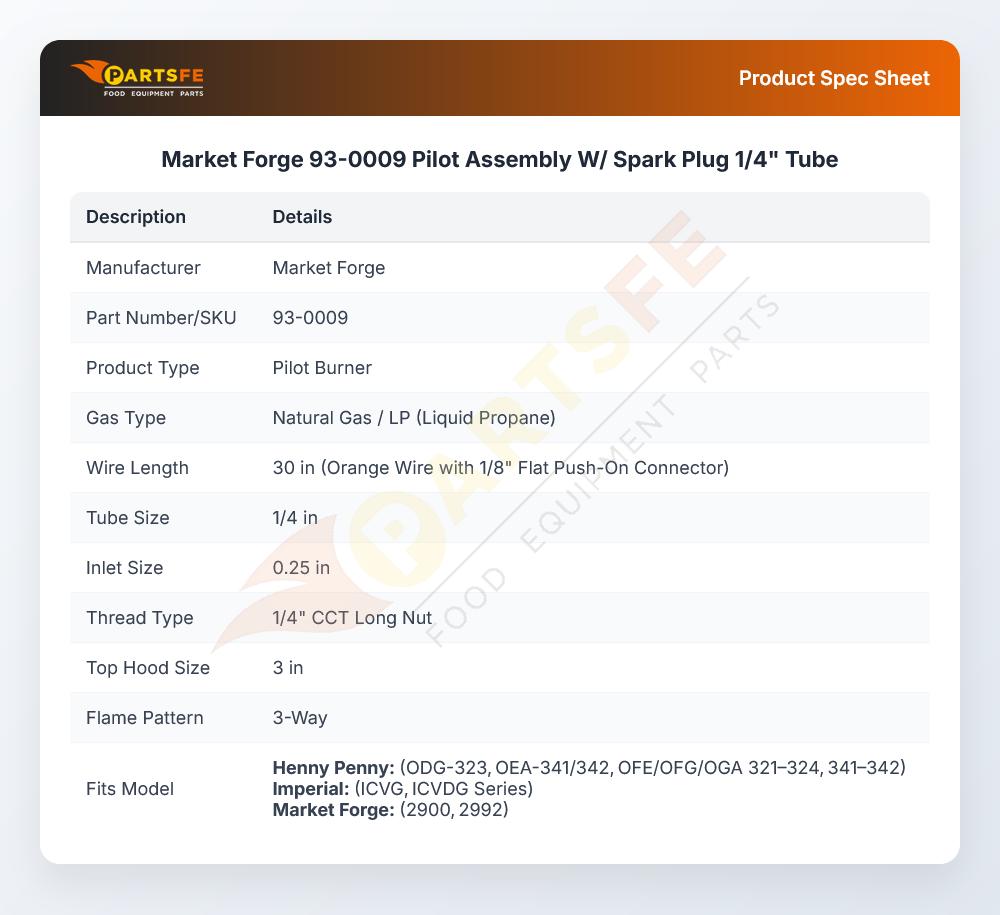

Specifications:

  • Nat/Lp Pilot, Factory # 6S306, 3" Top Hood, Tube Size 1/4",
  • Flame Pattern 3 Way, W/Electrode 30" Wire, 1/4" Cct Long
  • Nut, Used W/ T-Couple Only, 30" Orange Wire
  • With 1/8" Flat Push-On.
  • Includes Lp Orifice, .016", # 26-1556
  • Includes Nat Orifice, .026", # 26-1557
  • Henny Penny Oea-(341, 342), Ofe-(321, 322, 323, 341, 342),
  • Ofg-(321, 322, 323, 341, 342)
  • Imperial Oven Series: Icv, Icvd.
  • Tri-Star

Description

The Market Forge 93-0009 Pilot Assembly with Spark Plug serves as a premium replacement part that ensures dependable ignition in kitchen steamer and cooking devices. This component operates through a 1/4" tube to provide effective gas flow which achieves stable performance. Operation efficiency improves because the built-in spark plug enables quick reliable ignition that prevents equipment downtime. The assembly comes with simple installation features that streamline maintenance operations to benefit improve kitchens that operate at high speeds. The product maintains its performance over time because of its sturdy build which reduces replacement requirements.

Dimensions:

  • Weight: 0.18 lbs
  • Length: 7 in
  • Height: 1 in
  • Width: 4 in

HENNY PENNY:

60266 71981

IMPERIAL:

1097 1098

MARKET FORGE:

93-0010

TRI-STAR:

AS-340131

Step1: Turn off gas and electrical supply and allow unit to cool completely.

Step2: Remove access panel and disconnect old pilot assembly noting tubing and wiring routing.

Step3: Install new pilot assembly into mounting bracket and align tube connection securely.

Step4: Apply approved leak detection to gas connection and tighten fittings properly.

Step5: Reconnect spark ignition wire and restore panel.

Step6: Restore gas, test ignition, check for leaks and proper flame.

  • What maintenance is required for the Market Forge 93-0009 Pilot Assembly W/ Spark Plug?

    Keep the pilot assembly clean by removing grease and debris from the spark plug and tube. Inspect connections for tightness and signs of wear or corrosion. Ensure proper ignition alignment and check gas flow regularly. Disconnect power and gas supply before servicing.

  • What are common issues with the Market Forge 93-0009 Pilot Assembly W/ Spark Plug?

    • Pilot fails to ignite or stay lit.
    • Weak or inconsistent spark from the plug.
    • Gas flow obstruction in the tube.
    • Loose or damaged electrical connections.
    • Carbon buildup affecting ignition performance.
