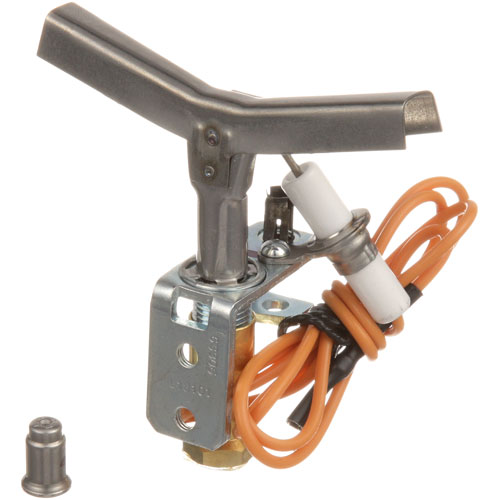

Imperial 1098 1/4" Tube Pilot Assembly W/ Spark Plug End & No Orifice

SKU: 1098 1-1098 Brand:
Imperial
Availability:
In Stock
(0)
$59.07 Price reduced from $117.59
Save $58.52
Have a Question? +1 (866) 863-0907

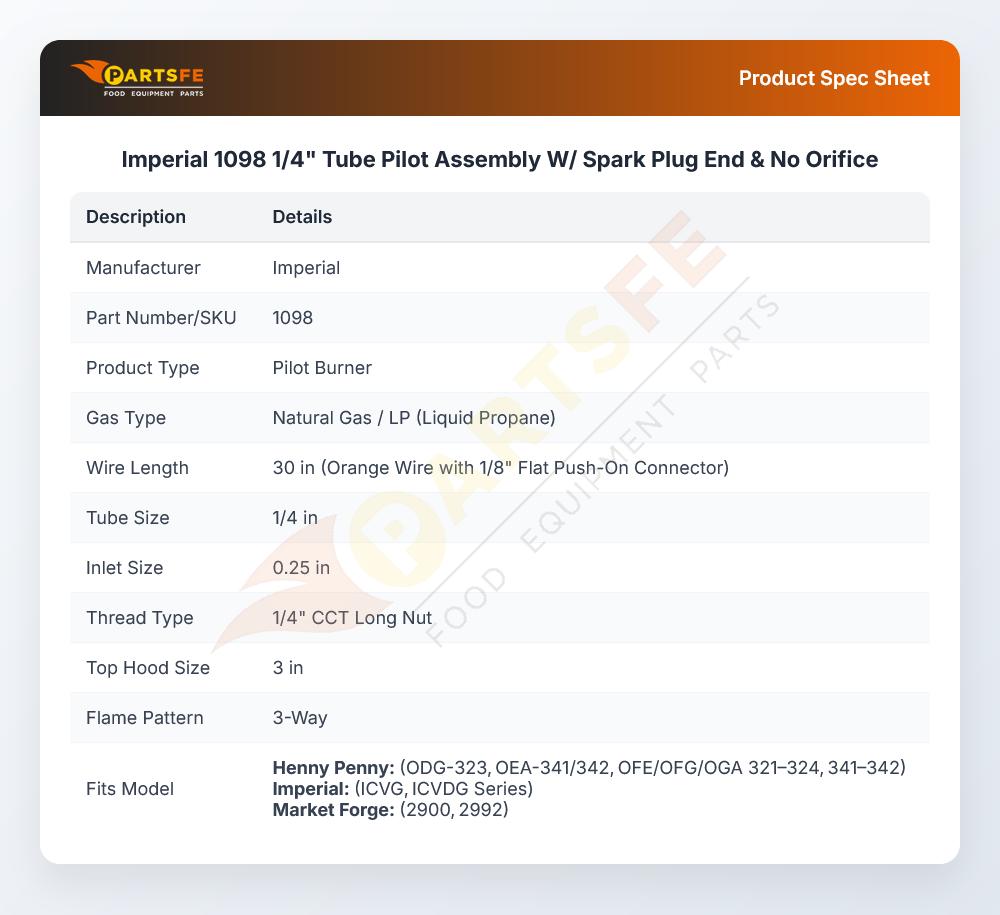

Specifications:

  • Nat/Lp Pilot, Factory # 6S306, 3" Top Hood, Tube Size 1/4",
  • Flame Pattern 3 Way, W/Electrode 30" Wire, 1/4" Cct Long
  • Nut, Used W/ T-Couple Only, 30" Orange Wire
  • With 1/8" Flat Push-On.
  • Includes Lp Orifice, .016", # 26-1556
  • Includes Nat Orifice, .026", # 26-1557
  • Henny Penny Oea-(341, 342), Ofe-(321, 322, 323, 341, 342),
  • Ofg-(321, 322, 323, 341, 342)
  • Imperial Oven Series: Icv, Icvd.
  • Tri-Star

Description

The Imperial 1098 tube pilot assembly with spark plug end and no orifice works well for NAT/LP pilot setups in commercial ovens. This assembly has a 3" top hood, uses 1/4" tubes, and creates 3 different flame shapes to help you light and control your fire exactly. The assembly includes a 30" wire for the electrode and has two types of orifices .016" for LP and .026" for NAT that can be used interchangeably. It works with many oven models to keep areas safe and efficient by giving steady flame output.

Dimensions:

  • Weight: 0.18 lbs
  • Length: 7 in
  • Height: 1 in
  • Width: 4 in

HENNY PENNY:

60266 71981

IMPERIAL:

1097

MARKET FORGE:

93-0009 93-0010

TRI-STAR:

AS-340131

Step1: Turn off the gas supply and power to the appliance before installation.

Step2: Remove the old pilot assembly carefully, noting orientation and connections.

Step3: Insert the new pilot assembly, ensuring the spark plug end is correctly positioned.

Step4: Secure all fittings and connections without over-tightening.

Step5: Restore gas supply and power, then ignite the pilot to confirm proper operation.

Step6: Verify that the pilot flame is stable and consistent for secure operation.

  • What maintenance is required for the Imperial 1098 Pilot Assembly?

    Check for bends, cracks, or buildup in the tube. Ensure the spark plug connection is clean and securely attached. Test ignition regularly to maintain accurate and efficient flame operation.

  • What are the common issues with the Imperial 1098 Pilot Assembly?

    • Difficulty generating spark consistently.
    • Tube obstruction reduces gas flow.
    • Loose spark plug connections.
    • Cracks or warping of the pilot tube.
    • Flame instability is causing inefficient ignition.
