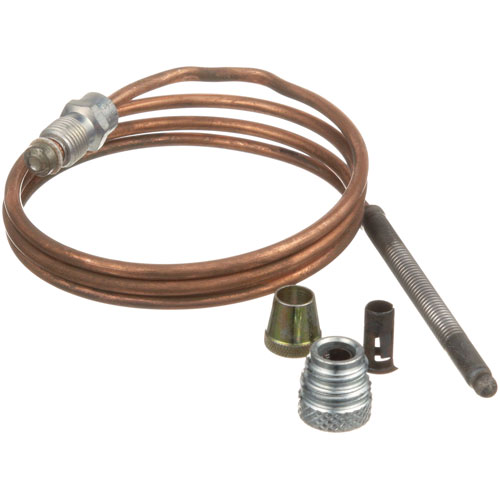

Imperial 1138 Range Thermocouple 30"

SKU: 1138 1-1138 Brand:
Imperial
Availability:
In Stock
(1)
$92.08 Price reduced from $141.88
Save $49.80
Have a Question? +1 (866) 863-0907

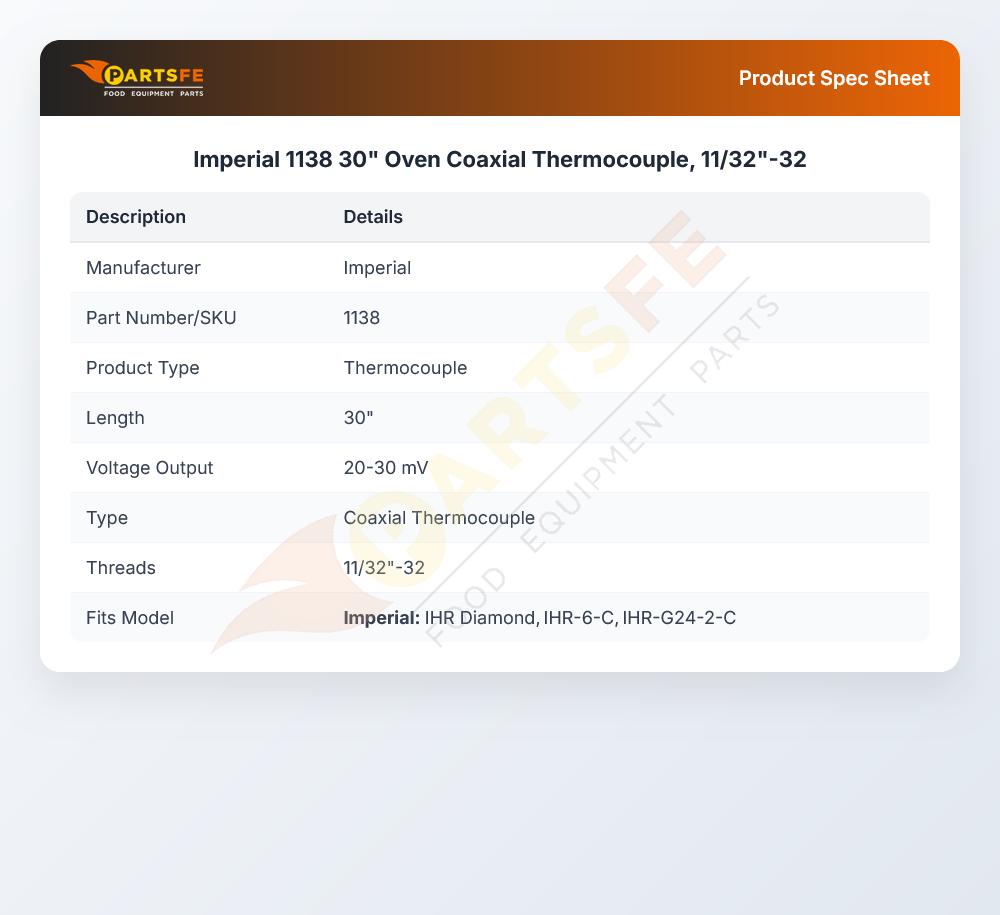

Specifications:

  • 1970 Series, 30" Thermocouple, 20-30 Mv
  • Coaxial Thermocouple Threads = 11/32"-32.
  • Imperial Oven Series: Ihr & Ir W/Standard Oven.
  • Montague Oven 28, 28Cbsf, 136, V136, Vg26.
  • Series: G, Montague Ii R.

Description

The Imperial 1138 Range Thermocouple 30" is a temperature sensor system that ensures the burner is operating in the commercial setting. It identifies a flame and commands the gas valve to stay open to assist in maintaining steady operation in foodservice settings. It is installed in the ignition system of the range commonly used in restaurant kitchens and serves as a safety and control component that the burner is activated and to prevent interruptions. This thermocouple allows a stable connection between the source of flame and the control mechanism of the appliance.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 5.75 in
  • Height: 0.5 in
  • Width: 5 in

Step1: Turn off the gas supply and disconnect power to the oven.

Step2: Allow the oven to cool completely before servicing.

Step3: Remove the old thermocouple from the pilot assembly and gas valve connection.

Step4: Position the new thermocouple securely in the same location.

Step5: Tighten fittings carefully without overtightening.

Step6: Restore gas and power, then test the pilot flame and oven operation.

Step7: Check for gas leaks and ensure all connections are secure.

  • What maintenance is required for the Imperial 1138 Coaxial Thermocouple?

    Inspect and clean the thermocouple tip and connection regularly to ensure accurate temperature sensing. Keep terminals tight and free from corrosion. Proper maintenance ensures accurate oven temperature control and prevents intermittent heating or ignition issues safely.

  • What are common issues with the Imperial 1138 Coaxial Thermocouple?

    • Faulty temperature readings causing inaccurate oven heating control.
    • Intermittent ignition failure leading to inconsistent burner operation.
    • Loose or corroded connections resulting in signal loss.
    • Broken or frayed thermocouple wire causing complete sensor failure.
