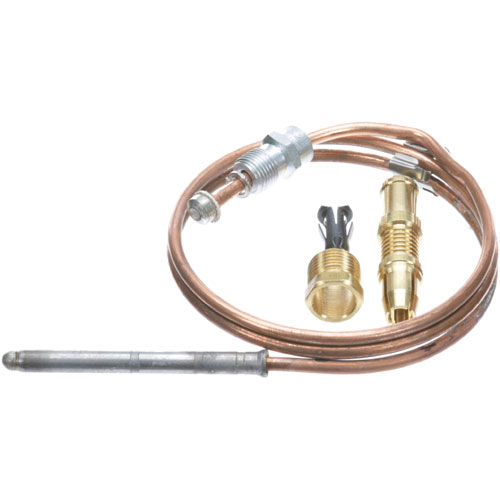

Dean 1149 24" Thermocouple

SKU: 1149 1-1149 Brand:
Dean
Availability:
In Stock
(0)
$19.25 Price reduced from $25.00
Save $5.75
Have a Question? +1 (866) 863-0907

Specifications:

  • 1980 Series Snap Fit 24" Thermocouple, 20-30 Mv
  • Coaxial Thermocouple Threads = 11/32"-32
  • Anets Grill Ss2436.
  • Dean Fryer Where Applicable
  • Dynamic Cooking Systems Oven Where Applicable.
  • Garland Broiler Model?

Description

The Dean 1149 24" Thermocouple is a temperature sensor safety element that is applied in gas-fired commercial cooking systems. It is placed close to the pilot flame in order to sense the heat and produce electrical signal that keeps gas valve open during operation. This thermocouple is usually applied in fryers and other gas appliances where the flame needs to be continuously monitored. When the pilot flame is lost, the signal will be terminated and the gas flow will be cut off. The component is essential in the ignition and the system.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 5 in
  • Height: 0.5 in
  • Width: 4 in

ANETS:

P8900-47

DEAN:

807-3550 8073550

DUKE:

213590

DYNAMIC COOKING SYSTEMS:

13007-3

FRYMASTER:

807-3550 8073550 FM1149 FM807-3550 FM8073550

GARLAND:

4102920 G01754-24

JADE RANGE:

4619900000

KEATING:

4485 KEA4485 KEAP15239L P15239L

METAL MASTERS:

310211

PITCO:

P8900-47

SOUTHBEND:

1173576 1182580 P8900-47

STAR MFG:

2J-Z4609 Z4609

STERO:

STA2J-Z4609 STAZ4609

VULCAN HART:

112788-1 20040 412788-1 920040 921565 VH112788-1 VH20040 VH412788-1 VH920040 VH921565

Step1: Turn off gas supply and shut down fryer completely for safety.

Step2: Allow unit to cool before servicing hot components.

Step3: Remove burner access panel to reach thermocouple assembly.

Step4: Disconnect old thermocouple from pilot bracket and gas valve.

Step5: Snap-fit new thermocouple into pilot bracket securely.

Step6: Connect lead to gas control valve, ensuring tight fit.

Step7: Restore gas and test pilot flame for stable output.

  • What maintenance is required for the Dean 1149 Thermocouple?

    Inspect the thermocouple regularly for corrosion, loose fittings, or burnt probe tips. Ensure it is securely mounted in the proper flame or heat zone for accurate readings. Clean gently to remove carbon buildup and verify wiring connections are tight and free from heat damage.

  • What are common issues with the Dean 1149 Thermocouple?

    • Weak or inconsistent millivolt output.
    • Faulty temperature readings.
    • Broken or corroded probe tip.
    • Loose or damaged connections.
    • Failure to signal gas valve correctly.
    • Intermittent heating shutdowns.
    • Carbon buildup affecting sensing accuracy.
