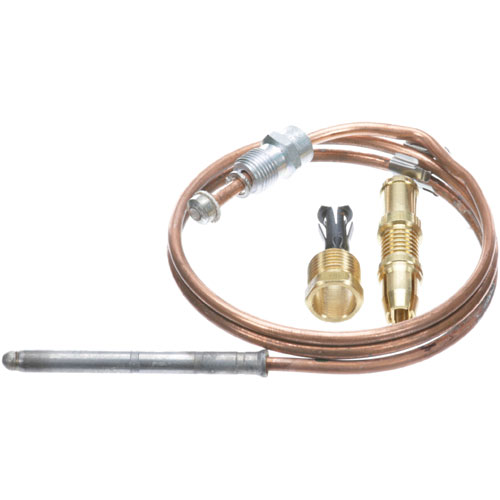

Anets P8900-47 Thermocouple Coaxial Connector 25-35MV

SKU: P8900-47 1-P8900-47 Brand:
Anets
Availability:
In Stock
(0)
$19.25 Price reduced from $25.00
Save $5.75
Have a Question? +1 (866) 863-0907

Specifications:

  • 1980 Series Snap Fit 24" Thermocouple, 20-30 Mv
  • Coaxial Thermocouple Threads = 11/32"-32
  • Anets Grill Ss2436.
  • Dean Fryer Where Applicable
  • Dynamic Cooking Systems Oven Where Applicable.
  • Garland Broiler Model?

Description

The Anets P8900-47 Thermocouple Coaxial Connector 25-35MV is a component of the electrical connection that is used to connect a thermostat to the gas valve or control circuit. It carries the signal of the millivolts produced by the thermocouple when operating the pilot. This connector is applied in commercial gas fryers and cooking systems where the precise transfer of signals is needed. Correct connection can be used to ensure satisfactory flame detection and gas valve reaction. The coaxial connector is used in the ignition safety system and it aids in maintaining unity in communication.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 5 in
  • Height: 0.5 in
  • Width: 4 in

DEAN:

1149 807-3550 8073550

DUKE:

213590

DYNAMIC COOKING SYSTEMS:

13007-3

FRYMASTER:

1149 807-3550 8073550 FM1149 FM807-3550 FM8073550

GARLAND:

4102920 G01754-24

JADE RANGE:

4619900000

KEATING:

4485 KEA4485 KEAP15239L P15239L

METAL MASTERS:

310211

SOUTHBEND:

1173576 1182580

STAR MFG:

2J-Z4609 Z4609

STERO:

STA2J-Z4609 STAZ4609

VULCAN HART:

112788-1 20040 412788-1 920040 921565 VH112788-1 VH20040 VH412788-1 VH920040 VH921565

Step1: Turn off the appliance and allow it to cool completely to avoid burns.

Step2: Remove the old thermocouple by unscrewing it from the gas valve and burner bracket.

Step3: Insert the new thermocouple into the burner bracket in the same position.

Step4: Connect the threaded end to the gas valve securely, hand-tightening only.

Step5: Check alignment to ensure the tip sits properly in the flame.

Step6: Restore power/gas and test operation, observing safety precautions.

  • What maintenance is required for the Anets P8900-47 Thermocouple?

    Inspect the thermocouple tip for dirt, soot, or corrosion. Clean gently and ensure the connection to the gas control is tight. Disconnect power or gas supply before servicing. Proper maintenance ensures accurate flame sensing and stable operation.

  • What are the common issues with the Anets P8900-47 Thermocouple?

    • Burners may fail to ignite or shut off unexpectedly.
    • Inaccurate temperature sensing due to sensor contamination.
    • Loose or corroded connections at the gas valve.
    • Intermittent operation caused by physical damage to the thermocouple.
    • Delayed response affecting burner performance.
