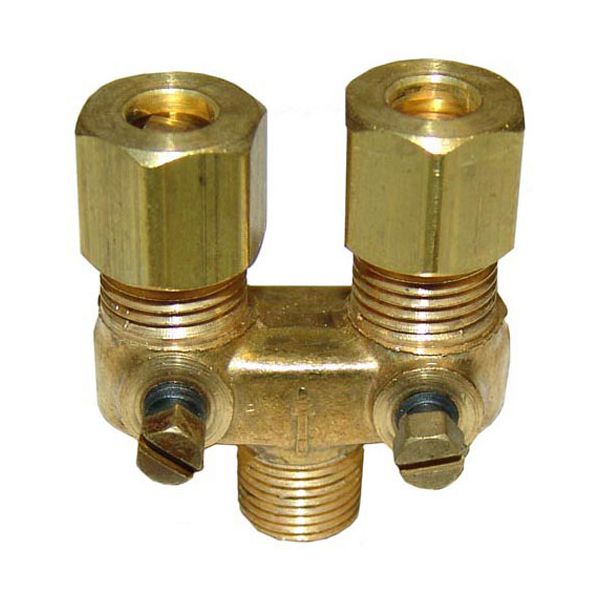

Garland 1510402 Dual Pilot Adjustment Valve 1/8" MPT X 3/16" CCT

Be the first to review this product
Special Price $19.12 Regular Price $28.03
In stock
SKU
1510402
Add to Wish List
Griddle & Grill Parts, Pilot Safety Valves, Shop by manufacturers
Manufacturer:
The Garland 1510402 Dual Pilot Adjustment Valve 1/8" MPT X 3/16" CCT regulates the flow of gas to the pilot burner through an internal valve mechanism that opens on stimulation and closes to stop flow. The pilot circuit needs ignition which is provided by gas flowing into the 1/8 MPT inlet and 3/16 CC outlet of the valve to provide a small, continuous pilot flame. This pilot valve is installed in the gas line near the pilot burner assembly and it is fastened with threaded fittings and aligned with gas control components.

Dimensions

  • Length: 1.2 In
  • Width: 0.7 In
  • Height: 1.5 In
  • Weight: 0.2 lbs
https://partsfe.com/media/catalog/product/g/a/garland-1510402-pilot-valve-1-8-mpt-x-3-16-cc-94475-2.jpg

Product Notes

  • Dual Pilot Adjustment Valve
  • [ 1/8" Mpt X 3/16" Cct ] [Width 1.25"],
  • [ Comes With Twin 3/16" Cct ]
  • American Range, Royal Range
  • Bakers Pride Broiler Series: 50, Ch, Xx, Sgbr
  • Imperial Broiler Series: Eba, Gd, Icb, Irb.
  • Grill Series: Imga.
  • Range Series: Icra, Ispa.
  • Roaster Series: Ipr, Ipra.
  • Rankin-Deluxe Broiler Series: Drb.
  • Southbend Oven Series 400
  • Us Range Broiler Bbq-48, C-Hds-A(24,36,48).
  • Gxc(24,36,48), Gxr(30,36,48,60) Series:Performer, Rg-Hds-A.
  • Wolf Broiler Cmss, Fcb, Scb.
  • Range Ch, Chss.
More Information
Disable SaleableNo
Replaces Parts
AMERICAN RANGE:
10432, A29301, AMRA29301
APW WYOTT:
ATOSA:
BAKERS PRIDE:
2V-R3020A, BKPR3020A, R3020A, R3020X
COMSTOCK CASTLE:
IMPERIAL:
1003, 1003-1, 1608, IMP1608
ROYAL RANGE:
053-AP6-1, 0531-AP6-1, 1211, 53AP6-1, ROY053-AP6-1, ROY53AP6-1
SOUTHBEND:
Reviews
Write Your Own Review
You're reviewing:Garland 1510402 Dual Pilot Adjustment Valve 1/8" MPT X 3/16" CCT
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Garland 1510402 Pilot Valve?

Inspect the pilot valve in the cooking equipment for proper gas flow and ignition. Keep it clean and free of grease buildup. Check connections regularly and shut off the gas supply before performing maintenance for safety.

What are the common issues with the Garland 1510402 Pilot Valve?

  • Pilot flame failing to stay lit consistently.
  • Delayed ignition when starting the unit.
  • Weak or unstable pilot flame.
  • Gas flow irregularities affecting burner operation.
  • Valve not opening properly during use.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Shut off the gas supply completely and allow the appliance to cool before working.

Step2: Remove the old pilot valve from the burner assembly, keeping track of orientation.

Step3: Install the new valve in the same position, securing all fittings tightly to prevent leaks.

Step4: Turn on the gas supply slowly and check all connections using a soap solution.

Step5: Ignite the pilot to verify proper operation and ensure it maintains a steady flame.
