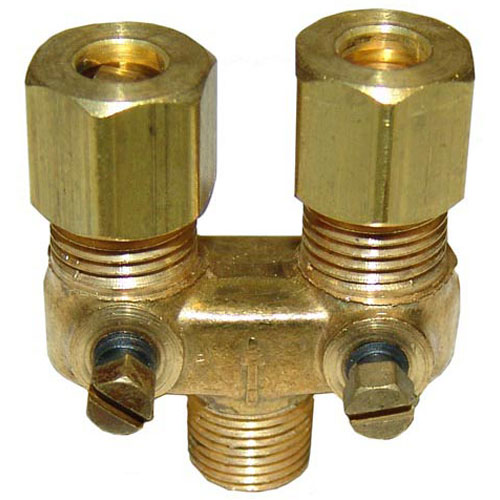

Rankin Delux TB12 Pilot Valve 1/8" MPT X 3/16" CC

SKU: TB12 1-TB12 Brand:
Rankin Delux
Availability:
Out of Stock
(0)
$61.66 Price reduced from $80.08
Save $18.42
Have a Question? +1 (866) 863-0907

Specifications:

  • Dual Pilot Adjustment Valve
  • [ 1/8" Mpt X 3/16" Cct ] [Width 1.25"],
  • [ Comes With Twin 3/16" Cct ]
  • American Range, Royal Range
  • Bakers Pride Broiler Series: 50, Ch, Xx, Sgbr
  • Imperial Broiler Series: Eba, Gd, Icb, Irb.
  • Grill Series: Imga.
  • Range Series: Icra, Ispa.
  • Roaster Series: Ipr, Ipra.
  • Rankin-Deluxe Broiler Series: Drb.
  • Southbend Oven Series 400
  • Us Range Broiler Bbq-48, C-Hds-A(24,36,48).
  • Gxc(24,36,48), Gxr(30,36,48,60) Series:Performer, Rg-Hds-A.
  • Wolf Broiler Cmss, Fcb, Scb.
  • Range Ch, Chss.

Description

The Rankin Delux TB12 Pilot Valve 1/8" MPT X 3/16" CC is a gas control component used in compatible commercial cooking systems. It regulates pilot flame flow by managing low-volume gas flow within the ignition circuit. The valve is connected through 1/8" male pipe thread and a 3/16" compression connection forming part of the pilot assembly within the gas control line. It is used in burner system where stable pilot operation is required for consistent ignition and flame control during routine cooking cycles in food preparation equipment within compatible equipment systems.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 1.2 in
  • Height: 1.5 in
  • Width: 0.7 in

A small but important control component used in commercial gas cooking systems, this pilot adjustment valve helps manage how much gas is sent to the pilot flame. It connects using a 1/8" MPT inlet and 3/16" CCT outlets, which allows it to direct gas flow smoothly to the ignition system. By controlling the pilot flame level, it supports safe and reliable burner startup in heavy-duty kitchen equipment such as broilers, grills, and ranges. This valve plays a key role in making sure gas appliances light properly and stay consistent during use. When the valve becomes old or clogged, the pilot flame may become weak or unstable, which can cause equipment to misfire or fail to start. Replacing it helps bring back normal ignition performance and keeps cooking equipment running more smoothly in busy kitchens where dependable operation is important.

Equipment Compatibility:
Used in gas pilot systems for Rankin Delux TB series and similar commercial cooking equipment, this type of valve is commonly found in broilers, grills, and range units. This Pilot Valve TB12 is compatible with commercial equipment from leading brands such as Bakers Pride, Imperial, Vulcan Hart, Garland, Southbend, Royal Range, and more, where controlled pilot flame adjustment is needed for safe and reliable ignition.

Brand Compatibility:
This component replaces multiple cross-reference part numbers used across compatible commercial cooking equipment from leading brands such as Bakers Pride, Imperial, Vulcan Hart, Garland, Southbend, Royal Range, and more. Full interchange details are provided separately to ensure accurate replacement matching.

Product Specifications:
Product Type: Pilot Adjustment Valve
Manufacturer: Rankin Delux
SKU: TB12
Connection Type: 1/8" MPT inlet, 3/16" CCT outlets
Design: Dual adjustment
Application: Commercial ovens, broilers, ranges, grills

Key Features:

  • The 1/8" MPT and 3/16" CCT connections help guide gas to the pilot light so it can ignite properly every time.
  • The dual adjustment system lets users control the flame so it stays steady and safe.
  • Helps cooking equipment start without delays by improving ignition reliability.
  • Small size allows it to fit easily inside tight spaces in kitchen equipment.
  • Reduces flame problems like flickering by keeping the gas flow balanced.
  • Supports daily kitchen work by making gas equipment more dependable.
  • Used in many commercial cooking machines that need a steady pilot flame.

Installation feedback often mentions more stable pilot flame control and improved ignition reliability after replacing the adjustment valve.

AMERICAN RANGE:

10432 A29301 AMRA29301

APW WYOTT:

2065641

ATOSA:

301030007

BAKERS PRIDE:

2V-R3020A BKPR3020A R3020A R3020X

COMSTOCK CASTLE:

25016

GARLAND:

1150099 1510402 153844 GL1150099 GL1510402

HOBART:

00-409557-00004 00-420786-00001 109557-4 120786-1 19190 409557-00004 409557-4 420786-00001 420786-1 6614 719190 806614

IMPERIAL:

1003 1003-1 1608 IMP1608

RANDELL:

CB-09 CB09 DRB-12 GT-10 RB-12 RDCB-09 RDCM-04 RDGM-14 RDHP-16A RDHP-E-C-16A RDLR-08A SP-14 SSPR-11 SUHP-10 SUHP-E-C-10 TB-12 TB-3-12 TB3-12

RANKIN DELUX:

CB-09 CB09 DRB-12 GT-10 RANRB12 RANTB12 RB-12 RB12 RDCB-09 RDCM-04 RDGM-14 RDHP-16A RDHP-E-C-16A RDLR-08A SP-14 SSPR-11 SUHP-10 SUHP-E-C-10 TB-12 TB-3-12 TB3-12

ROYAL RANGE:

053-AP6-1 0531-AP6-1 1211 53AP6-1 ROY053-AP6-1 ROY53AP6-1

SOUTHBEND:

1166004 SOU1166004

VULCAN HART:

00-409557-00004 00-420786-00001 00-719190 109557-4 120786-1 19190 409557-00004 409557-4 420786-00001 420786-1 6614 719190 806614 VH109557-4 VH409557-4 VH420786-1
