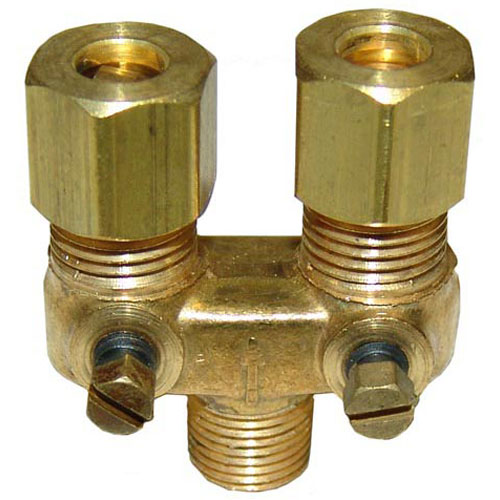

Garland GL1510402 Dual Pilot Adjustment Valve 1/8" MPT X 3/16" CCT

SKU: GL1510402 1-GL1510402 Brand:
Garland
Availability:
Out of Stock
(0)
$61.66 Price reduced from $80.08
Save $18.42
Have a Question? +1 (866) 863-0907

Specifications:

  • Dual Pilot Adjustment Valve
  • [ 1/8" Mpt X 3/16" Cct ] [Width 1.25"],
  • [ Comes With Twin 3/16" Cct ]
  • American Range, Royal Range
  • Bakers Pride Broiler Series: 50, Ch, Xx, Sgbr
  • Imperial Broiler Series: Eba, Gd, Icb, Irb.
  • Grill Series: Imga.
  • Range Series: Icra, Ispa.
  • Roaster Series: Ipr, Ipra.
  • Rankin-Deluxe Broiler Series: Drb.
  • Southbend Oven Series 400
  • Us Range Broiler Bbq-48, C-Hds-A(24,36,48).
  • Gxc(24,36,48), Gxr(30,36,48,60) Series:Performer, Rg-Hds-A.
  • Wolf Broiler Cmss, Fcb, Scb.
  • Range Ch, Chss.

Description

The Garland GL1510402 Dual Pilot Adjustment Valve 1/8" MPT X 3/16" CCT regulates the flow of gas to a pilot burner by rotating an internal adjustable mechanism that opens or closes the passage to adjust the pilot gas flow to the required amount. Gas passes through the 1/8-inch male pipe thread inlet and out the 3/16" compression connection to the pilot assembly. It is mounted in the line of gas supply of compatible cooking equipment where a small, straight pilot connection is required.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 1.2 in
  • Height: 1.5 in
  • Width: 0.7 in

AMERICAN RANGE:

10432 A29301 AMRA29301

APW WYOTT:

2065641

ATOSA:

301030007

BAKERS PRIDE:

2V-R3020A BKPR3020A R3020A R3020X

COMSTOCK CASTLE:

25016

GARLAND:

1150099 1510402 153844 GL1150099

HOBART:

00-409557-00004 00-420786-00001 109557-4 120786-1 19190 409557-00004 409557-4 420786-00001 420786-1 6614 719190 806614

IMPERIAL:

1003 1003-1 1608 IMP1608

RANDELL:

CB-09 CB09 DRB-12 GT-10 RB-12 RDCB-09 RDCM-04 RDGM-14 RDHP-16A RDHP-E-C-16A RDLR-08A SP-14 SSPR-11 SUHP-10 SUHP-E-C-10 TB-12 TB-3-12 TB3-12

RANKIN DELUX:

CB-09 CB09 DRB-12 GT-10 RANRB12 RANTB12 RB-12 RB12 RDCB-09 RDCM-04 RDGM-14 RDHP-16A RDHP-E-C-16A RDLR-08A SP-14 SSPR-11 SUHP-10 SUHP-E-C-10 TB-12 TB-3-12 TB12 TB3-12

ROYAL RANGE:

053-AP6-1 0531-AP6-1 1211 53AP6-1 ROY053-AP6-1 ROY53AP6-1

SOUTHBEND:

1166004 SOU1166004

VULCAN HART:

00-409557-00004 00-420786-00001 00-719190 109557-4 120786-1 19190 409557-00004 409557-4 420786-00001 420786-1 6614 719190 806614 VH109557-4 VH409557-4 VH420786-1

Step1: Turn off gas supply and disconnect power to the appliance.

Step2: Locate and remove the faulty pilot valve using appropriate tools.

Step3: Apply thread sealant to the new valve’s threads.

Step4: Install and tighten securely without over-torquing.

Step5: Reconnect tubing.

Step6: Restore gas supply and check for leaks using a soap solution.

Step7: Test ignition to ensure proper operation.

  • What maintenance is required for the Garland GL1510402 Pilot Valve?

    Inspect the pilot valve regularly for gas leaks, corrosion, and secure threaded connections. Ensure the valve operates smoothly without sticking or delay. Clean surrounding grease buildup and verify proper pilot flame stability during routine equipment checks for safe and efficient performance.

  • What are common issues with the Garland GL1510402 Pilot Valve?

    • Gas leakage at fittings or seals causing unsafe operation.
    • Clogged orifice leading to weak or unstable pilot flame.
    • Ignition failure or intermittent lighting due to debris or wear.
    • Valve sticking or corrosion affecting smooth gas control.
