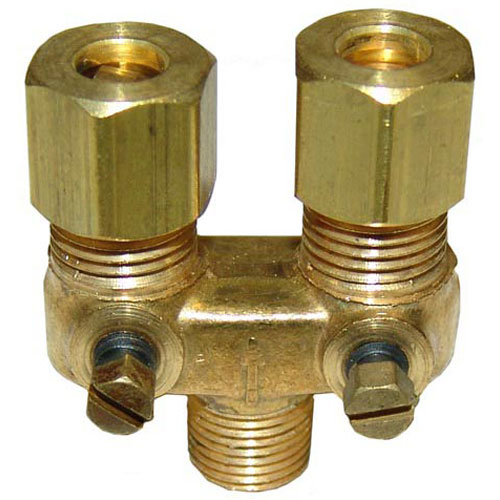

Garland 1510402 Dual Pilot Adjustment Valve 1/8" MPT X 3/16" CCT

SKU: 1510402 1-1510402 Brand:
Garland
Availability:
Out of Stock
(0)
$61.66 Price reduced from $80.08
Save $18.42
Have a Question? +1 (866) 863-0907

Specifications:

  • Dual Pilot Adjustment Valve
  • [ 1/8" Mpt X 3/16" Cct ] [Width 1.25"],
  • [ Comes With Twin 3/16" Cct ]
  • American Range, Royal Range
  • Bakers Pride Broiler Series: 50, Ch, Xx, Sgbr
  • Imperial Broiler Series: Eba, Gd, Icb, Irb.
  • Grill Series: Imga.
  • Range Series: Icra, Ispa.
  • Roaster Series: Ipr, Ipra.
  • Rankin-Deluxe Broiler Series: Drb.
  • Southbend Oven Series 400
  • Us Range Broiler Bbq-48, C-Hds-A(24,36,48).
  • Gxc(24,36,48), Gxr(30,36,48,60) Series:Performer, Rg-Hds-A.
  • Wolf Broiler Cmss, Fcb, Scb.
  • Range Ch, Chss.

Description

The Garland 1510402 Dual Pilot Adjustment Valve 1/8" MPT X 3/16" CCT regulates the flow of gas to the pilot burner through an internal valve mechanism that opens on stimulation and closes to stop flow. The pilot circuit needs ignition which is provided by gas flowing into the 1/8 MPT inlet and 3/16 CC outlet of the valve to provide a small, continuous pilot flame. This pilot valve is installed in the gas line near the pilot burner assembly and it is fastened with threaded fittings and aligned with gas control components.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 1.2 in
  • Height: 1.5 in
  • Width: 0.7 in

AMERICAN RANGE:

10432 A29301 AMRA29301

APW WYOTT:

2065641

ATOSA:

301030007

BAKERS PRIDE:

2V-R3020A BKPR3020A R3020A R3020X

COMSTOCK CASTLE:

25016

GARLAND:

1150099 153844 GL1150099 GL1510402

HOBART:

00-409557-00004 00-420786-00001 109557-4 120786-1 19190 409557-00004 409557-4 420786-00001 420786-1 6614 719190 806614

IMPERIAL:

1003 1003-1 1608 IMP1608

RANDELL:

CB-09 CB09 DRB-12 GT-10 RB-12 RDCB-09 RDCM-04 RDGM-14 RDHP-16A RDHP-E-C-16A RDLR-08A SP-14 SSPR-11 SUHP-10 SUHP-E-C-10 TB-12 TB-3-12 TB3-12

RANKIN DELUX:

CB-09 CB09 DRB-12 GT-10 RANRB12 RANTB12 RB-12 RB12 RDCB-09 RDCM-04 RDGM-14 RDHP-16A RDHP-E-C-16A RDLR-08A SP-14 SSPR-11 SUHP-10 SUHP-E-C-10 TB-12 TB-3-12 TB12 TB3-12

ROYAL RANGE:

053-AP6-1 0531-AP6-1 1211 53AP6-1 ROY053-AP6-1 ROY53AP6-1

SOUTHBEND:

1166004 SOU1166004

VULCAN HART:

00-409557-00004 00-420786-00001 00-719190 109557-4 120786-1 19190 409557-00004 409557-4 420786-00001 420786-1 6614 719190 806614 VH109557-4 VH409557-4 VH420786-1

Step1: Shut off the gas supply completely and allow the appliance to cool before working.

Step2: Remove the old pilot valve from the burner assembly, keeping track of orientation.

Step3: Install the new valve in the same position, securing all fittings tightly to prevent leaks.

Step4: Turn on the gas supply slowly and check all connections using a soap solution.

Step5: Ignite the pilot to verify proper operation and ensure it maintains a steady flame.

  • What maintenance is required for the Garland 1510402 Pilot Valve?

    Inspect the pilot valve in the cooking equipment for proper gas flow and ignition. Keep it clean and free of grease buildup. Check connections regularly and shut off the gas supply before performing maintenance for safety.

  • What are the common issues with the Garland 1510402 Pilot Valve?

    • Pilot flame failing to stay lit consistently.
    • Delayed ignition when starting the unit.
    • Weak or unstable pilot flame.
    • Gas flow irregularities affecting burner operation.
    • Valve not opening properly during use.
