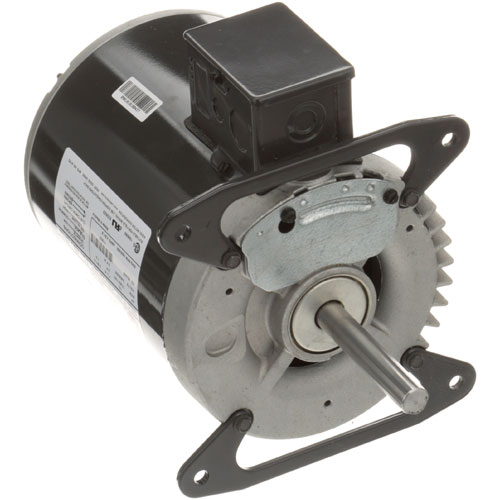

Duke 153034SED Convection Oven 2-Speed Motor 1/2-1/4HP 200-240V 50/60Hz

SKU: 153034SED 1-153034SED Brand:
Duke
Availability:
Out of Stock
(0)
$455.90 Price reduced from $914.00
Save $458.10
Have a Question? +1 (866) 863-0907

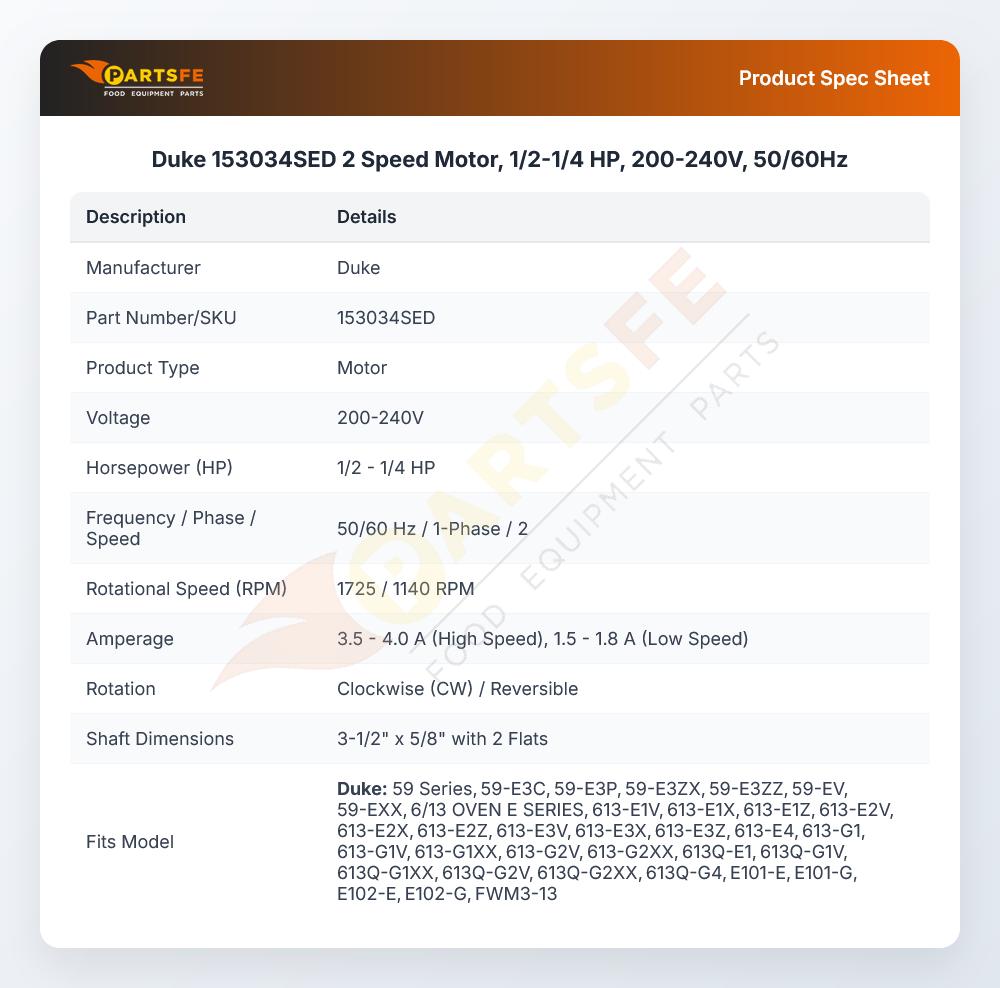

Specifications:

  • [ 200-240V, ] [ 1/2-1/4 Hp,][ 50/60 Hz ] [1Ph ] 2 Speed.
  • [1725/1140 RPM ] [3.5-4.0/1.5-1.8 A ] [Cw/Reversible
  • Rotation ] [3-1/2" X 5/8" Shaft W/ 2 Flats ]
  • If Using An Emerson Motor On A Garland Oven, The Two
  • Gray Wires May Not Be Needed. Cap Them Individually With
  • Wire Nuts. Ground Wire To Motor Case May Need To Be
  • Added.
  • For Garland Oem Motor 168702 Use #68-1259
  • Blower Wheel 9-7/8" Dia X 2-1/2" Deep X 5/8" Bore # 26-1328
  • Or Gen Use Blower Wheel 10" Dia. X 2" Deep X 5/8" Bore,
  • # 26-4052
  • Duke Oven Series: E

Description

The Duke 153034SED 2-Speed Motor 1/2-1/4HP is a drive unit used to operate the airflow system of a compatible convection oven. It operates by spinning the fan assembly at adjustable speeds, and circulating hot air throughout the cooking chamber to use in the even distribution of heat. The motor runs on a 200-240V 50/60Hz electrical power supply and is mounted in the fan and blower unit of the oven. Regulated airflow is used to maintain even cooking temperature ensuring consistent baking and roasting to enhance heat transfer efficiency.

Dimensions:

  • Weight: 25.5 lbs
  • Length: 16 in
  • Height: 10 in
  • Width: 8 in

DUKE:

153034 153036 153036SED 155828 DUK155828
