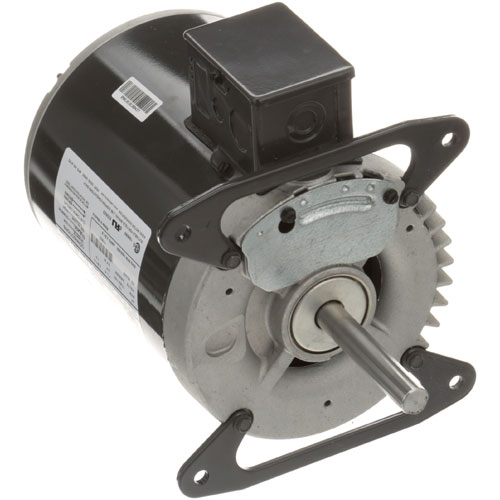

Duke 153036SED Convection Oven 2-Speed Motor 1/2-1/4HP 200-240V 50/60Hz

SKU: 153036SED 1-153036SED Brand:
Duke
Availability:
Out of Stock
(0)
$455.90 Price reduced from $914.00
Save $458.10
Have a Question? +1 (866) 863-0907

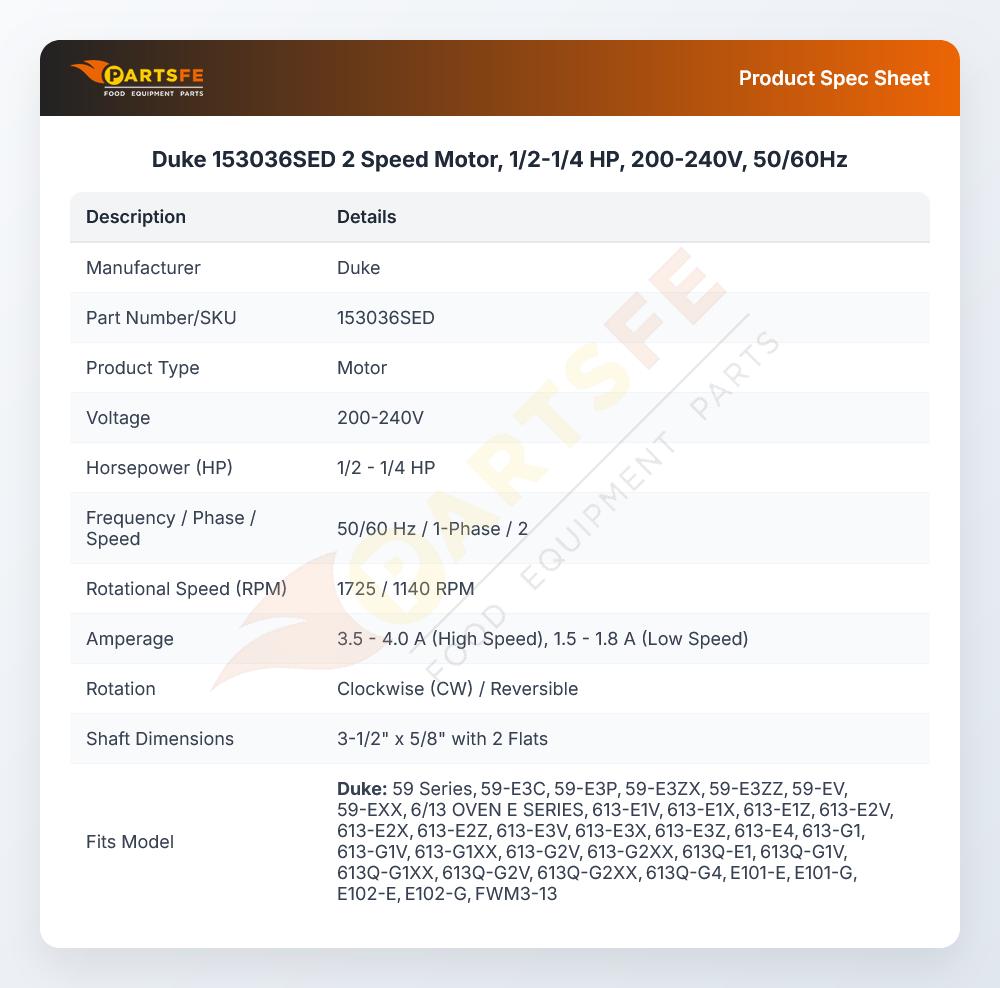

Specifications:

  • [ 200-240V, ] [ 1/2-1/4 Hp,][ 50/60 Hz ] [1Ph ] 2 Speed.
  • [1725/1140 RPM ] [3.5-4.0/1.5-1.8 A ] [Cw/Reversible
  • Rotation ] [3-1/2" X 5/8" Shaft W/ 2 Flats ]
  • If Using An Emerson Motor On A Garland Oven, The Two
  • Gray Wires May Not Be Needed. Cap Them Individually With
  • Wire Nuts. Ground Wire To Motor Case May Need To Be
  • Added.
  • For Garland Oem Motor 168702 Use #68-1259
  • Blower Wheel 9-7/8" Dia X 2-1/2" Deep X 5/8" Bore # 26-1328
  • Or Gen Use Blower Wheel 10" Dia. X 2" Deep X 5/8" Bore,
  • # 26-4052
  • Duke Oven Series: E

Description

The Duke 153036SED Convection Oven 2-Speed Motor 1/2-1/4 HP 200-240 V 50/60 Hz operates the convection fan by transforming electrical energy into rotational energy at two adjustable speed levels. It works by switching between high, and low horsepower outputs to control the intensity of airflow allowing the circulation of heated air in the cavity to be controlled. It is mounted in the convection oven housing, where it is connected to the fan assembly, and internal electrical system to move air during cooking processes to support maintaining a uniform distribution of heat throughout the chamber.

Dimensions:

  • Weight: 25.5 lbs
  • Length: 16 in
  • Height: 10 in
  • Width: 8 in

DUKE:

153034 153034SED 153036 155828 DUK155828
