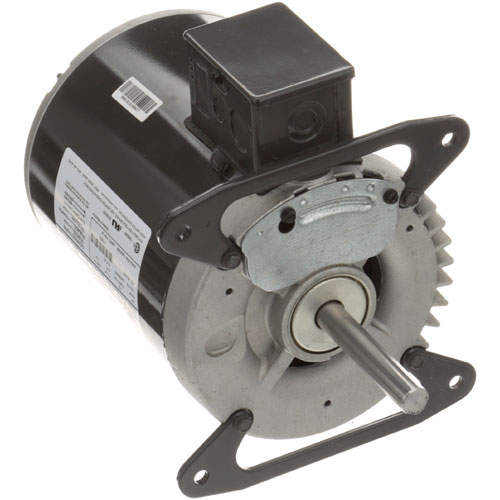

Duke 153036 Oven Motor 2 Speed 1/4HP 200-240V 50/60Hz

SKU: 153036 1-153036 Brand:
Duke
Availability:
Out of Stock
(0)
$455.90 Price reduced from $914.00
Save $458.10
Have a Question? +1 (866) 863-0907

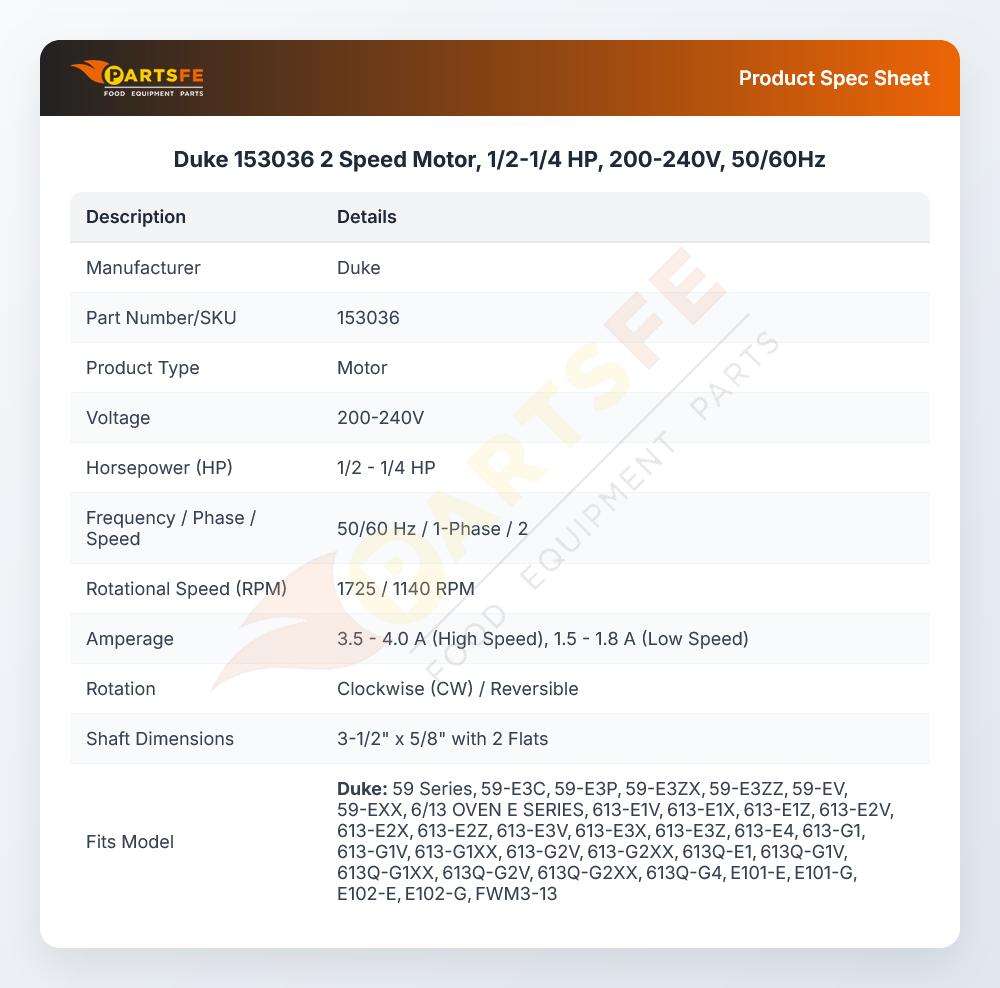

Specifications:

  • [ 200-240V, ] [ 1/2-1/4 Hp,][ 50/60 Hz ] [1Ph ] 2 Speed.
  • [1725/1140 RPM ] [3.5-4.0/1.5-1.8 A ] [Cw/Reversible
  • Rotation ] [3-1/2" X 5/8" Shaft W/ 2 Flats ]
  • If Using An Emerson Motor On A Garland Oven, The Two
  • Gray Wires May Not Be Needed. Cap Them Individually With
  • Wire Nuts. Ground Wire To Motor Case May Need To Be
  • Added.
  • For Garland Oem Motor 168702 Use #68-1259
  • Blower Wheel 9-7/8" Dia X 2-1/2" Deep X 5/8" Bore # 26-1328
  • Or Gen Use Blower Wheel 10" Dia. X 2" Deep X 5/8" Bore,
  • # 26-4052
  • Duke Oven Series: E

Description

The Duke Manufacturing 153036 Motor is the primary element of the air circulation drive in a compatible oven. It has a rated power of 1/4 horsepower, and is rated at a 200-240V, 50/60Hz power supply to transform electrical energy into mechanical rotation to make the blower wheel rotate. The 2-speed nature of the motor allows for the two-speed control of airflow to assist in the different cooking requirements and the quantity of heat to be circulated. This forced air circulation removes hot and cold spots, improves the efficiency of cooking, and increases faster heat recovery when doors are opened.

Dimensions:

  • Weight: 25.5 lbs
  • Length: 16 in
  • Height: 10 in
  • Width: 8 in

DUKE:

153034 153034SED 153036SED 155828 DUK155828

Step1: Turn off power and disconnect the appliance.

Step2: Remove any covers or panels obstructing the motor.

Step3: Detach the old motor, noting wiring and mounting positions.

Step4: Mount the new motor securely and reconnect wiring.

Step5: Restore power and test motor at both speeds.

Step6: Check for unusual noise or vibration before full operation.

  • What maintenance is required for the Duke 153036 Motor?

    Check the motor for proper speed switching and smooth operation. Keep it clean and ensure airflow is unobstructed. Inspect wiring connections and disconnect power before servicing to maintain secure equipment performance.

  • What are the common issues with the Duke 153036 Motor?

    • Motor stuck at one speed setting.
    • Inconsistent speed changes during operation.
    • Overheating while running.
    • Electrical issues affecting speed control.
    • Noise during motor operation.
