main product photo

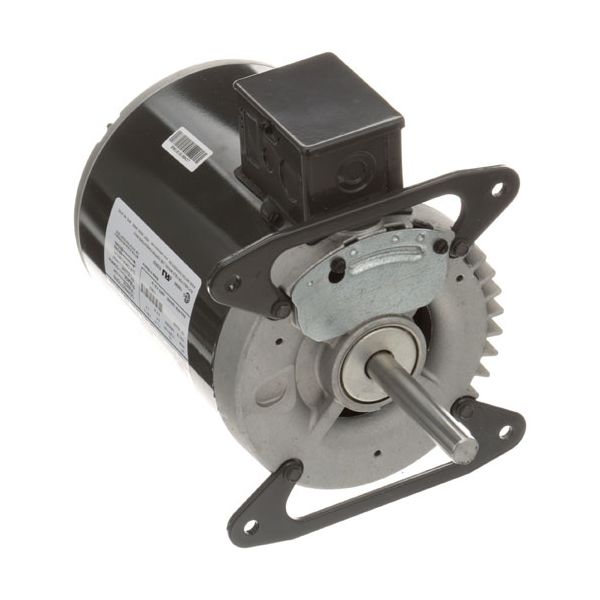

Duke 153036 Oven Motor 2 Speed 1/4HP 200-240V 50/60Hz

Be the first to review this product
Special Price $448.04 Regular Price $914.00
In stock
SKU
153036
Add to Wish List
Electrical & Hardware, Motors & Pumps,
Manufacturer:
The Duke Manufacturing 153036 Motor is the primary element of the air circulation drive in a compatible oven. It has a rated power of 1/4 horsepower, and is rated at a 200-240V, 50/60Hz power supply to transform electrical energy into mechanical rotation to make the blower wheel rotate. The 2-speed nature of the motor allows for the two-speed control of airflow to assist in the different cooking requirements and the quantity of heat to be circulated. This forced air circulation removes hot and cold spots, improves the efficiency of cooking, and increases faster heat recovery when doors are opened.

Dimensions

  • Length: 16 In
  • Width: 8 In
  • Height: 10 In
  • Weight: 25.5 lbs
https://partsfe.com/media/catalog/product/d/u/duke-153036-2-speed-motor-1-2-1-4-hp-200-240v-50-60hz-81695-2.jpg

Product Notes

  • [ 200-240V, ] [ 1/2-1/4 Hp,][ 50/60 Hz ] [1Ph ] 2 Speed.
  • [1725/1140 RPM ] [3.5-4.0/1.5-1.8 A ] [Cw/Reversible
  • Rotation ] [3-1/2" X 5/8" Shaft W/ 2 Flats ]
  • If Using An Emerson Motor On A Garland Oven, The Two
  • Gray Wires May Not Be Needed. Cap Them Individually With
  • Wire Nuts. Ground Wire To Motor Case May Need To Be
  • Added.
  • For Garland Oem Motor 168702 Use #68-1259
  • Blower Wheel 9-7/8" Dia X 2-1/2" Deep X 5/8" Bore # 26-1328
  • Or Gen Use Blower Wheel 10" Dia. X 2" Deep X 5/8" Bore,
  • # 26-4052
  • Duke Oven Series: E
