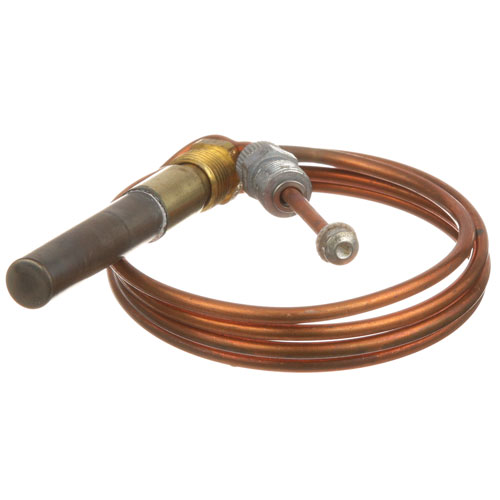

Dean 1897 Coaxial Thermopile 250-750 MV 36"

SKU: 1897 1-1897 Brand:
Dean
Availability:
In Stock
(0)
$41.68 Price reduced from $52.72
Save $11.04
Have a Question? +1 (866) 863-0907

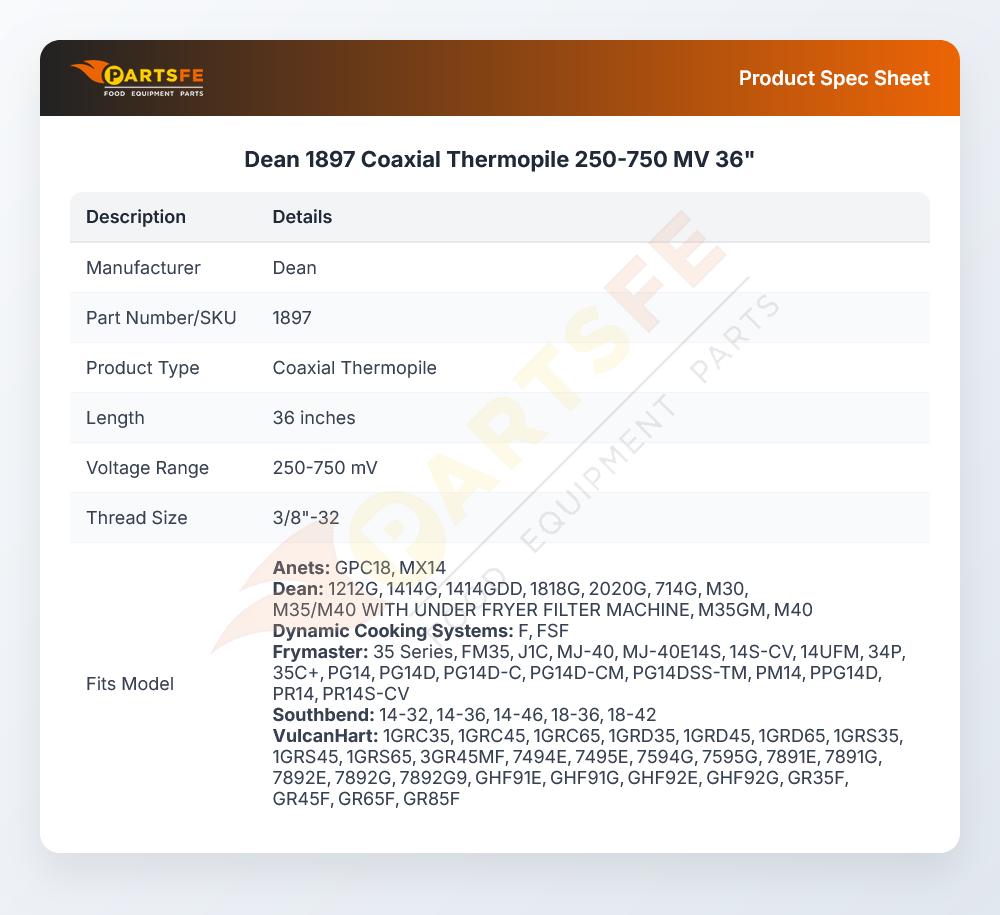

Specifications:

  • 36" Coaxial Thermopile, 250-750 Mv
  • Coaxial Thermopile Threads = 3/8"-32.
  • Robertshaw 1951-53F
  • Vulcan 1Grc35, 1Grc45, 1Grc65, 1Grd45, 1Grd65, 1Grs35,
  • 1Grs45, 1Grs65, Gr35F, Gr45F, Gr65F, Gr85F, Grc35F, Grc45F,
  • Grc65F, Grc85F, Grd35F, Grd45F, Grd65F, Grd85F, Grs35F,
  • Grs45F, Grs65F, Grs85F
  • Wolf Fryer Wtf-42, Ss-Wtf-42
  • Grill Tmm (36, 37, 38)

Description

The Dean 1897 Coaxial Thermopile 250-750 MV 36” is a high-performance thermopile for cooking appliances like fryers and grill. It works at 250-750 mV and is provided with 3/8”-32 threads for its screwing in. It provides accurate flame detection and safety for appliances such as Wolf Fryer WTF-42. This thermopile improves performance and reliability by converting heat into electricity, providing steady performance, and durability in extreme conditions. Ideal for kitchens.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 3.63 in
  • Height: 1.13 in
  • Width: 2.75 in

ANETS:

P8905-38

DEAN:

810-0162 8100162

DYNAMIC COOKING SYSTEMS:

13257 DCS13257

FRYMASTER:

810-0162 8100162 FM1897 FM810-0162 FM8100162

GARLAND:

1093418 1292900 1577001 F810-0162 F810-0617 GL1093418 GL1292900 GL1577001 GLF810-0162

HOBART:

00-348358-00001 00-410839-00001 00-711335 110839-1 11335 348358-1 410839-00001 410839-1 711335

KEATING:

002567 2567 H00340H KEA2567 KEAH00340H

PITCO:

P5047541 P5047542 P8905-38 PTP5047541 PTP5047542

SOUTHBEND:

1054300 1056400 SOU1054300 SOU1056400

U-LINE:

1951-536 1951-53F

VULCAN HART:

00-410839-00001 00-711335 110839-1 11335 410839-00001 410839-1 711335 VH110839-1 VH410839-1

Step1: Turn off the gas supply and allow the fryer to cool completely.

Step2: Remove the access panel and locate the existing thermopile.

Step3: Disconnect the thermopile from the gas valve and pilot assembly.

Step4: Install the new Coaxial Thermopile in the same position.

Step5: Secure the connections and ensure the sensor is properly aligned with the pilot flame.

Step6: Restore the gas supply and test for proper pilot and burner operation.

  • What maintenance is required for the Dean 1897 Coaxial Thermopile?

    A thermopile should be kept clean from carbon buildup to maintain stable millivolt output. Inspect wiring and coaxial connections for looseness or corrosion. Ensure proper pilot flame contact and replace if output becomes inconsistent for better operation.

  • What are common issues with the Dean 1897 Coaxial Thermopile?

    • Weak millivolt output causing ignition failure.
    • Corroded or loose coaxial connections.
    • Poor pilot flame alignment reducing heat transfer.
    • Intermittent signal loss or open circuit faults.
    • Carbon buildup on thermopile tip affecting readings.
