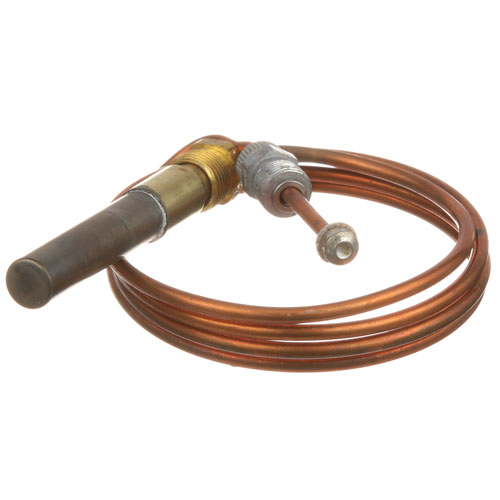

Vulcan Hart 00-410839-00001 Fryer Thermopile 36" Coaxial 250-750 mV

SKU: 00-410839-00001 1-00-410839-00001 Brand:
Vulcan Hart
Availability:
In Stock
(1)
$41.68 Price reduced from $52.72
Save $11.04
Have a Question? +1 (866) 863-0907

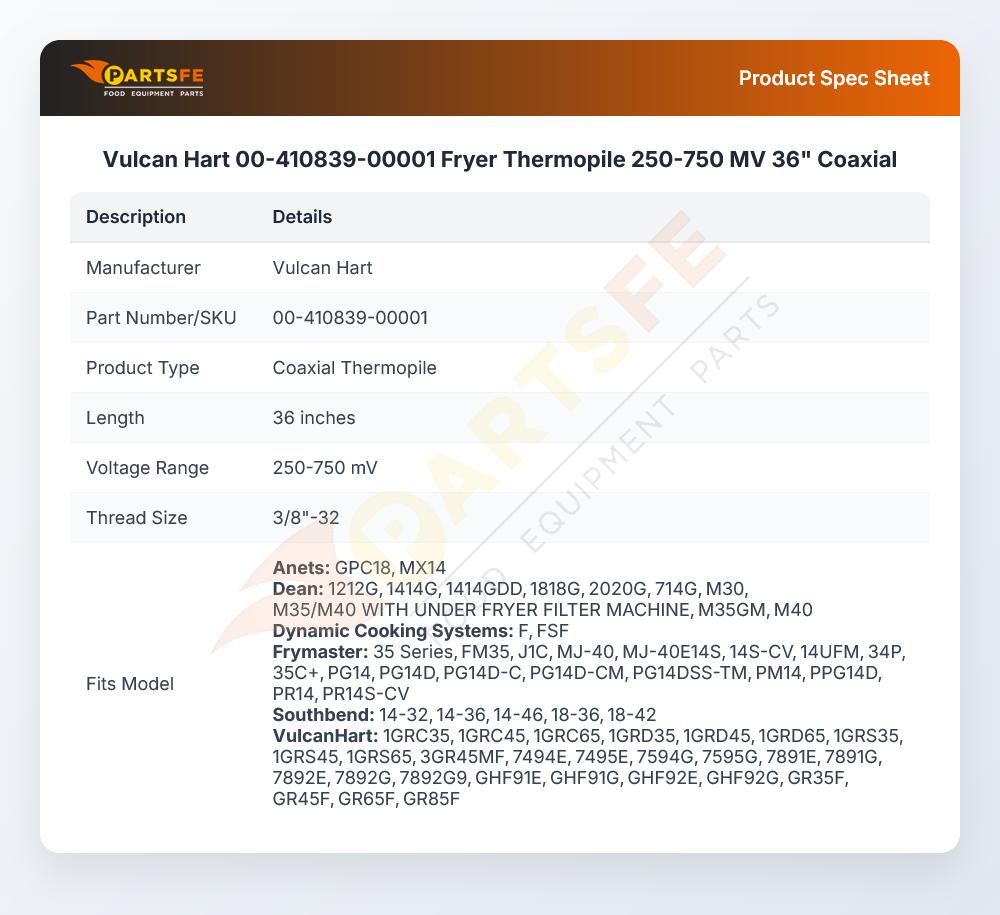

Specifications:

  • 36" Coaxial Thermopile, 250-750 Mv
  • Coaxial Thermopile Threads = 3/8"-32.
  • Robertshaw 1951-53F
  • Vulcan 1Grc35, 1Grc45, 1Grc65, 1Grd45, 1Grd65, 1Grs35,
  • 1Grs45, 1Grs65, Gr35F, Gr45F, Gr65F, Gr85F, Grc35F, Grc45F,
  • Grc65F, Grc85F, Grd35F, Grd45F, Grd65F, Grd85F, Grs35F,
  • Grs45F, Grs65F, Grs85F
  • Wolf Fryer Wtf-42, Ss-Wtf-42
  • Grill Tmm (36, 37, 38)

Description

The Vulcan Hart 00-410839-00001 Thermopile is used in kitchen equipment. It works with the voltage of 250-750 mV and has ignition and safety functions. The thermopile has a 36” coaxial extension, thus enabling effective heat production and energy conversion. It assists in sustaining the flame operation and guarantees the secure performance of fryers. This thermopile is very important for avoiding burner failure, saving energy and increasing the useful life of cooking appliances. Especially suitable for use in commercial kitchens where it guarantees high performance and minimum time out of service.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 3.63 in
  • Height: 1.13 in
  • Width: 2.75 in

ANETS:

P8905-38

DEAN:

1897 810-0162 8100162

DYNAMIC COOKING SYSTEMS:

13257 DCS13257

FRYMASTER:

1897 810-0162 8100162 FM1897 FM810-0162 FM8100162

GARLAND:

1093418 1292900 1577001 1897 F810-0162 F810-0617 GL1093418 GL1292900 GL1577001 GLF810-0162

HOBART:

00-348358-00001 00-711335 110839-1 11335 348358-1 410839-00001 410839-1 711335

KEATING:

002567 2567 H00340H KEA2567 KEAH00340H

PITCO:

P5047541 P5047542 P8905-38 PTP5047541 PTP5047542

SOUTHBEND:

1054300 1056400 SOU1054300 SOU1056400

U-LINE:

1951-536 1951-53F

VULCAN HART:

00-711335 110839-1 11335 410839-00001 410839-1 711335 VH110839-1 VH410839-1

Step1: Shut off gas and electrical supply, then allow fryer to cool completely, wear heat-resistant gloves.

Step2: Remove front access panel to reach thermopile and pilot assembly.

Step3: Disconnect existing thermopile leads, noting routing and connection points.

Step4: Install new thermopile and secure mounting in proper flame position.

Step5: Reconnect terminals firmly, ensuring no wire strain or heat contact.

Step6: Restore gas supply, light pilot, and check stable millivolt output and safe burner ignition.

  • What maintenance is required for the Vulcan Hart 00-410839-00001 Thermopile?

    Regularly inspect the fryer thermopile for dirt, grease buildup, or corrosion around connections and leads. Clean gently with a dry cloth and ensure proper flame contact for accurate voltage output. Check wiring integrity and secure connections to prevent signal loss. Always turn off gas supply before servicing for safety.

  • What are common issues with the Vulcan Hart 00-410839-00001 Thermopile?

    • Weak or inconsistent millivolt output.
    • Loose or damaged lead connections.
    • Poor flame contact affecting signal generation.
    • Intermittent ignition performance.
    • Complete failure due to internal damage.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Thermal Collector
    Germaine Arnaktauyok —

    Efficient and smooth functioning, great thermopile overall
